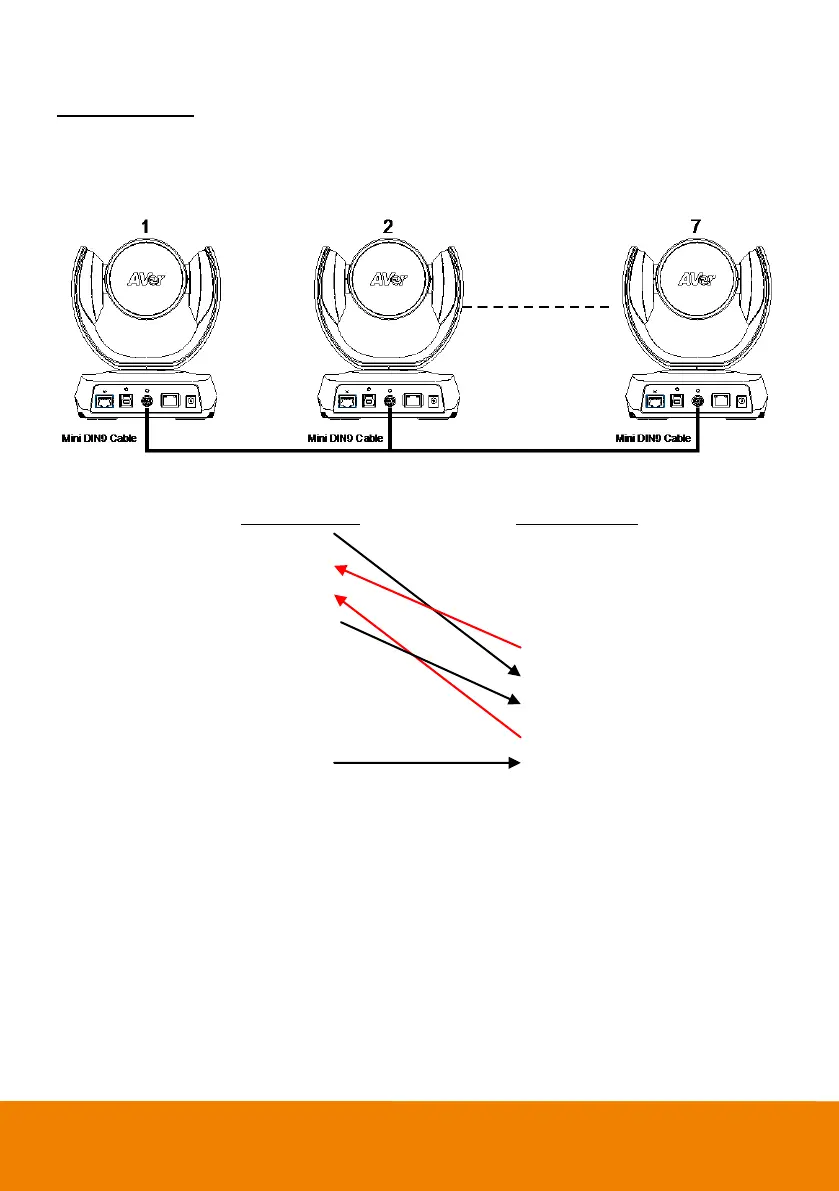

 Camera Cascade Connection
Direct Connection
If users don’t buy AVer RS232 adaptor cable, please refer to the pin connection shown below for
cascading cameras.
Total can connect up to 7 cameras.
Camera 1
(Mini DIN9)
Camera 2
(Mini DIN9)
1. DTR(IN)
1. DTR(IN)
2. DSR(IN)
2. DSR(IN)
3. TXD(IN)
3. TXD(IN)
6. RXD(IN)
6. RXD(IN)
7. DTR(OUT)
7. DTR(OUT)
4. DSR(OUT)
4. DSR(OUT)
8. TXD(OUT)
8. TXD(OUT)
9. RXD(OUT)
9. RXD(OUT)
SHIELD
SHIELD
