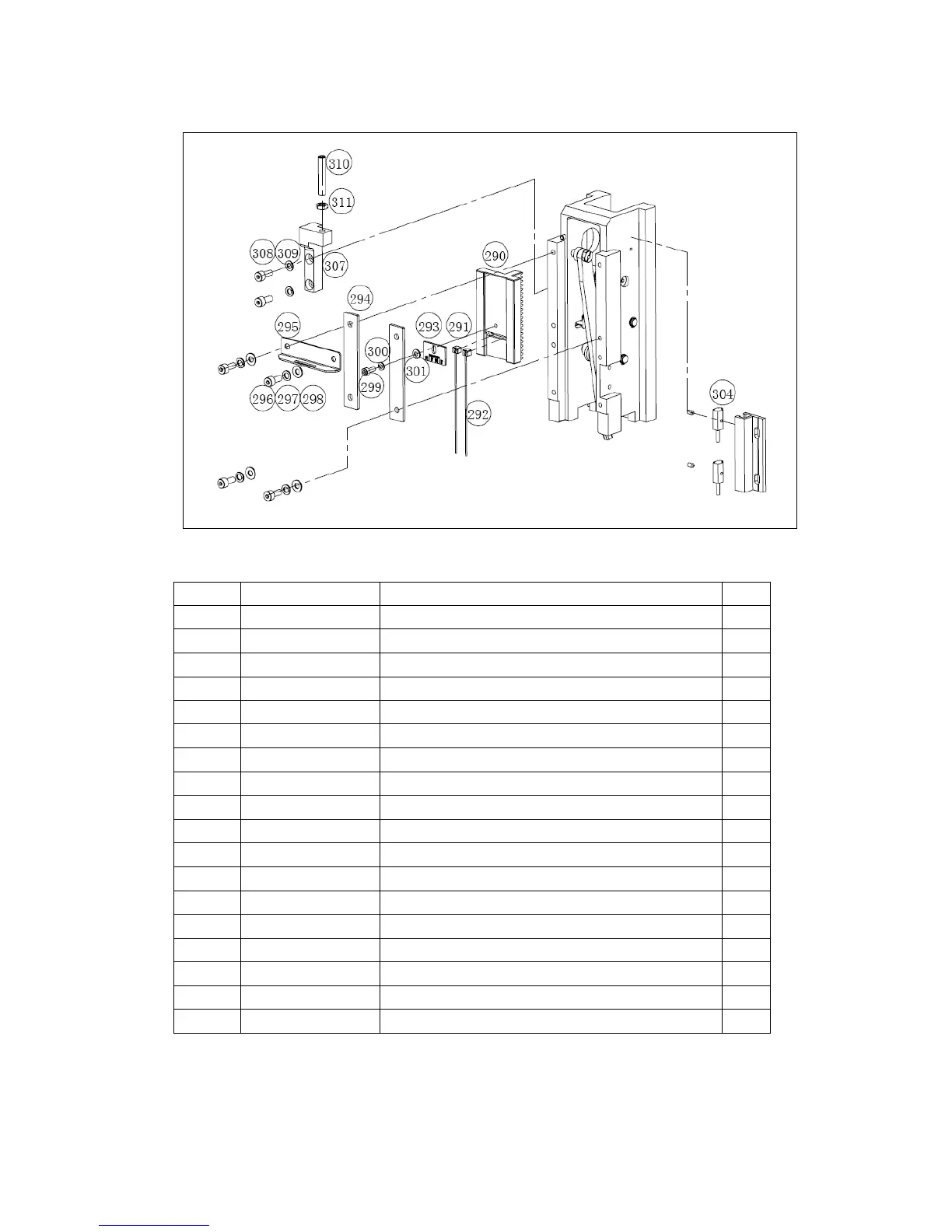

Hall Sensor Assy., Feed Stop Assy. and other Parts Exploded Illustration
Hall Sensor Assy., Feed Stop Assy. and other Parts Spare Part List
P/N Description Qty.
290 3-05-0033-01 Ejector Slide 1
291 3-05-0045-01 Slide, Ejector 2
292 7-60-2733-01 Rod, Ejector 2
293 3-05-0046-01 Plate, Scale 1
294 3-05-0081-01 Plate, Screw 2
295 3-05-0034-01 Entrance, Staple 1
296 140001001201 Screw, Hexagon Socket Cup Head, Black 4X10 4
297 140012012101 Washer, Black D4 4
298 140012008001 Lock Washer, Black D4 4
299 140001001002 Screw, Hexagon Socket Cup Head, Black 3X8 1
300 140012007901 Lock Washer, Black D3 1
301 140012012201 Washer, Black D3 1
304 630HAL0512 Hall sensor 2
307 3-05-0067-01 Stop, Feed 1
308 140001001201 Screw, Hexagon Socket Cup Head, Black 4X10 2
309 140012008001 Lock Washer, Black D4 2
310 140004028901 Trip Bolt, Hexagon Socket Cup Head, Black 5X30
1
311 140011005801 Nut, Hexagon, Black M5 1
