127
MODEL 1070 SST INDICATOR

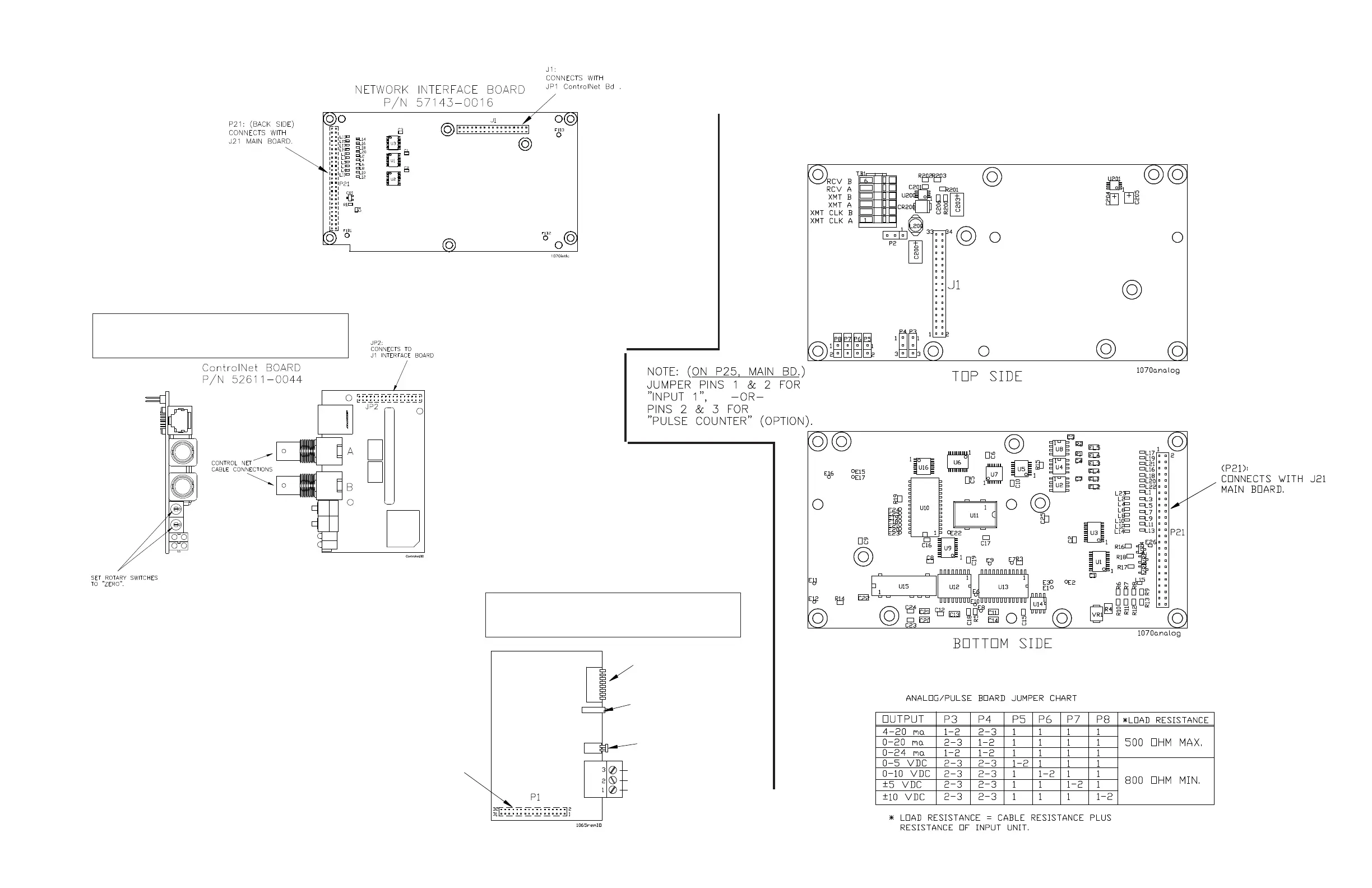

OPTIONAL PC BOARDS
Analog out / Pulse Counter in PC BOARD (OPTIONAL)
Field Install Kit p/n 57315-0018
(includes Analog out/Pulse Counter Board p/n 55977-0011 & mtg. hardware)
ControlNet Field Install Kit (optional) p/n 57315-0034
(includes Interface Board p/n 57143-0016 &
ControlNet Board p/n 52611-0044 & mtg. hardware)
Remote I/O Field Install Kit (optional) p/n 57315-0059
(includes Interface Board p/n 57143-0016 &
Remote I/O Board p/n 52611-0093 & mtg. hardware)
P/N 52611-0093
REMOTE I/O BOARD
CONFIGURATION
SWITCHES
INDICATORS
L.E.D.
RESISTOR
TERMINATION
SWITCH
LINE 2
SHIELD
LINE 1
CONNECTS TO J1
P1:
INTERFACE BOARD.
P/N 52611-0093
REMOTE I/O BOARD
To Next Page
