129

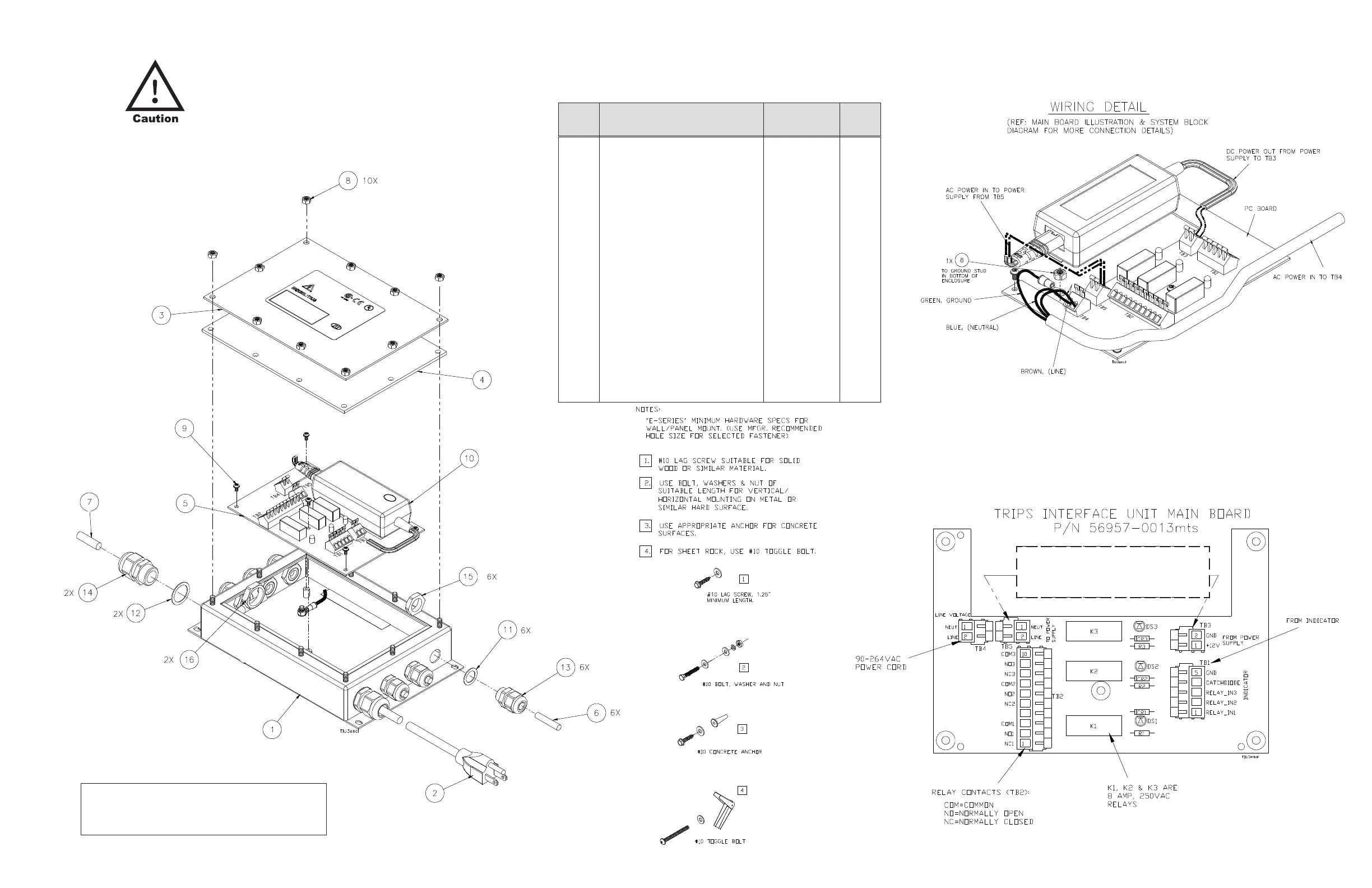

MODEL E1070 SST INDICATOR
TRIPS INTERFACE UNIT (TIU3)
(OPTIONAL)
& ASSEMBLY
NOTE TORQUE SPEC:
All M5 fasteners- 25.0 in. lbs., [3.0 N/m]
All M3.5 fasteners- 12.0 in. lbs., [1.35 N/m]
ITEM
NO. DESCRIPTION W-T P/N QTY
1 Enclosure
(stainless steel) 55909-0071 1
2 AC Power Cord
(USA) 49180-0512mts 1
AC Power Cord
(UK) 49180-0520mts 1
3 Cover
(stainless steel) 55907-0016 1
4 Gasket 57678-0019 1
5 Relay Control PC Board Assy 56957-0013mts 1
6 Neoprene Plug
(1/4” dia.) 27429-0014
7 Neoprene Plug
(8mm dia.) 27429-1087
8 Nut, Hex, M5 x 0.8 46574-0090 11
9 Screw/Washer Assy, M3.5 x 6mm 55511-0014 5
10 Power Supply,
100-240VAC, 12VDC
2.2A AWT25-000674 1
11 Neoprene Washer 26357-0020 6
12 Neoprene Washer 26357-0053 2
13 Strain Relief 55177-0027 6
14 Strain Relief 55177-0043 2
15 Lock Nut 55177-1025 6
16 Lock Nut 55177-1041 2
Risk of electrical shock.
• No user serviceable parts inside.
• Refer servicing to qualified service personnel.
• Completely disconnect power supply before removing cover.
POWER SUPPLY
P/N AWT25-000674
To Next Page
