Pro Tools | Carbon Back Panel Connections 16
Pro Tools | Carbon Back Panel Connections

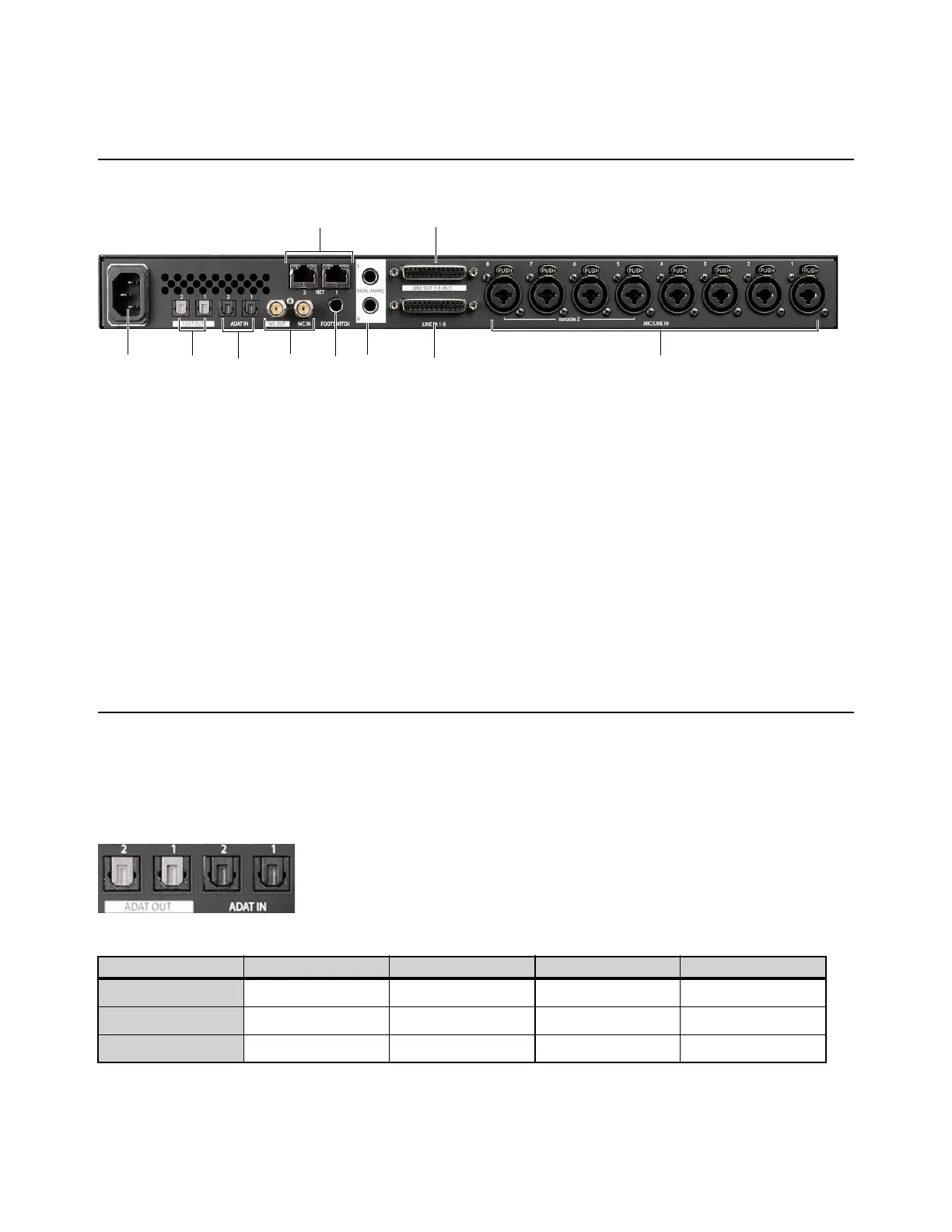

Pro Tools | Carbon Back Panel
1 IEC power connector.
2 ADAT Out 1 and 2.
3 ADAT In 1 and 2.
4 Word Clock In and Out (BNC).
5 Footswitch — the footswitch can be used for toggling talkback on and off (see Footswitch).
6 Ethernet 1 and 2 (AVB) — Two RJ45 Ethernet ports for control and AVB.
7 Main Monitor Out L and R (TRS balanced 1/4-inch).
8 Line In 1–8 (DB25).
9 Line Out 1–8 (DB25).
10 Mic/Line Inputs 1–8 (combined XLR/TRS 1/4-inch).
Digital I/O Connections
Optical ADAT
Pro Tools | Carbon provides two pairs of optical ADAT in and out ports for a total of 16 channels of I/O at 44.1/48 kHz, 8 channels
at 88.2/96 kHz, and 4 channels at 176.4/192 kHz. Audio channels are split across both ADAT ports at all sample rates.
Pro Tools | Carbon back panel
ADAT channel routing by port at different sample rates
Sample Rate ADAT Port 1 In ADAT Port 2 In ADAT Port 1 Out ADAT Port 2 Out
44.1/48 kHz 1–8 9–16 1–8 9–16
88.2/96 kHz 1–4 5–8 1–4 5–8
176.4/192 kHz 1–2 3–4 1–2 3–4
53
4
1
6
8
9
10
2 7
