Introduction
1
Introduction

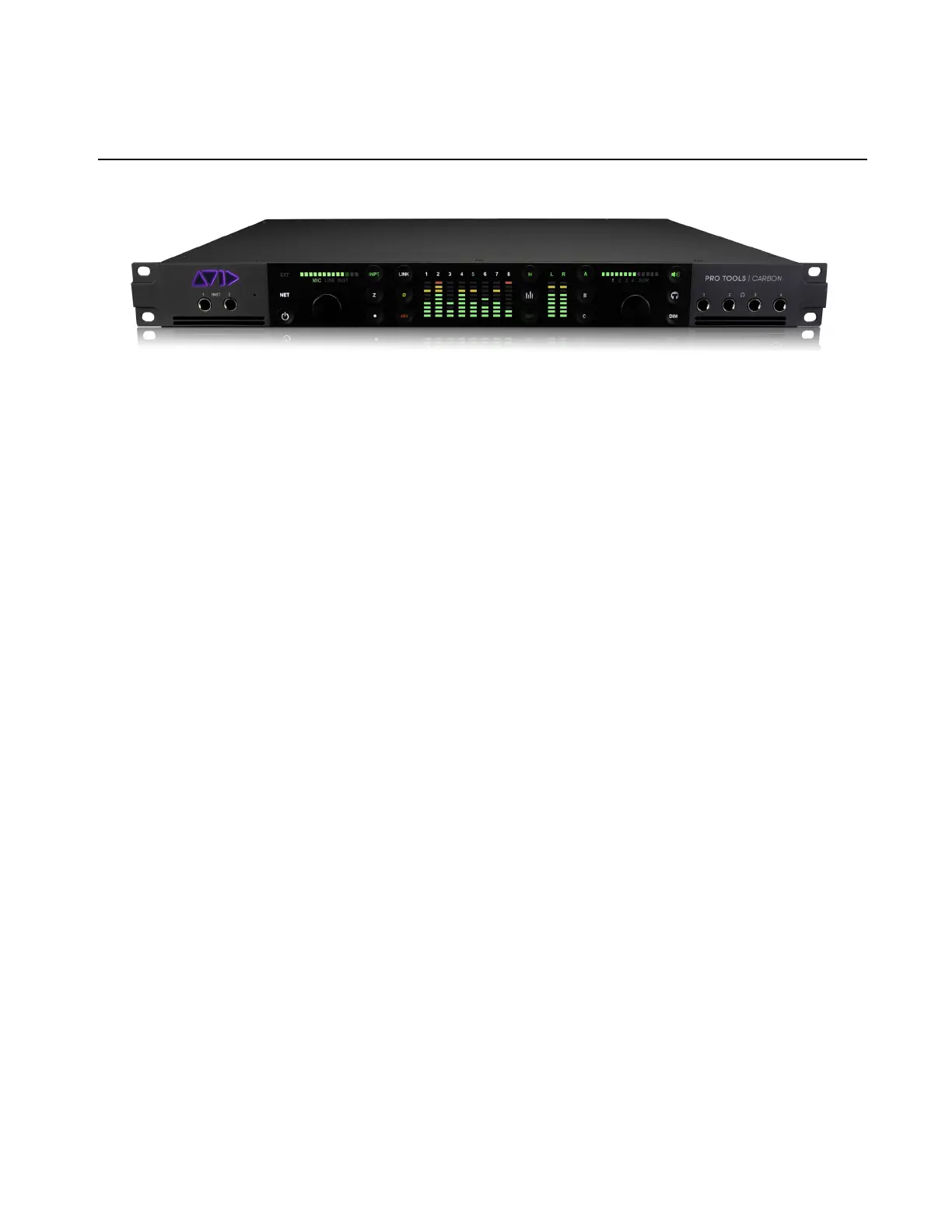

Pro Tools | Carbon
Welcome to Pro Tools | Carbon
™
by Avid
®
. Pro Tools | Carbon is a versatile multi-channel audio interface for use with Pro Tools
®
and Pro Tools | Ultimate
™
software or other Core Audio–compatible software. It provides exceptional AD/DA audio conversion with
8 mic/line inputs (combo XLR/TRS or DB25), 2 instrument inputs (TS), 8 line outputs (DB25), 2 dedicated outputs for stereo monitor-
ing (TRS), 4 independent headphone outputs, an integrated talkback mic, ADAT
™
I/O, Word Clock, AVB, and dedicated HDX DSP
for low-latency monitoring with AAX DSP plug-ins.
Pro Tools | Carbon Features
Pro Tools | Carbon provides:
• Up to 192 kHz/32-bit AD/DA conversion
• Low latency tracking workflows with on-board HDX DSP
• 8 analog preamp inputs with
• Variable Z (impedance) on INST inputs 1–2 (front panel)
• Variable Z (impedance) on MIC inputs 5–8 (back panel)
• 8 line inputs (DB25 or TRS 1/4-inch) with
• True preamp bypass option
• 18 channels digital-to-analog conversion
• 8 line outputs (DB25)
• Dedicated stereo (L–R) monitor outputs (TRS 1/4-inch)
• 4 stereo headphone outputs
• ADAT I/O
• 16 channels at 44.1/48 kHz
• 8 channels at 88.2/96 kHz
• 4 channels at 176.4/192 kHz
• 8 channel I/O metering
• Stereo monitor output metering
• Front panel control over monitor sets, headphone outputs, input channel settings, input and output metering, and talkback mic
• Integrated talkback mic
• Footswitch to toggle talkback on and off
• Gigabit AVB-capable Ethernet
