Figure 30: EX500 and Tray Dimensions
Installation Manual
P/N 600-00175-000 Rev 04 EX500, EX600, Tray & Panel Dimensions
- 91 -

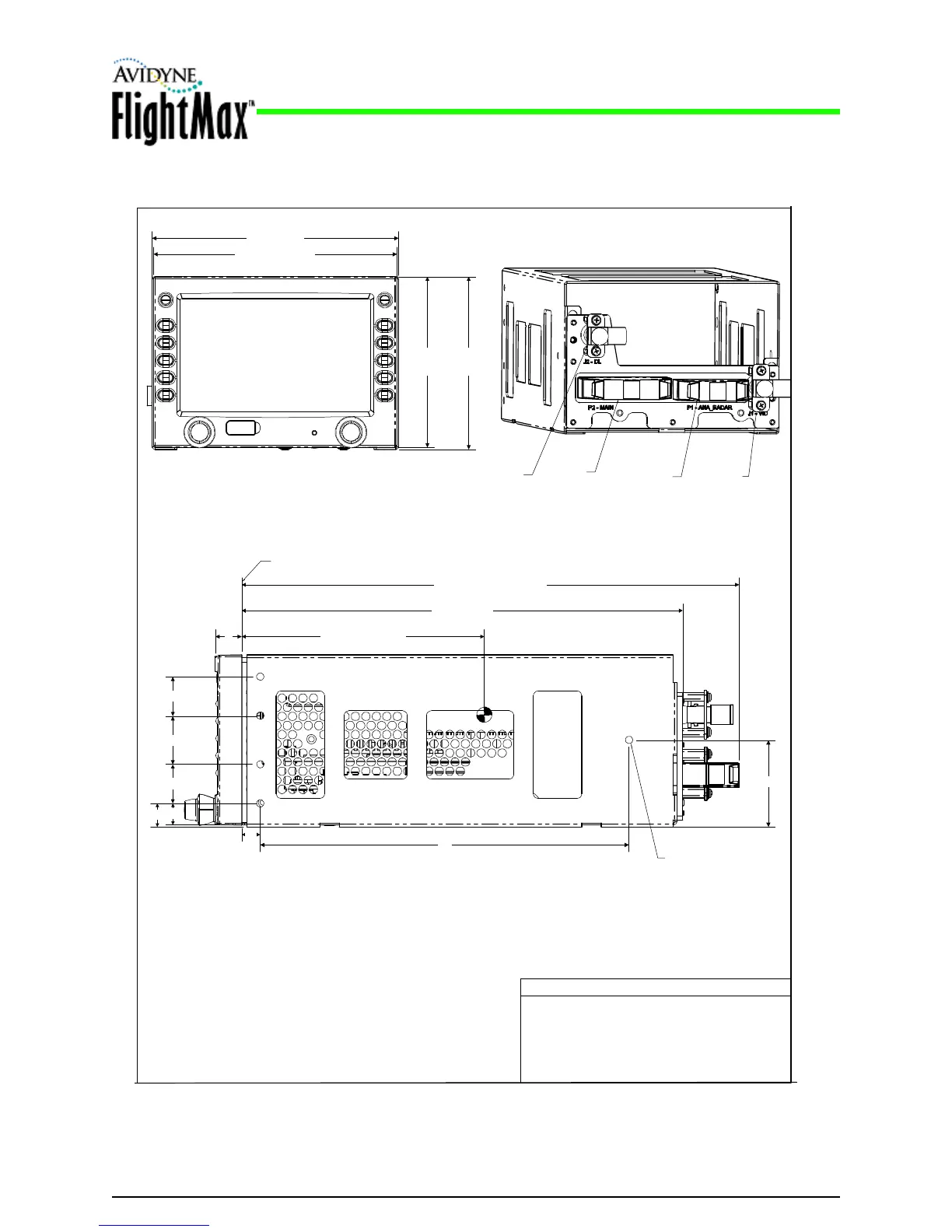

D.6 EX500 and Tray Dimensions
EX500 INSTALLATION MECHANICAL
MFD, TRAY AND PANEL CUT-OUT
DIMENSIONS
AVIDYNE CORPORATION
FRONT VIEW - MFD
IN TRAY REAR VIEW - TRAY
W/ CONNECTORS
ATTACHED
NOTES:
1. DIMENSIONS IN INCHES.
2 WEIGHT AND CENTER OF GRAVITY FOR MFD, TRAY, AND CONNECTORS.
SIDE VIEW - MFD IN
TRAY
.7 6.3 CENTER OF GRAVITY
12.8 TRAY + CONNECTOR DEPTH
11.4 TRAY DEPTH
.55
1.0
1.25
1.0
.48
9.5
AFT FACING
PLANE OF PANEL
COUNTERSUNK HOLES FOR
#6 FLATHEAD SCREWS
5 PLACES ON EACH SIDE OF TRAY
2.2
6.2 FACEPLACE WIDTH
4.35
FACEPLATE
HEIGHT
4.4
TRAY
HEIGHT
6.3 TRAY WIDTH
J2 - DATALINK
50 OHM COAX
P2 - MAIN
HDB-78
P1 - ANALOG RADAR
HDB-44
J1 - VIDEO INPUT
75 OHM COAX
(NOT SUPPORTED - SHOWN
FOR REFERENCE ONLY
.60
