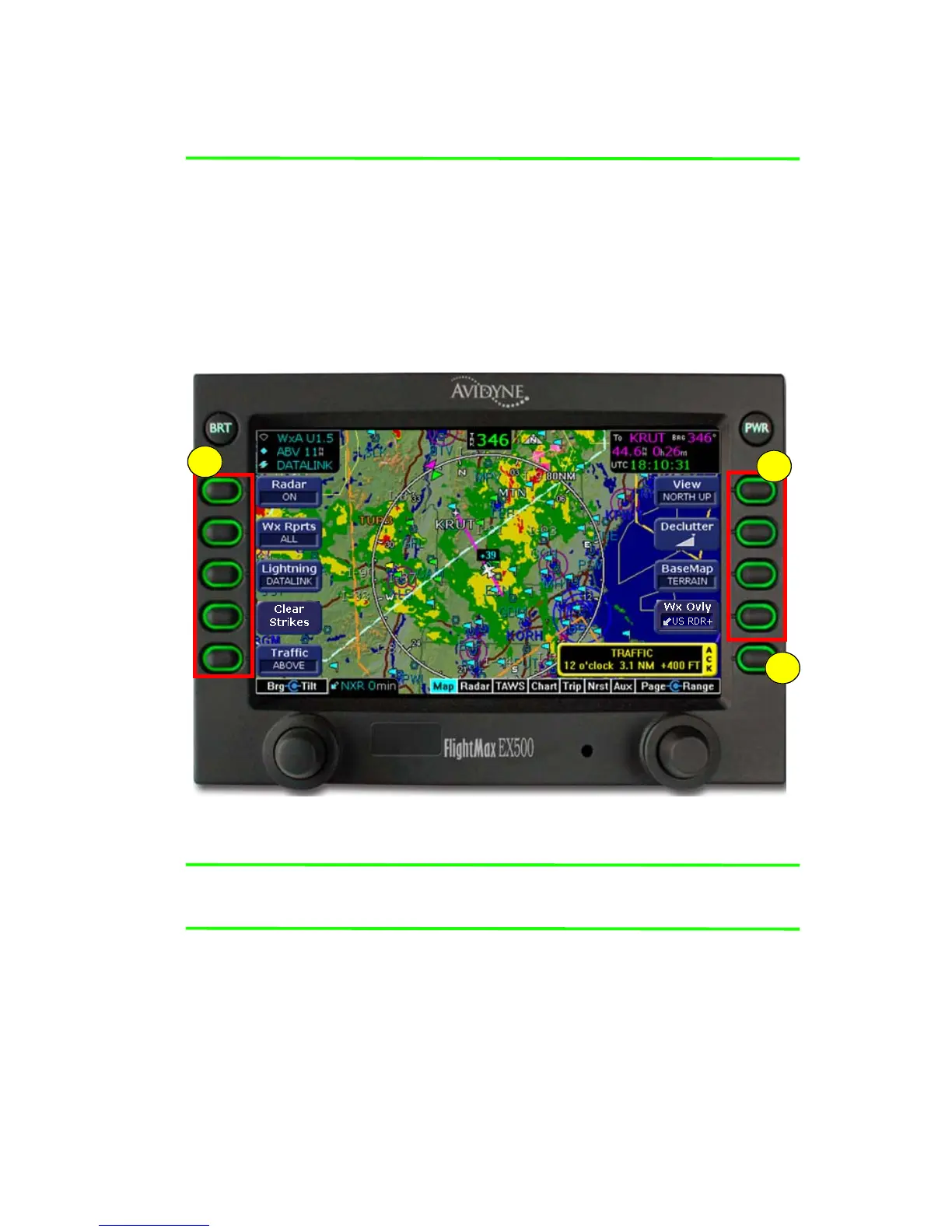

Installation Manual
P/N 600-00175-000 Rev 04 General Information
- 9 -
➥ Note that the connector assignments are suggested, but not required. If you use different pin
assignments, be sure to document the changes.
Table 6: RS-232 Port Pinout Cross-Reference
RS-232 Ports
Port Signal Pin Your Setup
1TX 10
RX 11
RTN 12
2TX 30
RX 31
RTN 32
3TX 49
RX 50
RTN 51
4TX 69
RX 70
RTN 71
