Avidyne EX600 - Appendix D: EX500, EX600, Tray & Panel Dimensions; Figure 25: EX600 and Fixed-Wing Tray Dimensions

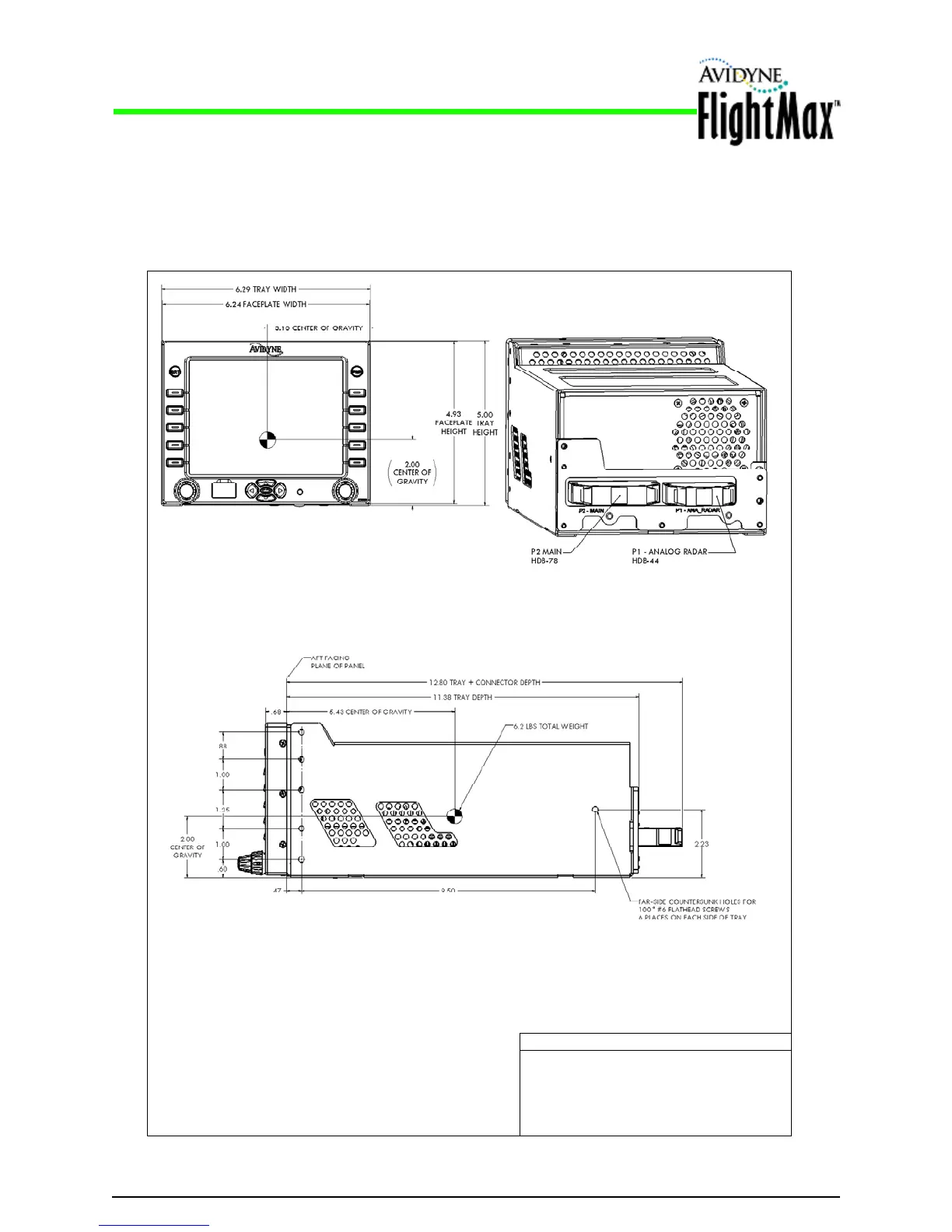

Figure 25: EX600 and Fixed-Wing Tray Dimensions
Installation Manual
EX500, EX600, Tray & Panel Dimensions P/N 600-00175-000 Rev 04
- 86 -
Appendix D: EX500, EX600, Tray & Panel Dimensions
D.1 EX600 and Fixed-Wing Tray Dimensions




 








 !"
# !

 

