Selecting an Airport
600-00078-001 Rev 05 -65- Avidyne EX500/EX600 MFD
6.5.1 Selecting a Chart
When you press Select Chart from the Airport Selection page, a
complete list of available charts for the selected airport displays.

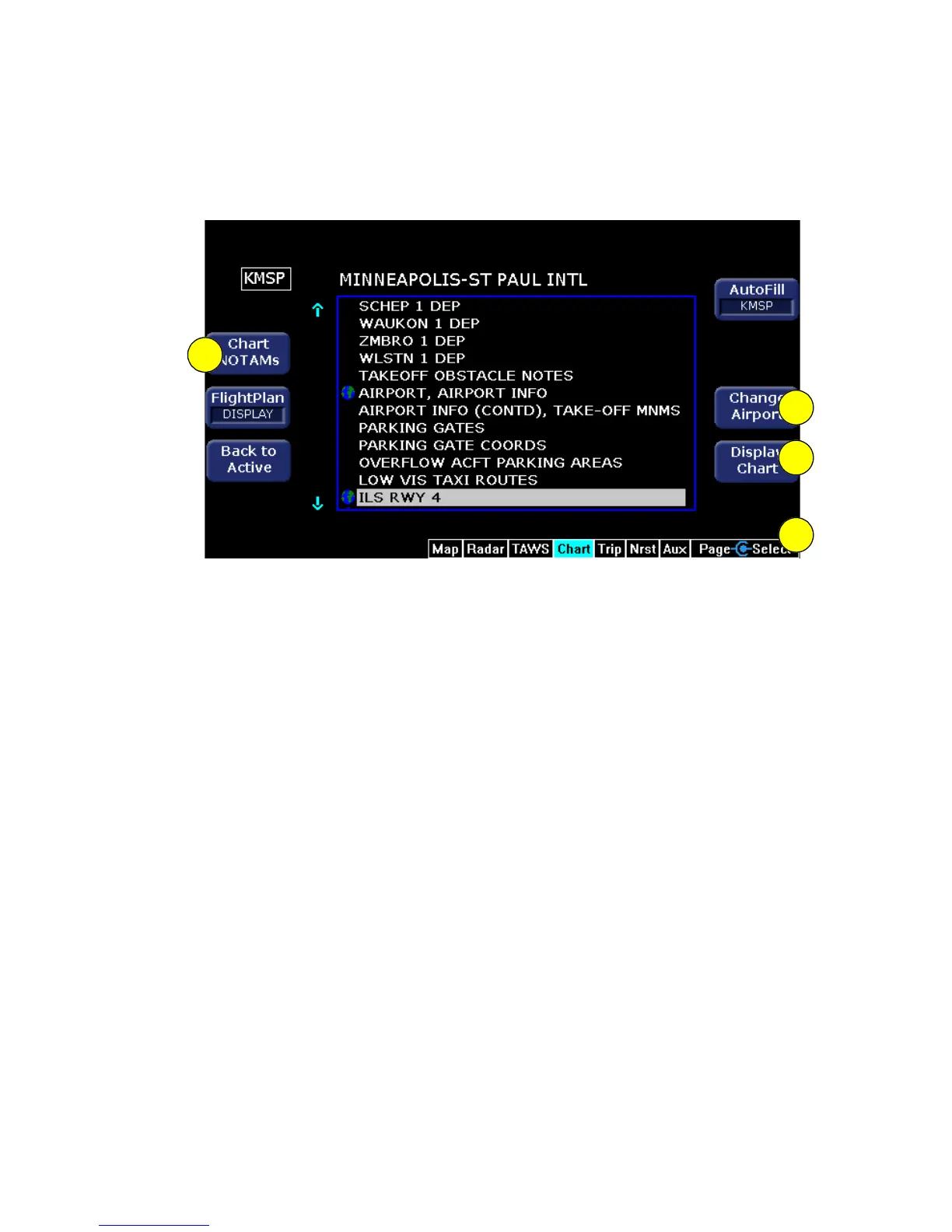

Figure 6.7 Chart Selection Page
1) Chart NOTAMs key - The Chart NOTAMs key is displayed only if
chart NOTAMs exist for the currently-selected airport. Press
Chart NOTAMs to bring up a window that lists any associated
chart NOTAMs for the airport currently entered in the Airport
Entry Field.
2) Change Airport key - Press the Change Airport key to return to
the Airport Entry Field (see 63) for entry or to modify the selected
airport identifier.
3) Display Chart key - The Display Chart key becomes active when
you enter a valid airport in the Airport Entry Field, and you press
the Select Chart key to move the selection control to the Chart
Selection list. Press the Display Chart key to load the selected
chart and display it on the Chart page. Remember, when you
press Display Chart the associated Airport diagram is also made
available on the Chart page automatically when a procedure
chart is loaded.
