CMax Chart Views
600-00078-001 Rev 05 -61- Avidyne EX500/EX600 MFD
6.4.2 Airport Chart Views
For airport charts, the available views are as follows:

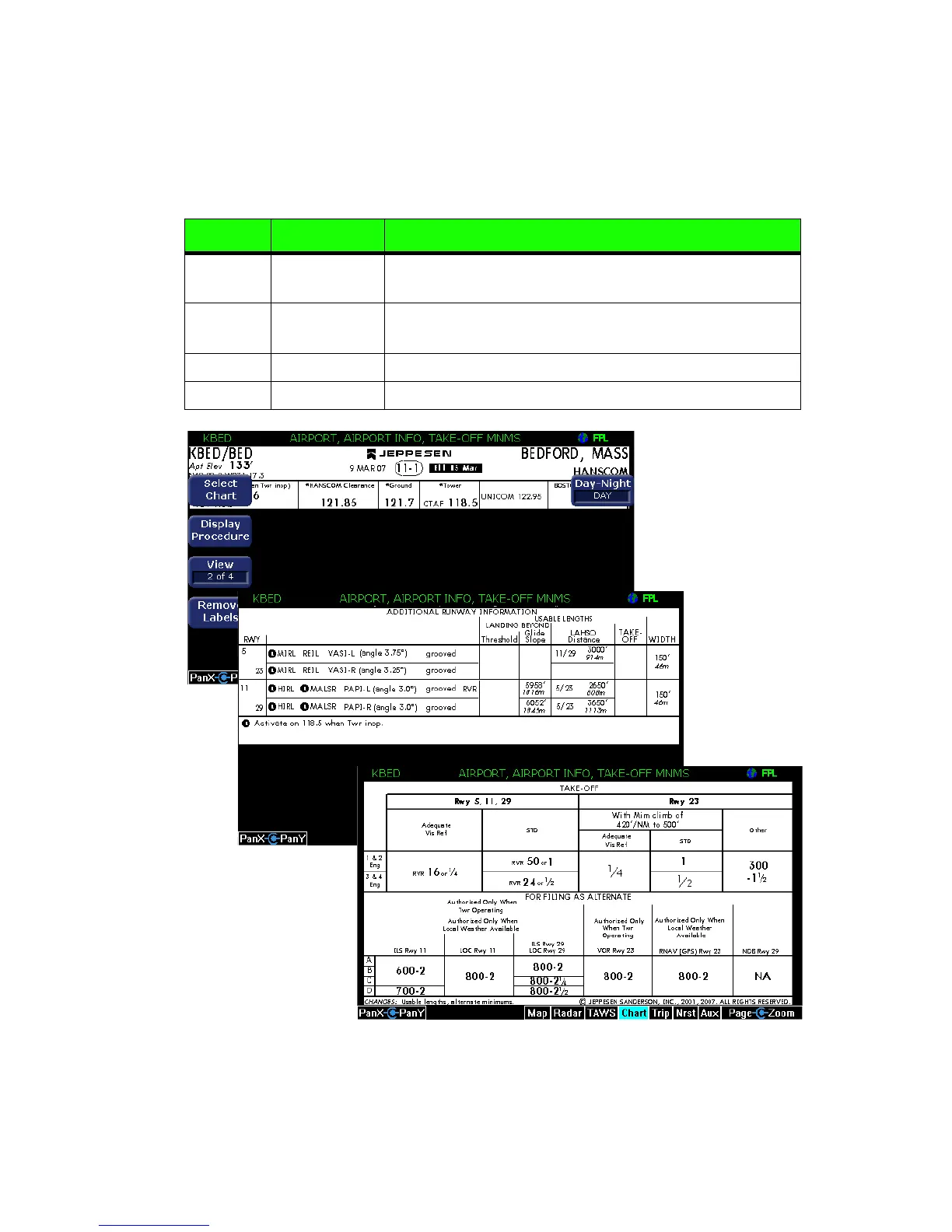

Figure 6.4 Airport Chart Views
Table 6.2 Airport Chart Views
# Chart Description
1 of 4 Plan Includes a flight plan overlay, if geo-referenced.
Shown on Figure 6.1 on page 55.
2 of 4 Header Includes general chart information and
communications frequencies.
3 of 4 Runways Shows runway information for the airport.
4 of 4 Departure Displays specific departure procedure information.
Header View
Runways
View
Departure
View
To Next Page
