Figure 31: EX500 Panel Cut-Out Dimensions
Installation Manual
EX500, EX600, Tray & Panel Dimensions P/N 600-00175-000 Rev 04
- 92 -

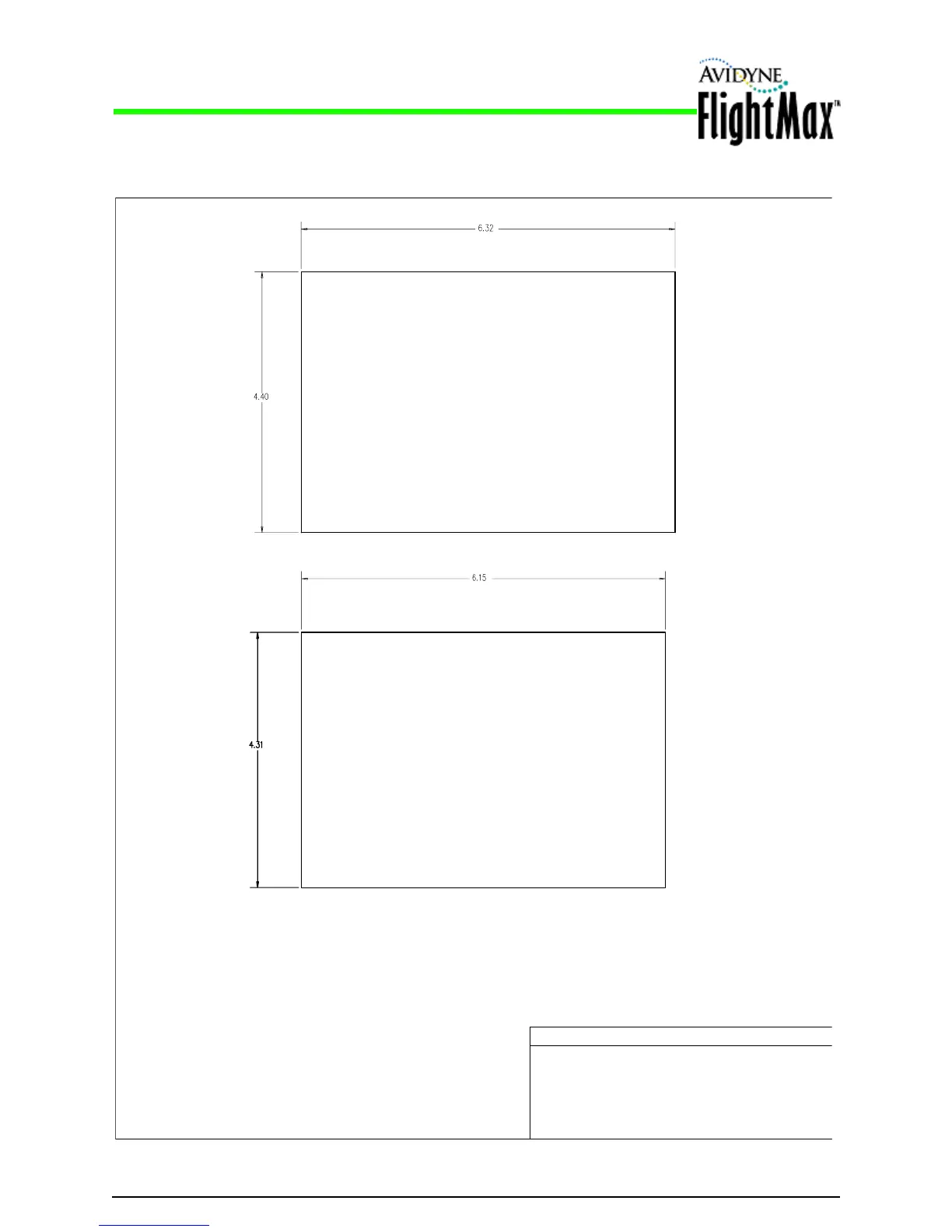

D.7 EX500 Panel Cut-Out Dimensions
EX500 INSTALLATION MECHANICAL
MFD, TRAY AND PANEL CUT-OUT
DIMENSIONS
AVIDYNE CORPORATION
NOTES:
1. DIMENSIONS IN INCHES.
2 FOR ALL TYPES OF INSTALLATION, IF THE REAR FACE
OF THE EX500 BEZEL/FACEPLATE DOES NOT CONTACT THE
BOTTOM LIP OF THE TRAY, THE REAR CONNECTORS MAY NOT
BE FULLY ENGAGED, RESULTING IN POOR OR INTERMITTENT
CONTACT.
PANEL CUTOUT
TRAY INSTALLED FROM FRONT OF AIRCRAFT PANEL
PANEL CUTOUT
TRAY INSTALLED FROM REAR OF AIRCRAFT PANEL
ONLY!
NOTE: MAXIMUM INSTRUMENT PANEL
THICKNESS IS .125 IN
