Avision Multifunction Scan Center - Page 124

118

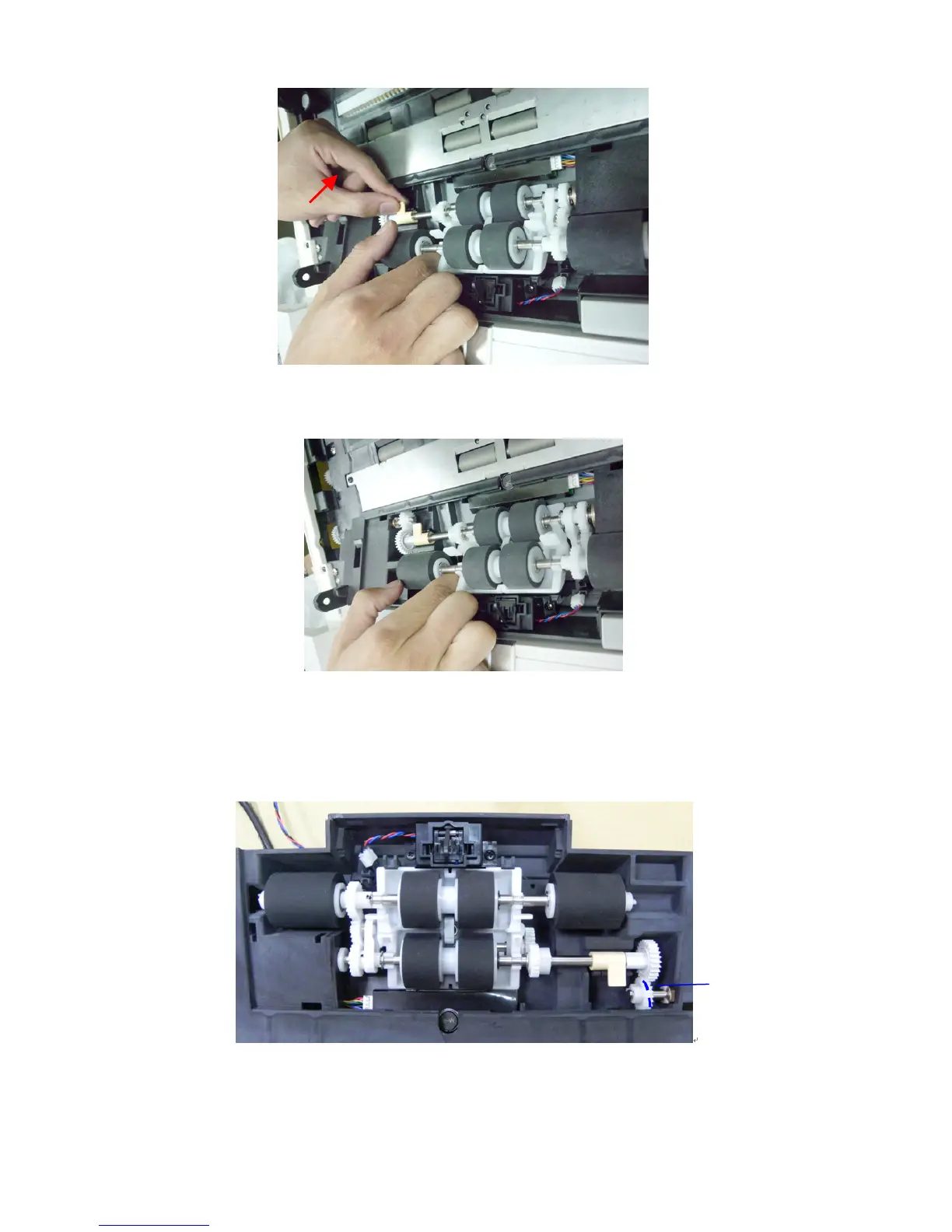

7. Position the lower ADF Pickup Roller to its slot.
8. After installing ADF Pickup Roller to the slot, lubricate the corresponding
gear on the machine as shown with EM-D110 P/N 076-0010A-0-SP. Rotate
the gear until all surface is completed lubricated.
9. Close the ADF Pickup Roller Cover.
Lubricate this gear
with EM-D110 P/N
076-0010A-0-SP
