38 HMX Extender System Installer/User Guide
NOTE: The Receiver Network Configuration Menu is identical in both Extender and Desktop modes.

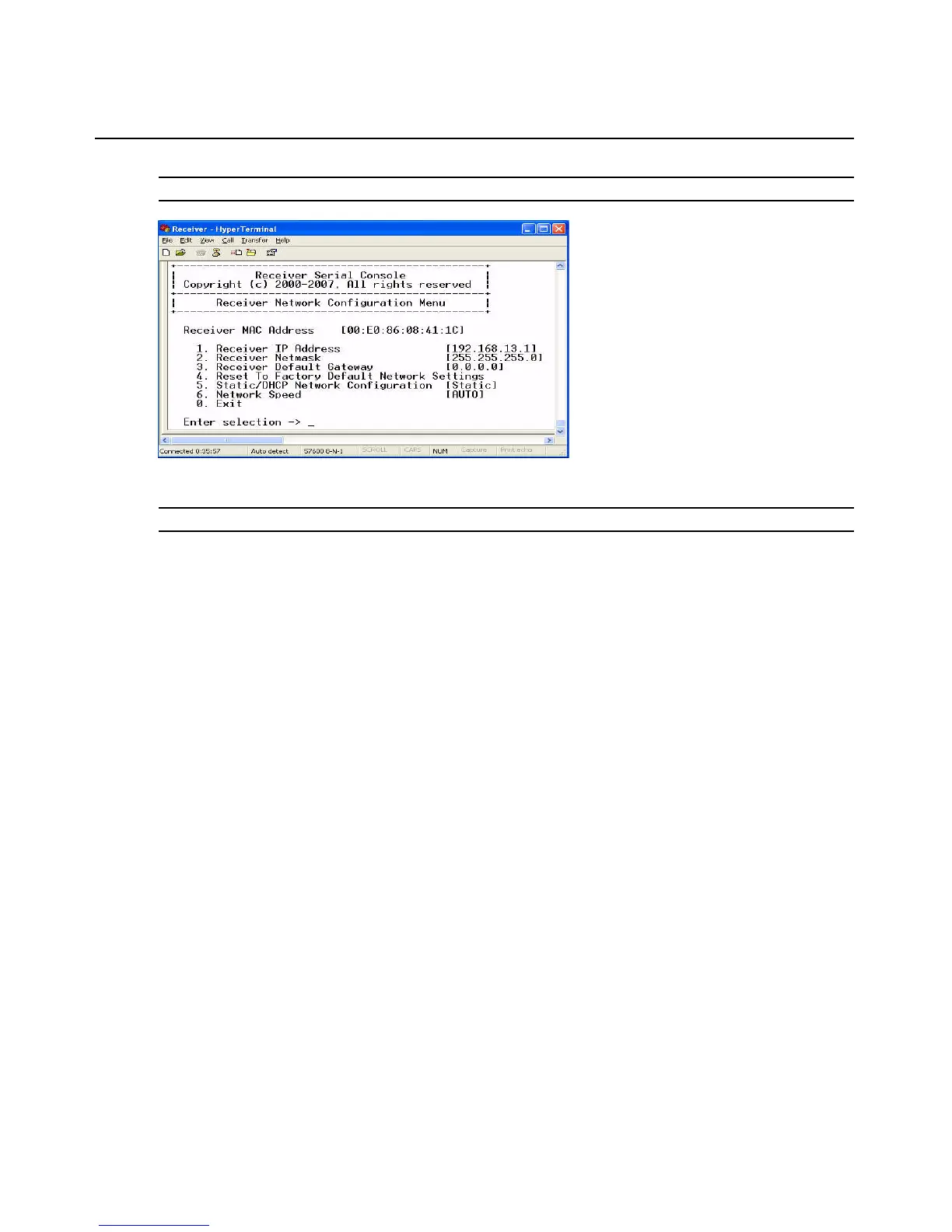

Figure 3.16: Receiver Network Configuration Menu (Extender and Desktop Mode)
NOTE: The reset option in the Receiver Network Configuration Menu applies only to network settings.
2. Press 1 to select the Receiver IP Address option and press Enter.
3. Type a valid IP address and press Enter.
4. Press 2 to select the Receiver Netmask option and press Enter.
5. Type a valid Receiver Netmask and press Enter.
6. Press 3 to select the Receiver Default Gateway option and press Enter.
7. Type a valid Receiver Default Gateway and press Enter.
8. Press 5 to select the Static/DHCP Network Configuration option to toggle between Static and
DHCP mode. Press
Enter.
9. Press 6 to select the Network Speed option to toggle between Auto-Negotiate mode (option 1)
or 100Base TX full duplex mode (option 2).
