ME-02 USER MANUAL MD004 19
_____________________________________________________________________________________________
5.5 Communication interfaces
Basic interface that is used for communication with external devices is RS1(RS232C-I), second interface
RS2(RS232C-II) requires special scale firmware to work (on demand).

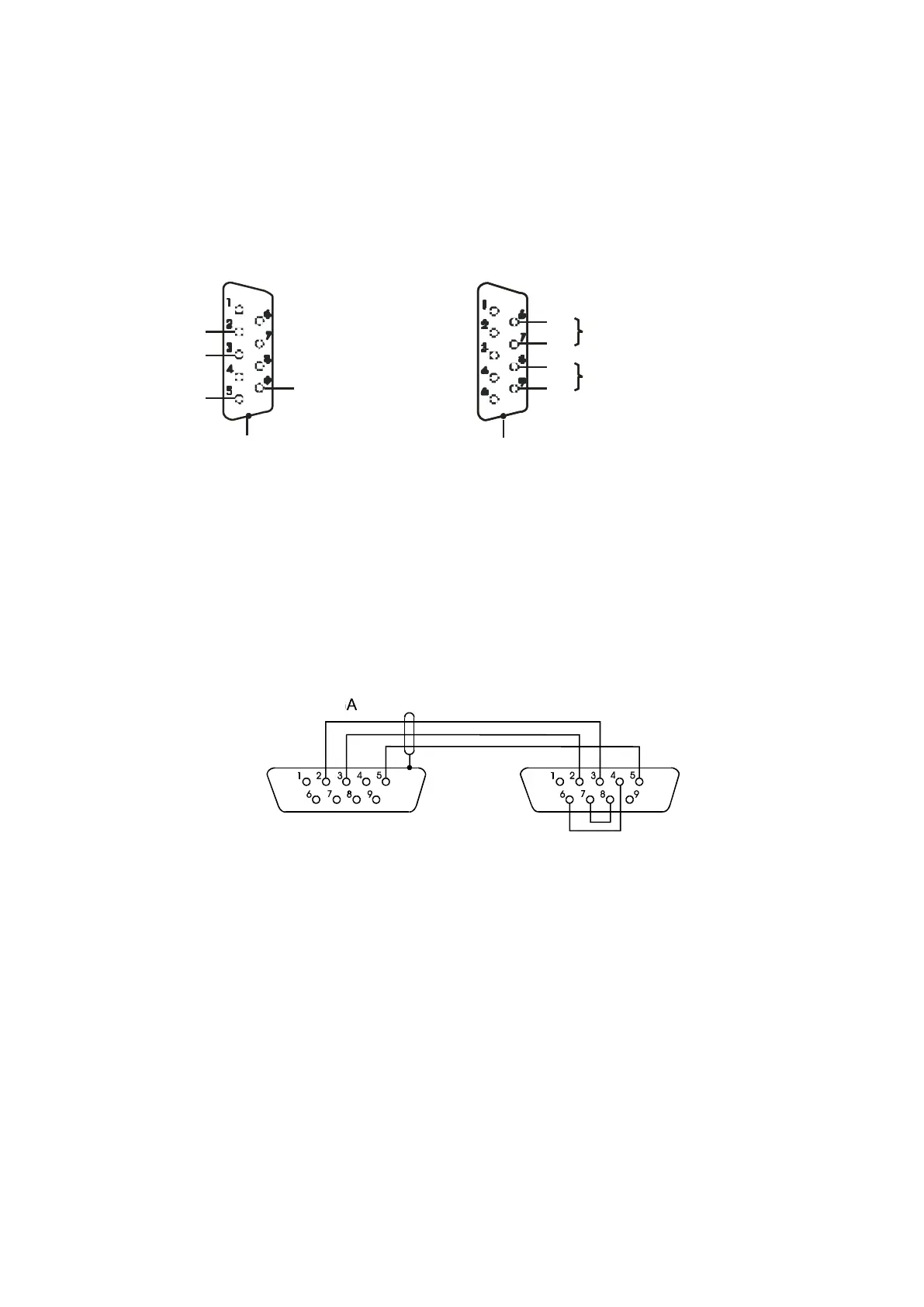

1. Comunication interfaces (standard):
RxD (reception)
TxD (transmission)
gnd
+5V(option)
housing
RS232C
DE-9
RS485
DE-9
AA
A
OUT
BB
IN
B
housing
On demand scale can be equipped in two serial interfaces. Each interface can be executed in RS232C or RS485
standard.
Main interface marked as RS...-I enables bi-directional data transmission and can be used to connect device:
computer, printer and label printer.
Additional interface marked as RS...-II enables one-way transmission and can send data to additional display (no
keyboard). Additional joint can realize continuous transmission of actual scale indication.
Using both interfaces needs requires special firmware (on demand).
Connecting cable WK-1 (scale – computer / 9-pin interface):
SCALE
COMPUTER
