Axor Microspeed Plus Series - 3.5 EMC Filter Dimensions and Notes

35
Service Manual
Plus
MICROSPEED
Installation
NOTE:
--The filter must be placed before the trasformer.
--All connections of the Net filters must be shielded and shouldn't be
longer that the length shown in the scheme.
--The cable shield must cover the entire length of the wire and be as
close as possible to the connection terminals.
--Always use shieded cable (twisted) to connect the motor and the
drive.
--Avoid passing signal and power cables through the same channels.
--It is very important that the panel where the filters are mounted is
connected to ground.
--Power and Command/Signal condotors should not be placed in the
same channels (keep separate). Avoid twisting, crossing, etc. If
crossing is inevitable, try to cross at a 90 degree angle. Where
possible use metallic channels connected to ground.
Instructions for EMC requirements (continued)

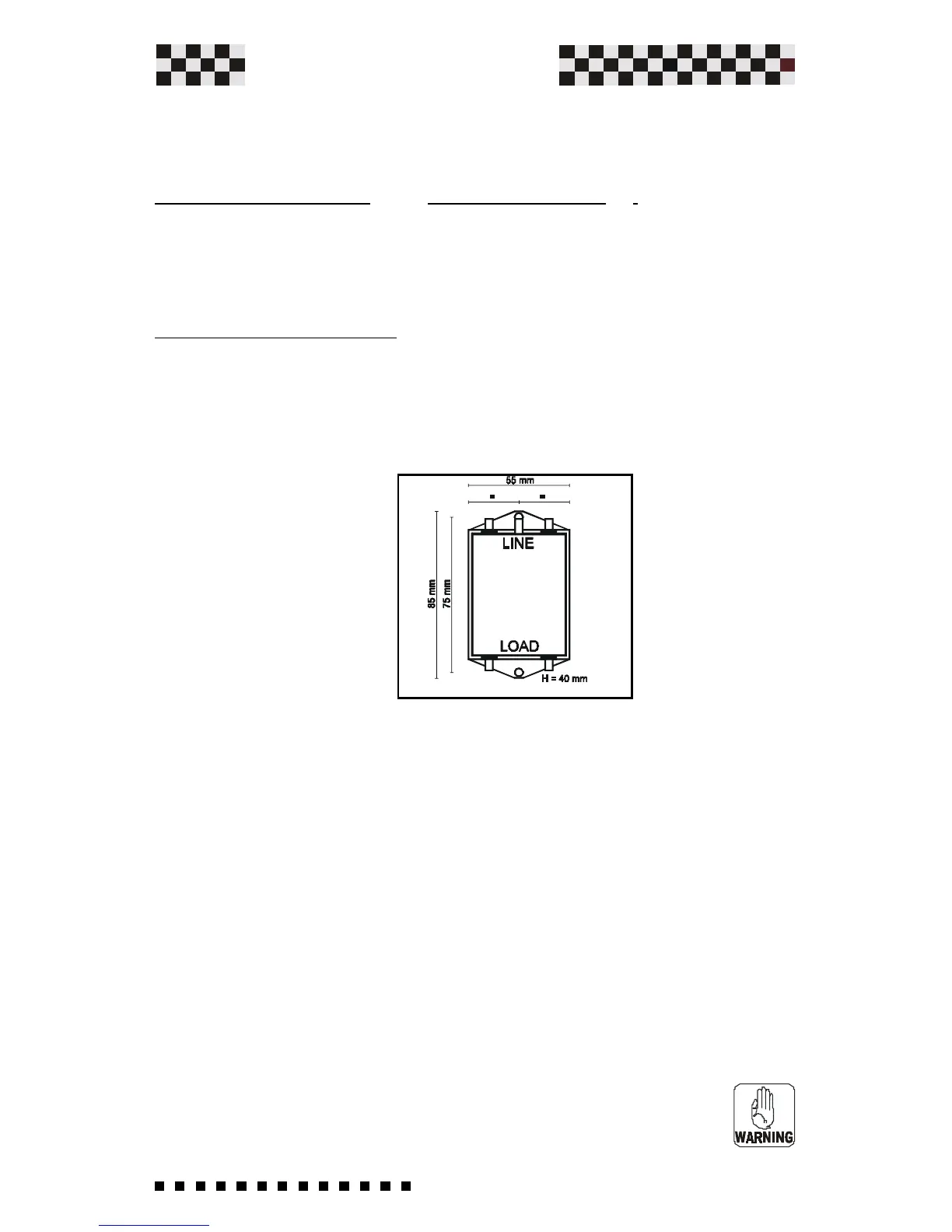

Mechanical dimension
The TIMONTA FSS2-65-3 TIMONTA FSS2-65-6 : Single
PHASE Series filters are furnished with Fast-on connectors for both input and
output.
Max. voltage : 250Vac
Max. current : 3A @ 40°C, Max. current : 6A @ 40°C
The SCHAFFNER FN2070-3: Single PHASE Series filters are furnished with
Fast-on connectors for both input and output.
Max. voltage : 250Vac
Max. current : 3A @ 40°C
Working temperature: -25° +85°C
