36
Service Manual
Plus
MICROSPEED

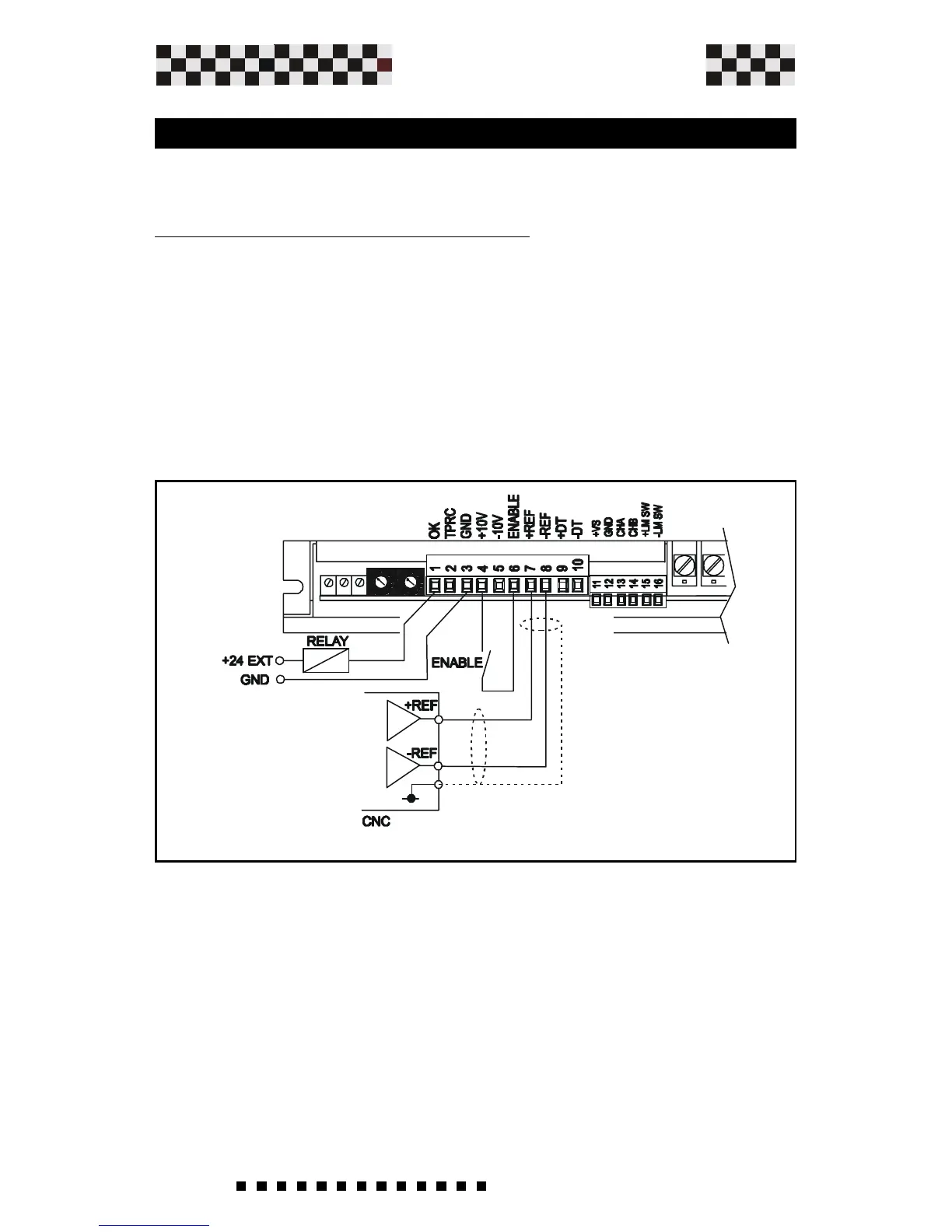

The following diagram shows an application utilizing a
differential reference from a C.N.C.
The drive is enabled using the Auxiliary power supply +10V
(Connector 4). It is possible to use an external power supply
for this function (24Vdc). Remember to also connect the GND
of the power supply to Connector 3.
3.6 Examples of Microspeed Plus Connections
On connector 1 "OK" an external relay coil was connected.
This output has a rating of 50mA Max.
Do Not connect a supply exceeding 24Vdc. Connect the
Power Supply GND externally using connector 3
.
Installation
