MICROSPEED
Installation

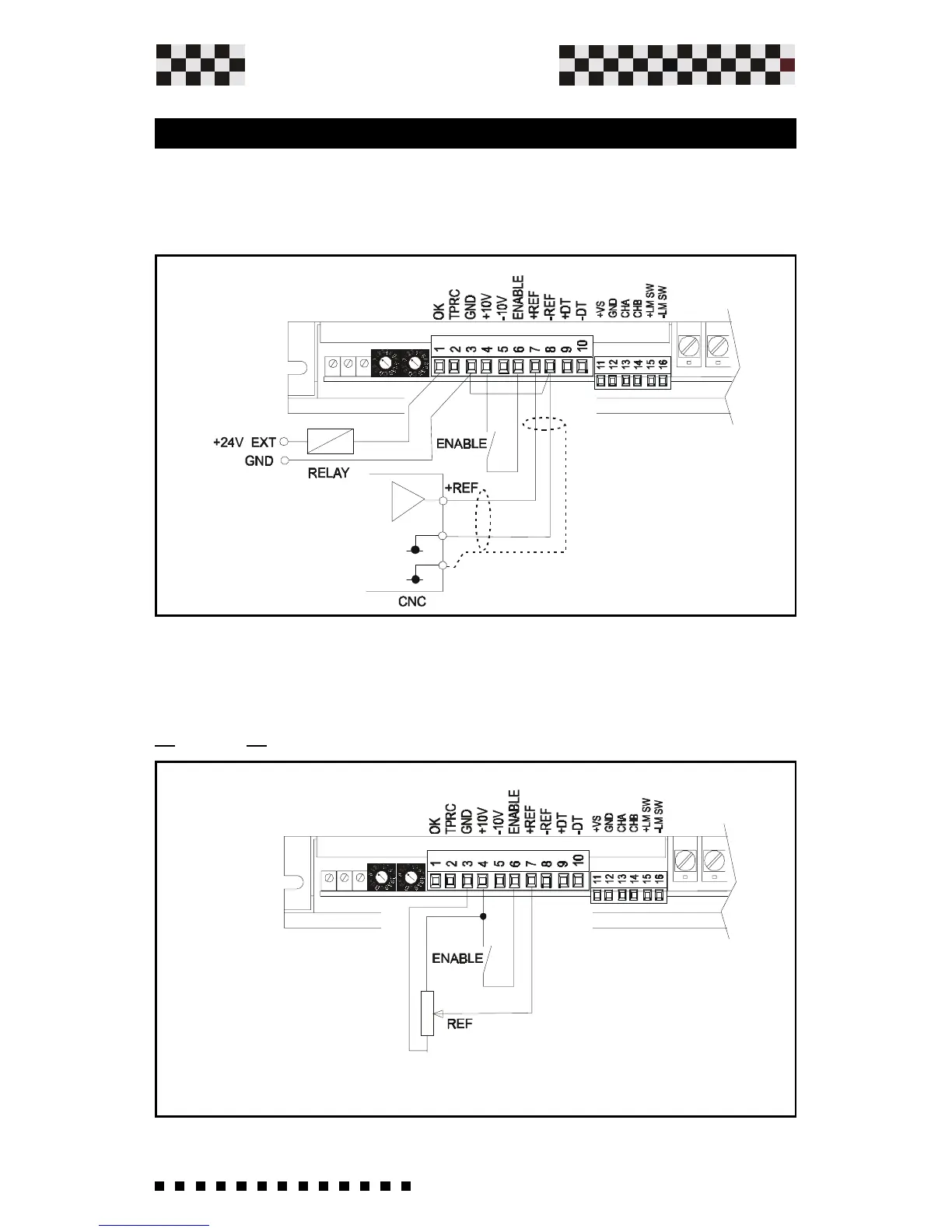

The following figure shows an application with speed reference
connections using an internal MICROSPEED PLUS power supply.
The speed potentiometer must have an included value between
>10 and <47Kohm.
The following diagram shows an application using speed
reference connections in the Common Mode.
3.7 Common Mode Reference
