Service Manual
Plus
MICROSPEED
Option
Encoder Connection from External Power Supply

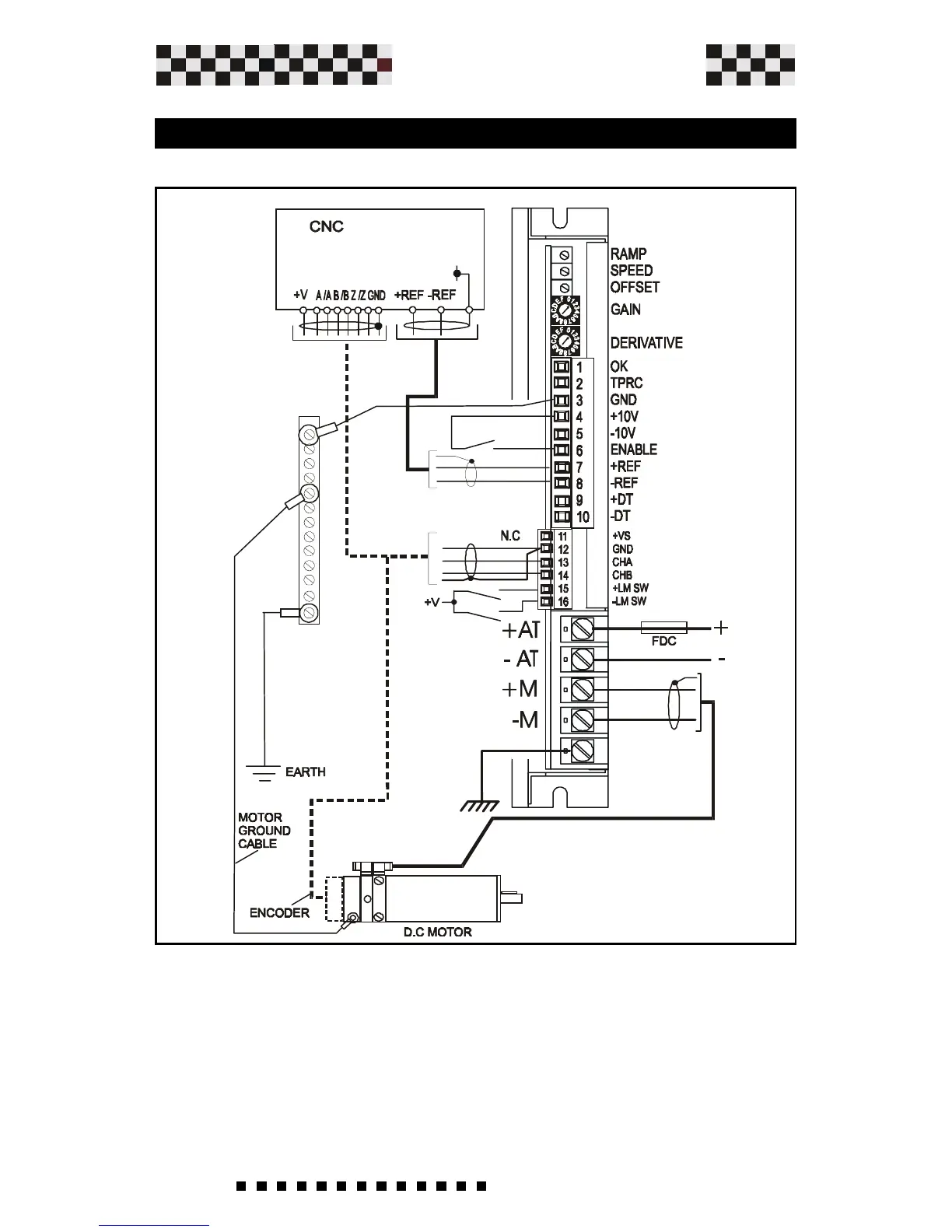

The figure below shows a self-powered MICROSPEED PLUS
with the Encoder signalS are powered externally. The Ground
of the external power supply must be connected to the drives
GND pin 12.
