Axor Microspeed Plus Series - Encoder Connections

59
Service Manual
Plus
MICROSPEED
Encoder Connections
Options

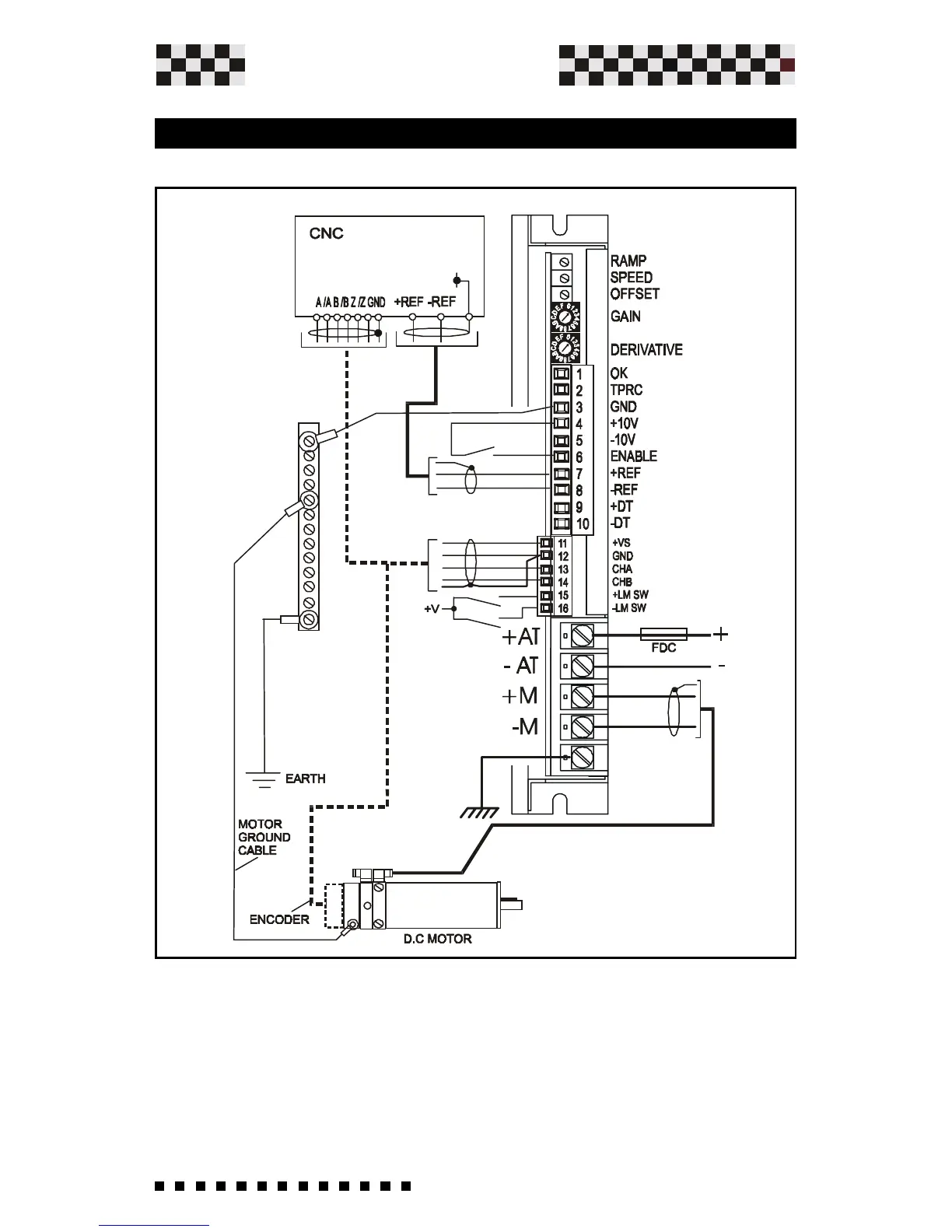

The following diagram shows typical connections between the
drive and a brushed motor.
The Encoder power comes from the (+V), connector 11.
