1.3 Microspeed Plus Description

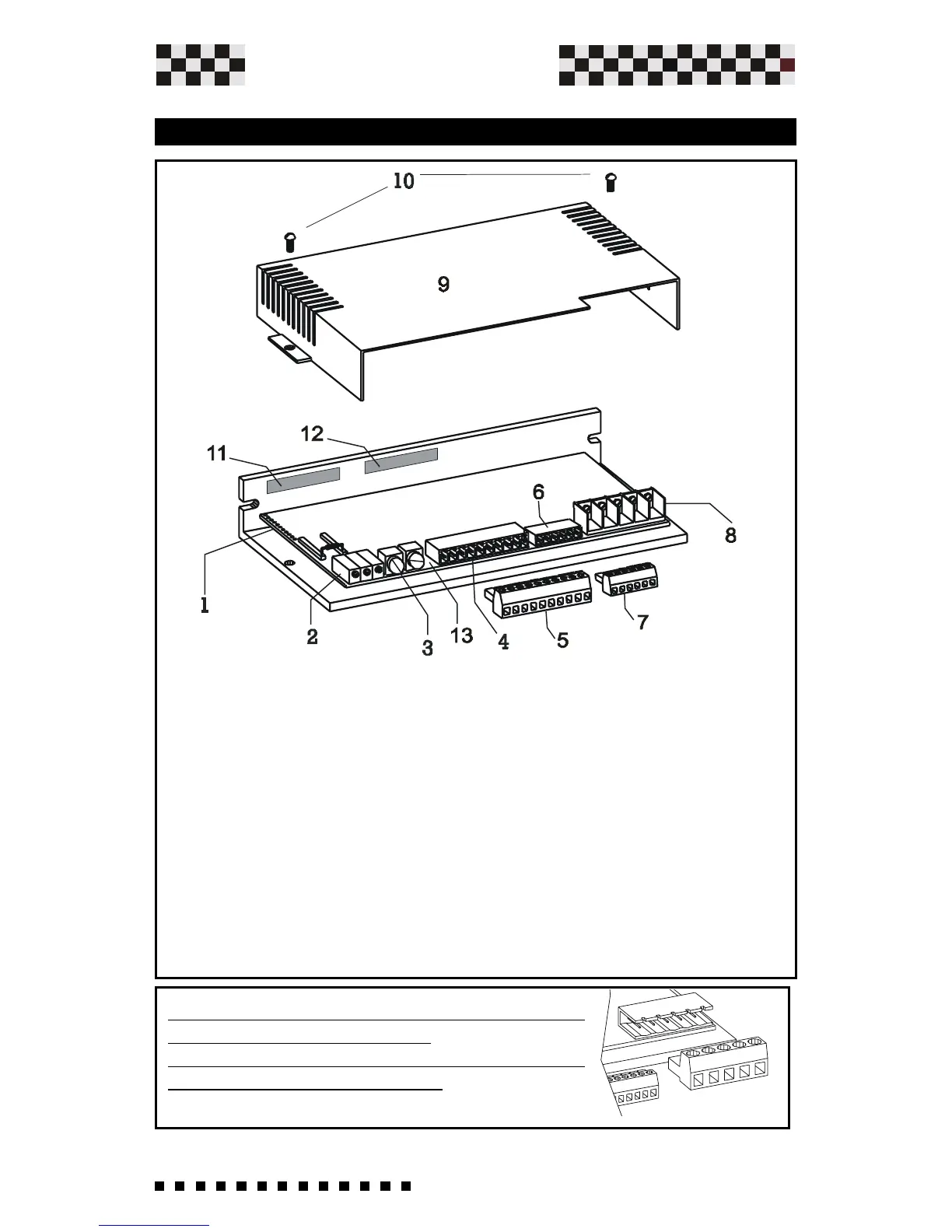

General Description
1 Calibration Area
2 Calibration Potentiometers
3 Hexadecimal Rotating Switch
4 10 poles 5.08 Phoenix Signal Terminals.
5 10 poles 5.08 Extractable Phoenix Terminals.
6 6 poles 3.81 Phoenix Signal Terminals.
7 6 poles 3.81 Extractable Phoenix Terminals.
8 Power Terminals AUGAT
9 Product Cover
10 Fixing screws
11 Serial Number
12 Product ID Label
13 Tacho Test point (Tachometric signal)
The power connector "AUGAT 6PCR-05" is used
on sizes 10/20-14/28 e 20/40A.
Power terminals "Phoenix GMSTB2,5/5-G" 7,62
for Microb sizes 1/2 2,5/5 6/12 .
