A-3
Setup mode
Auto setup
Guide
number

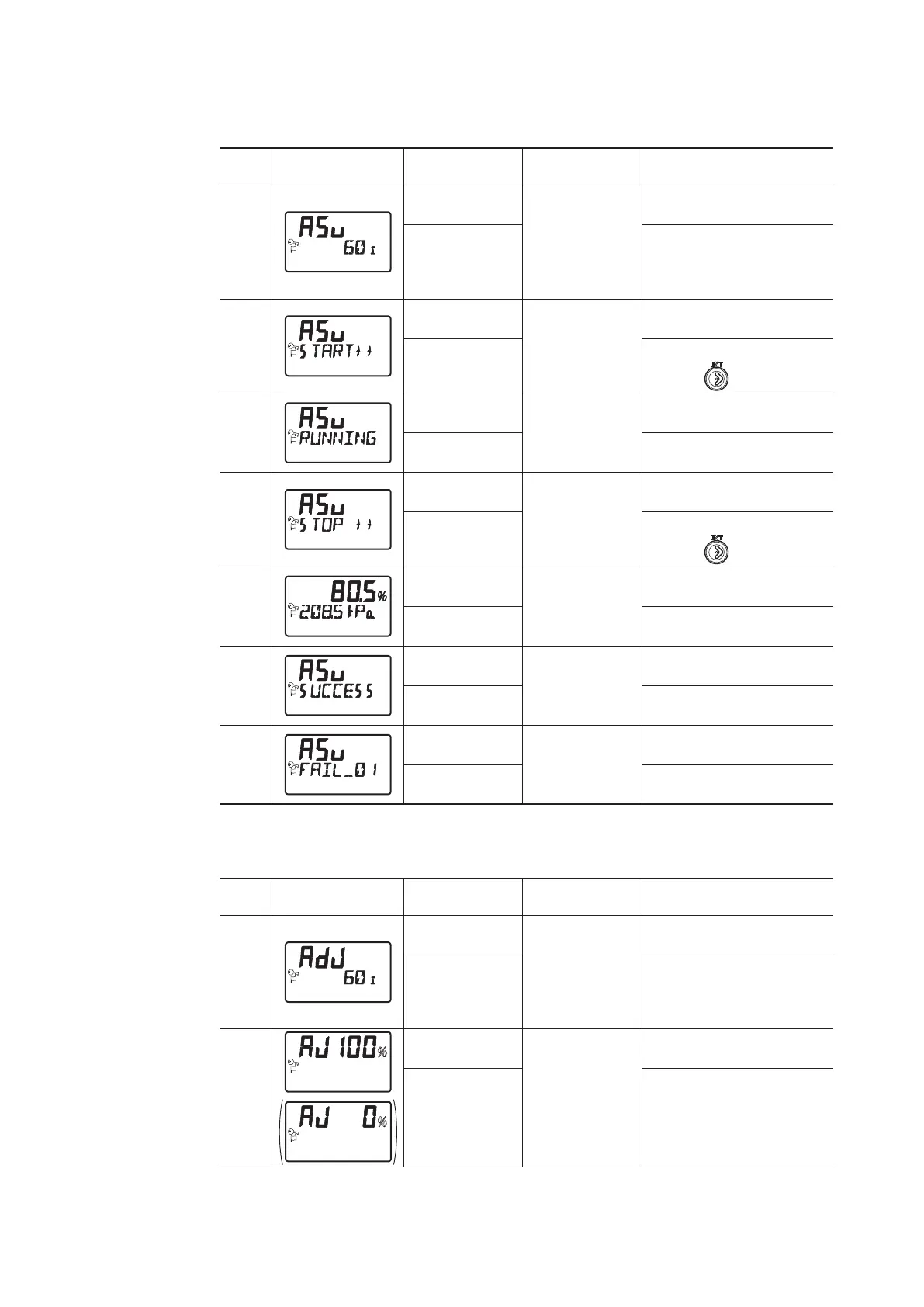

Display Reading Item Remarks
7-1
ASU
ASU initial screen
Auto SetUp
60s
Time until the setup mode
automatically ends
(Not displayed if the time is
longer than 60 seconds.)
7-2
ASU
Waiting for ASU
execution
Auto SetUp
START→→
To perform auto setup, hold
down the
button.
7-3
ASU
ASU is being
performed.
Auto SetUp
RUNNING Flashes.
7-4
ASU
Waiting until ASU
stops.
Auto SetUp
STOP→→
To abort auto setup, hold
down the
button.
7-5
80.5
ASU monitor
Valve opening (%)
208.5kPa Output air pressure OUT1
7-6
ASU
ASU successfully
completed
Auto SetUp
SUCCESS
7-7
ASU
ASU failed
Auto SetUp
FAIL_01
The numerical value is an
error code.
Zero span adjustment
Guide
number
Display Reading Item Remarks
8-1
ADJ
ADJ initial screen
Angle Adjustment
60s
Time until the setup mode
automatically ends
(Not displayed if the time is
longer than 60 seconds.)
8-2
AJ100
(AJ 0)
ADJ adjustment
opening selection
AJ100 : Adjust 100% Angle
(AJ 0 : Adjust 0% Angle)
→
