Azbil SDC15 User Manual

6-23
■ MV low limit/high limit at AT (auto tuning)
(1) In the operation display mode, keep the [para] key
pressed for 2 sec. or longer.
>> The unit then enters the parameter setting mode.
(2) Press the [para] key several times.

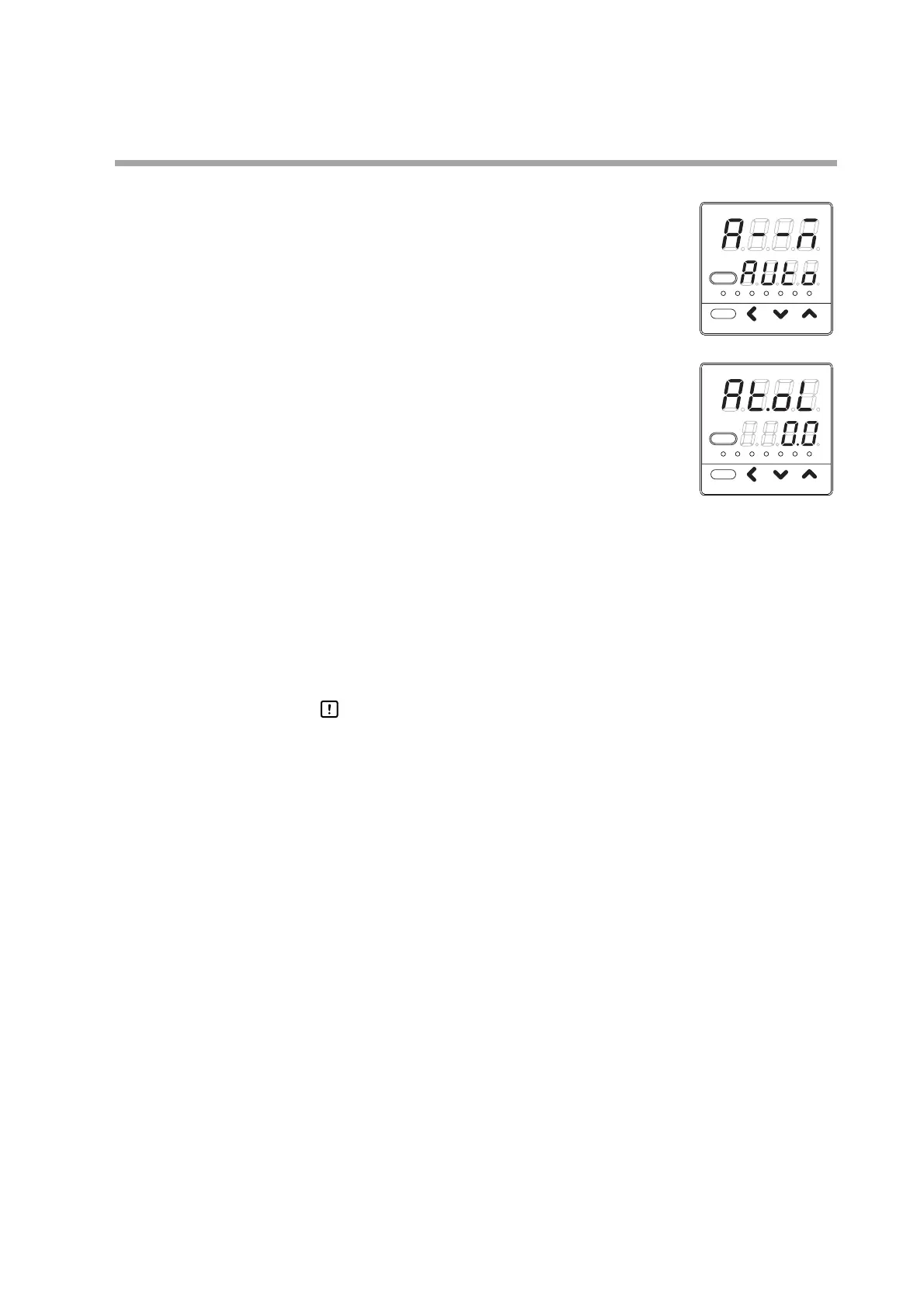

>> Display the parameter setting [At.oL: MV low limit
at AT] or [At.oH: MV high limit at AT]. The Figure
on the right shows that [At.oL: MV low limit at AT]
is displayed.
(3) Press the [<], [], or []key to change the set value in
[At.oL] and [At.oH].
Setting range: -10.0 to +110.0%
>> When no keys are pressed for 2 sec. or longer, the flashing of the numeric
value is stopped to set the currently displayed value.
(4) Press the [mode] key.
>> The display is returned to the operation display.
Handling Precautions
When [CtrL: Control method] is set at [0: ON/OFF control], [At.oL] and
[At.oH] are not displayed.
<
<
Chapter 6. SETTINGS DURING OPERATION
rdy
man
ev1 ev2 ev3 ot1 ot2
para
mode
pv
sp
rdy
man
ev1 ev2 ev3 ot1 ot2
para
mode
pv
sp
