6 - 4 PID
6-12
In this unit, the number of PID groups is one. When [CtrL: Control method] is set at “0” (ON/OFF control), the
PID cannot be set.
In "Simple configuration", P-1 (Proportional band), I-1 (Integral time), D-1 (Derivative time), rE-1 (Manual reset),
P-1C (P (Proportional band) (cool)), I-1C (I (Integral time) (cool)), and d-1c (D (Derivative time) (cool)) can be
set.
■ P-1 (proportional band) setup
(1) In the operation display mode, keep the [para] key
pressed for 2 sec. or longer.
>> The unit then enters the parameter setting mode.
(2) Press the [para] key several times.

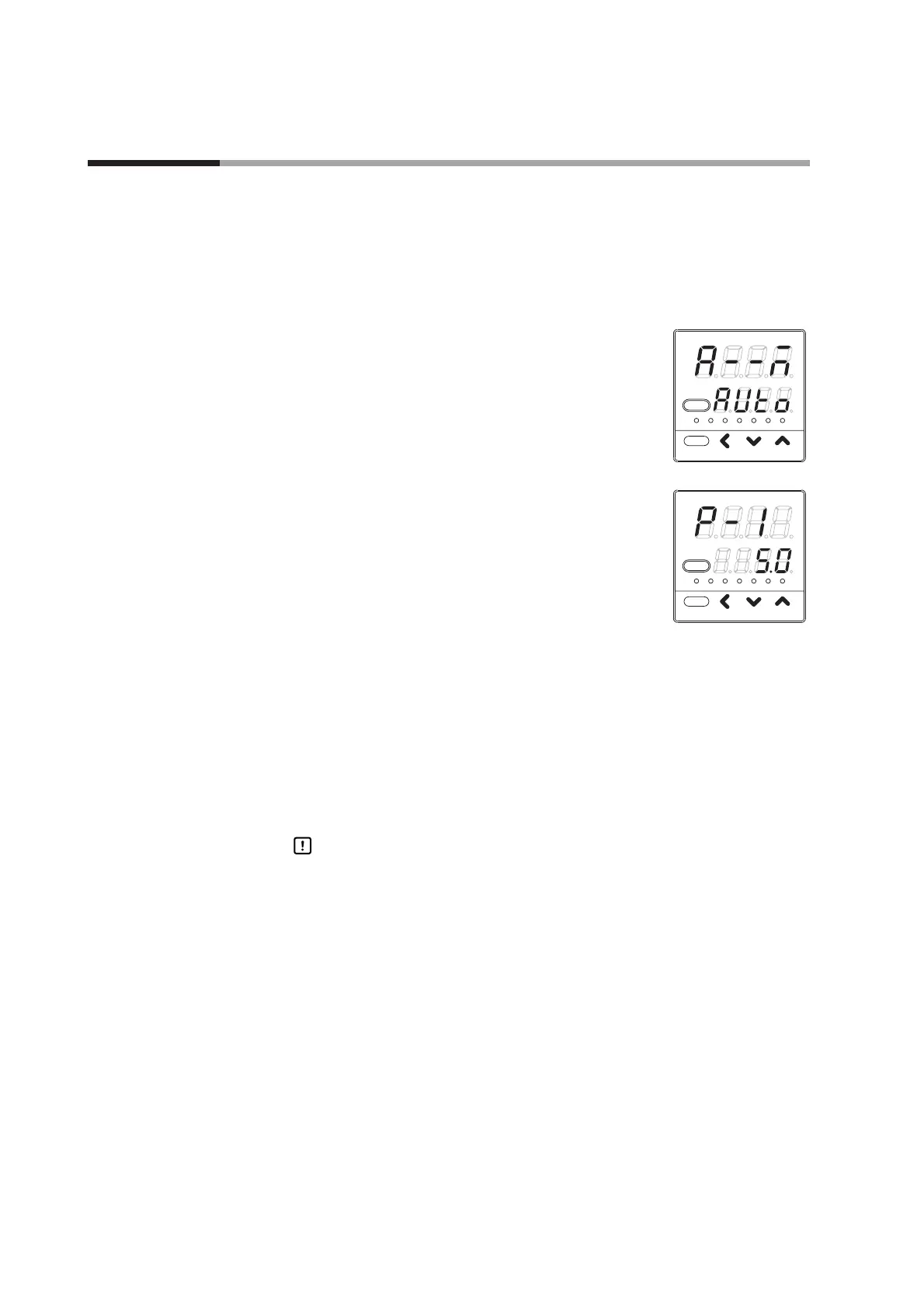

>> Display the parameter setting [P-1: Proportional
band].
(3) Press the [], or []key to change the set value in
[P-1].
Setting range: 0.1 to 999.9%
>> When no keys are pressed for 2 sec. or longer, the flashing of the numeric
value is stopped to set the currently displayed value.
(4) Press the [mode] key.
>>The display is returned to the operation display.
Handling Precautions
When [CtrL: Control method] is set at [0: ON/OFF control], [P-1] is not
displayed.
