Chapter 6.
SETTINGS DURING OPERATION
6 - 1 SP
6-1
The SP can be set in either the operation display or parameter setting display mode.
■ SP setup in operation display mode
(1) Make sure that the unit is in the operation display mode.
If the unit is in the parameter setting display or setup setting display mode,
press the [mode] key.
>> The display is then returned to the operation display.

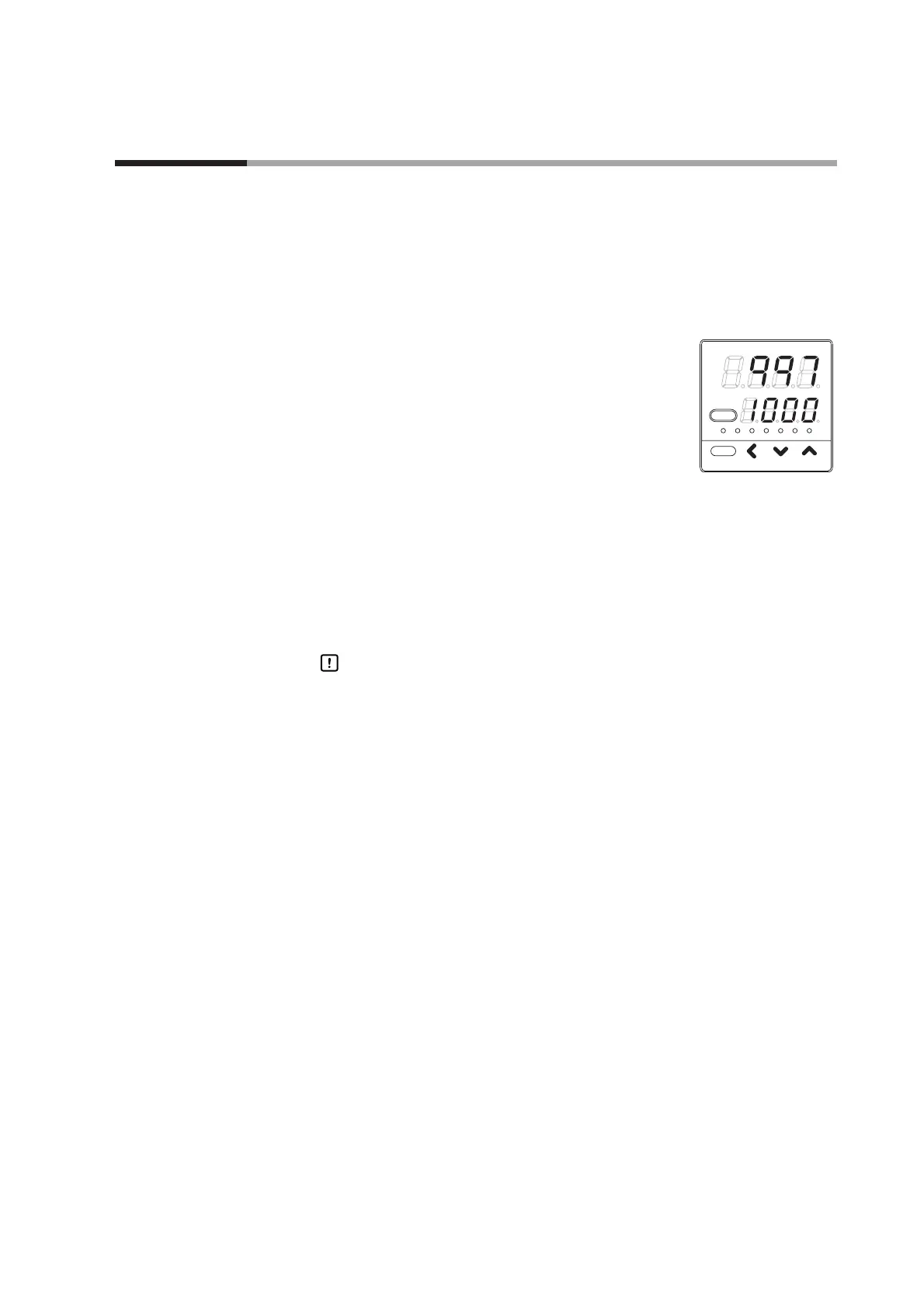

(2) Make sure that the PV is shown on the display No. 1
and the SP is shown on the display No. 2.
If other data is shown, press the [para] key several
times.
>> Display the PV on the display No. 1 and the SP on
the display No. 2.
(3) Press the [<], [], or []key to change the set SP value.
Setting range: SP low limit to SP high limit
However, note that the PV input range low limit/high limit
have already been set for the SP low limit/high limit.
>> When no keys are pressed for 2 sec. or longer, the flashing of the numeric
value is stopped to set the currently displayed value.
Handling Precautions
• With “Standard configuration” or “High function configuration”, it is
possible to make the settings so that the PV or SP is not displayed on
the operation display.
At this time, either the PV or SP, or both the PV and SP are not
displayed. Therefore, the actual display status may vary from the
above description.
The SP cannot be set when the settings are made so that the SP is
not shown in the operation display mode. At this time, however, the
SP can be set in the parameter setting display mode.
• The SP low limit/high limit cannot be set with "Simple configuration".
To Next Page
