7-2

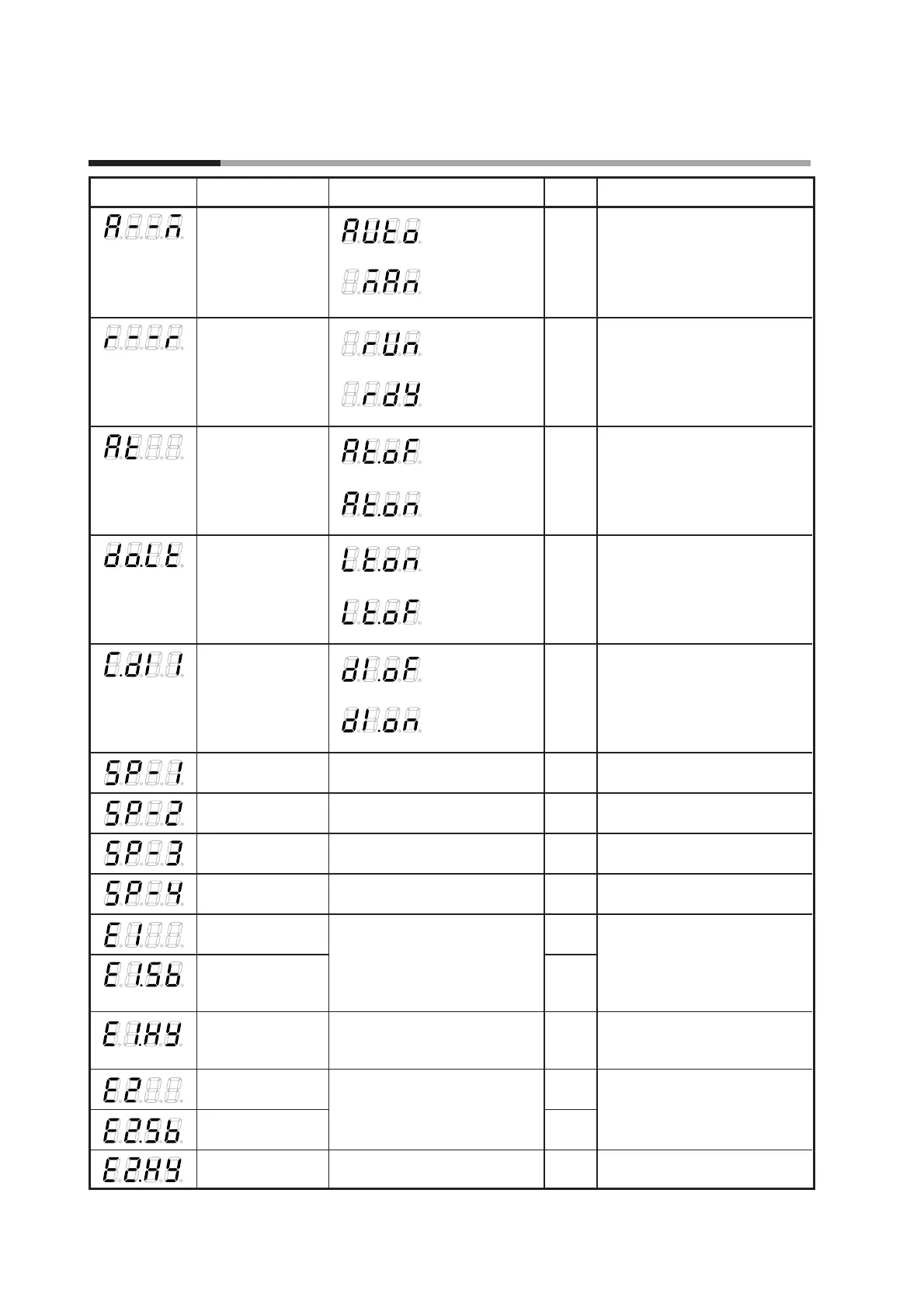

Chapter 7. LIST OF SIMPLE CONFIGURATION DISPLAY ITEMS
7 - 2 List of Parameter Setting Displays
Display Item Contents
Initial value
Notes
AUTO/MANUAL AUTO Displayed when the control method is
mode selection
: AUTO mode
other than ON/OFF control (CtrL 0).
: MANUAL mode
RUN/READY RUN
mode selection
: RUN mode
: READY mode
AT Stop/Start AT Displayed when the control method is
selection
: AT stop
stop other than ON/OFF control (CtrL 0).
: AT start
Release all DO Latch All DO latches such as control outputs
latches
: Latch continue
continue (relay and voltage pulse) and events
can be released.
: Latch release
Communication DI1 OFF
: OFF
: ON
SP of LSP1 group SP low limit (C07) to 0
SP high limit (C08)
SP of LSP2 group SP low limit (C07) to 0 Displayed when [LSP system group]
SP high limit (C08) (C30) is "2" or more.
SP of LSP3 group SP low limit (C07) to 0 Displayed when [LSP system group]
SP high limit (C08) (C30) is "3" or more.
SP of LSP4 group SP low limit (C07) to 0 Displayed when [LSP system group]
SP high limit (C08) (C30) is "4" or more.
Event 1 main setting -1999 to +9999 0 Setting required by the event
The decimal point position may vary
operation type is displayed.
Event 1 sub setting
so that it meets the operation type.
0
The above value becomes 0 to 9999
in some operation types.
Event 1 hysteresis 0 to 9999 5
The decimal point position may very
so that it meets the operation type.
Event 2 main setting Same as Event 1 main / sub setting 0
Event 2 sub setting 0
Event 2 hysteresis Same as Event 1 hysteresis 5
