7-3

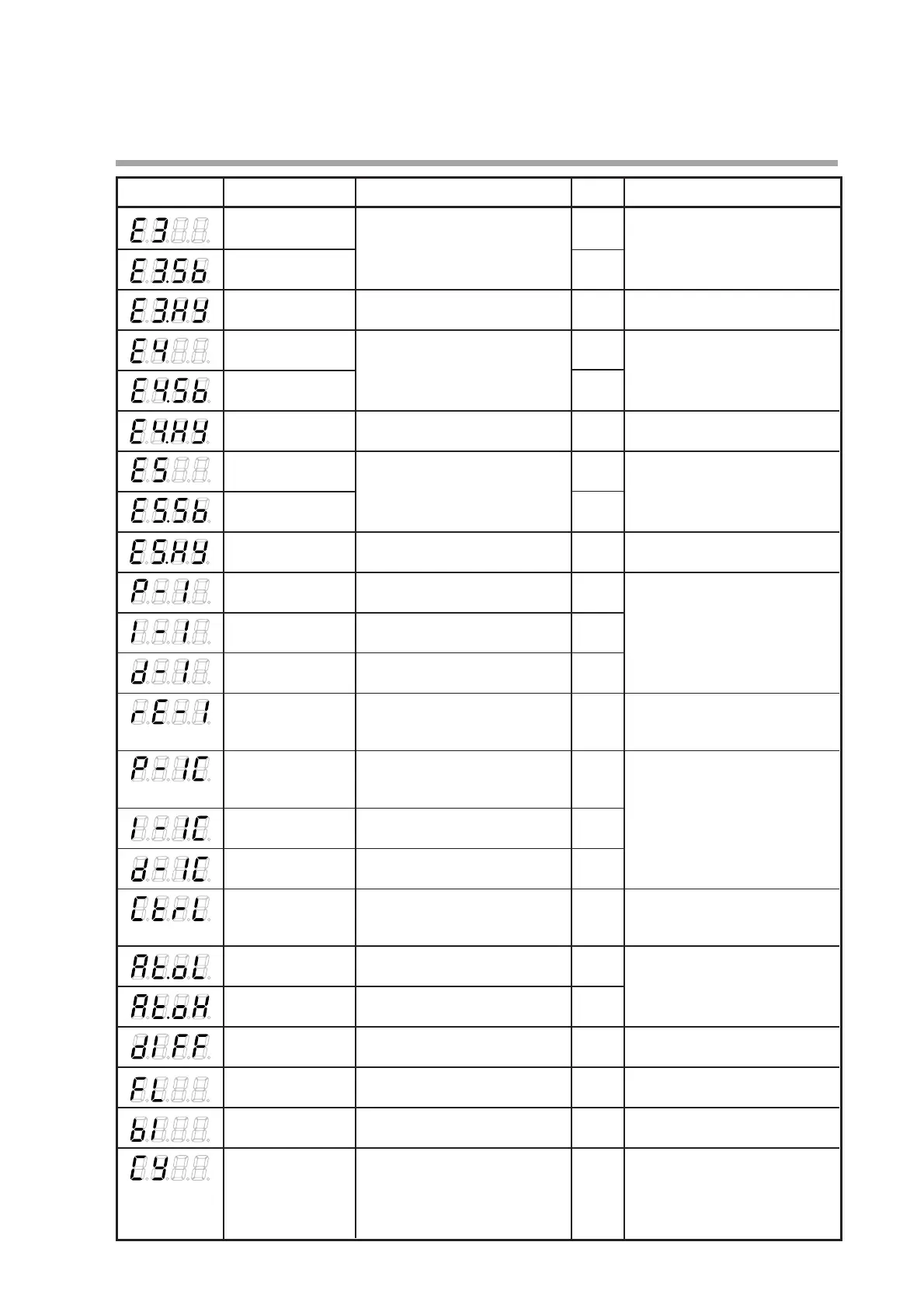

Chapter 7. LIST OF SIMPLE CONFIGURATION DISPLAY ITEMS
Display Item Contents
Initial value
Notes
Event 3 main setting Same as Event 1 main / sub setting 0
Event 3 sub setting 0
Event 3 hysteresis Same as Event 1 hysteresis 5
Event 4 main setting Same as Event 1 main / sub setting 0
Event 4 sub setting 0
Event 4 hysteresis Same as Event 1 hysteresis 5
Event 5 main setting Same as Event 1 main / sub setting 0
Event 5 sub setting 0
Event 5 hysteresis Same as Event 1 hysteresis 5
Proportional band 0.1 to 999.9% 5.0 Displayed when the control method is
other than ON/OFF control (CtrL ≠ 0).
Integration time 0 to 9999s 120
Derivative time 0 to 9999s 30
Manual reset
-10.1 to +110.0% 50.0 Displayed when the control method is
not the ON/OFF control (CtrL ≠ 0) and
the integration time (I-1) is 0 sec.
P ((Proportional band) 0.1 to 999.9% 5.0 Displayed when the control method is
(cool)) not the ON/OFF control (CtrL ≠ 0) and
the heat/cool control is used (C26 = 1).
I ((Integration time) 0 to 9999s 120
(cool))
D ((Derivative time) 0 to 9999s 30
(cool))
Control method 0: ON/OFF control 0 The initial value is "0" when the
1: Fixed PID or control output 1 is the relay output.
2: ST (Self-tuning) 1 The initial value is "1" in other cases.
MV low limit at AT -10.0 to +110.0% 0.0 Displayed when the control method is
other than ON/OFF control (CtrL ≠ 0).
MV high limit at AT -10.0 to +110.0% 100.0
ON/OFF control 0 to 9999 U 5 Displayed when the control method is
differential the ON/OFF control (CtrL = 0).
PV filter 0.0 to 120.0 s 0.0
PV bias -1999 to +9999U 0
Time proportional 5 to 120s (when the output includes 10
When the output destination of the time
cycle time 1 the relay output) or
proportional output 1 includes the relay
1 to 120s (when the output does not 2
output, the relay output is operated with
include the relay output)
time proportional cycle time of 5 sec. even
though a value less than 5 sec. is set.
To Next Page
