Chapter 7.
LIST OF SIMPLE CONFIGURATION DISPLAY ITEMS

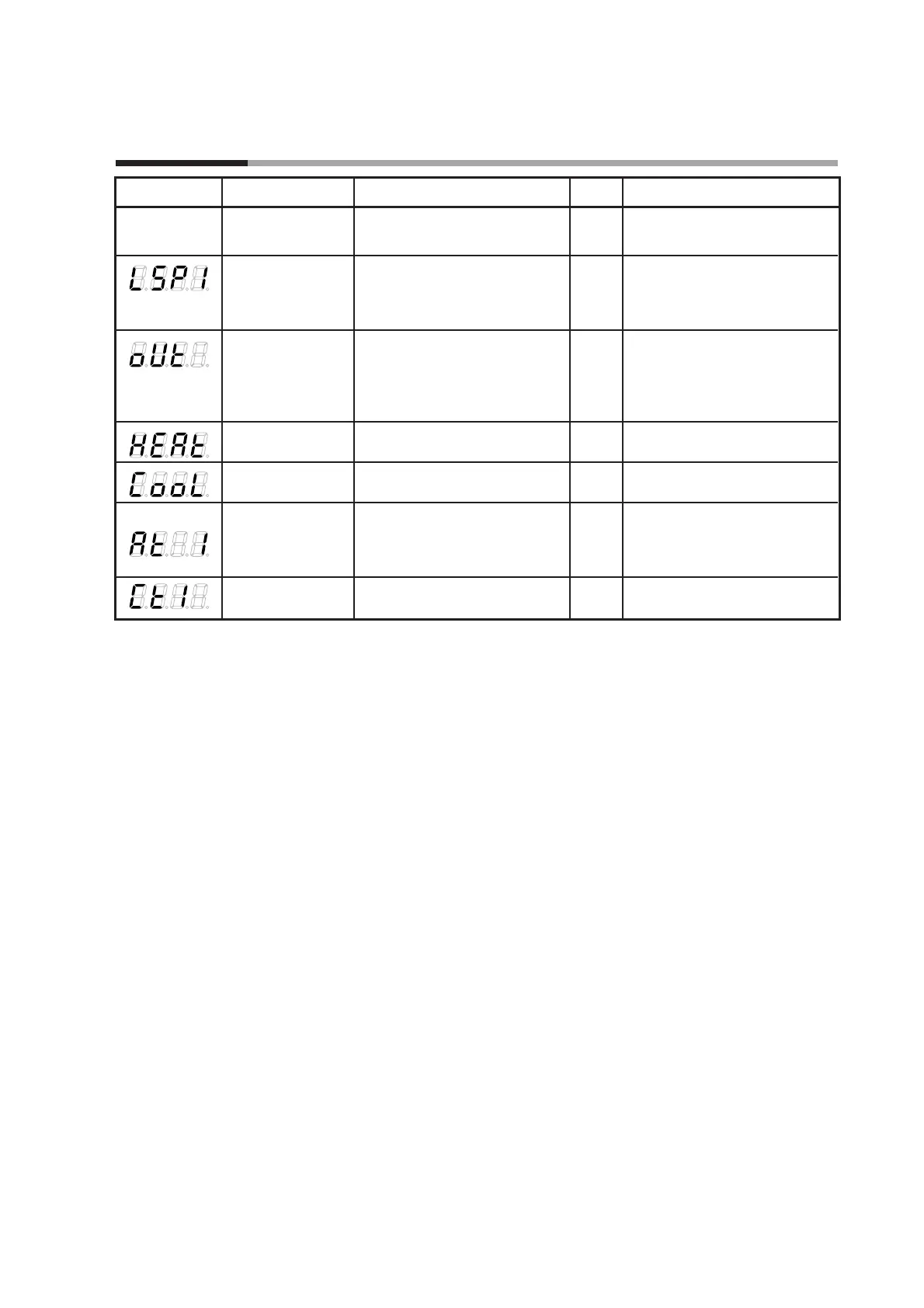

7 - 1 List of Operation Displays
7-1
Display Item Contents
Initial value
Notes
Display No.1: PV SP (Target value) SP low limit (C07) to 0
Display No.2: SP SP high limit (C08)
LSP No. (1st digit: Value
1 to LSP system group (Max. 4) 1 Displayed when [LSP system
at the right end digit) group] (C30) is 2 or more.
Display No.2: SP The display No. 2 shows the SP set
value corresponding to the LSP No.
MV (Manipulated -10.0 to 110.0% — In the ON/OFF control, "100.0" is
Variable) Setting is disabled in AUTO mode. displayed at ON and "0.0" is
(Numeric value does not flash.) displayed at OFF.
Setting is enabled in MANUAL mode.
(Numeric value flashes.)
Heat MV (Manipulated Setting is disabled. — Displayed when using the heat cool
Variable) control (C26=1).
Cool MV (Manipulated Setting is disabled. — Displayed when using the heat/cool
Variable) control (C26=1).
Display No. 1: PV AT progress display Setting is disabled. — The display mode is changed to the
(1st digit = Numeric 1 - : During execution of AT (Value is AT progress display mode only when
value at right end digit) decreased.) the AT is running in this unit.
0: Completion of AT
CT (Current transformer)
Setting is disabled. — Displayed when the optional model
current value 1 has two current transformer points.
