2-5
■ [mode] key operating procedures
When the [mode] key is kept pressed for 1 sec. or longer on the operation display,
the selection operation, which has been set using the [mode] key function ([C72])
of the setup setting, can be performed.

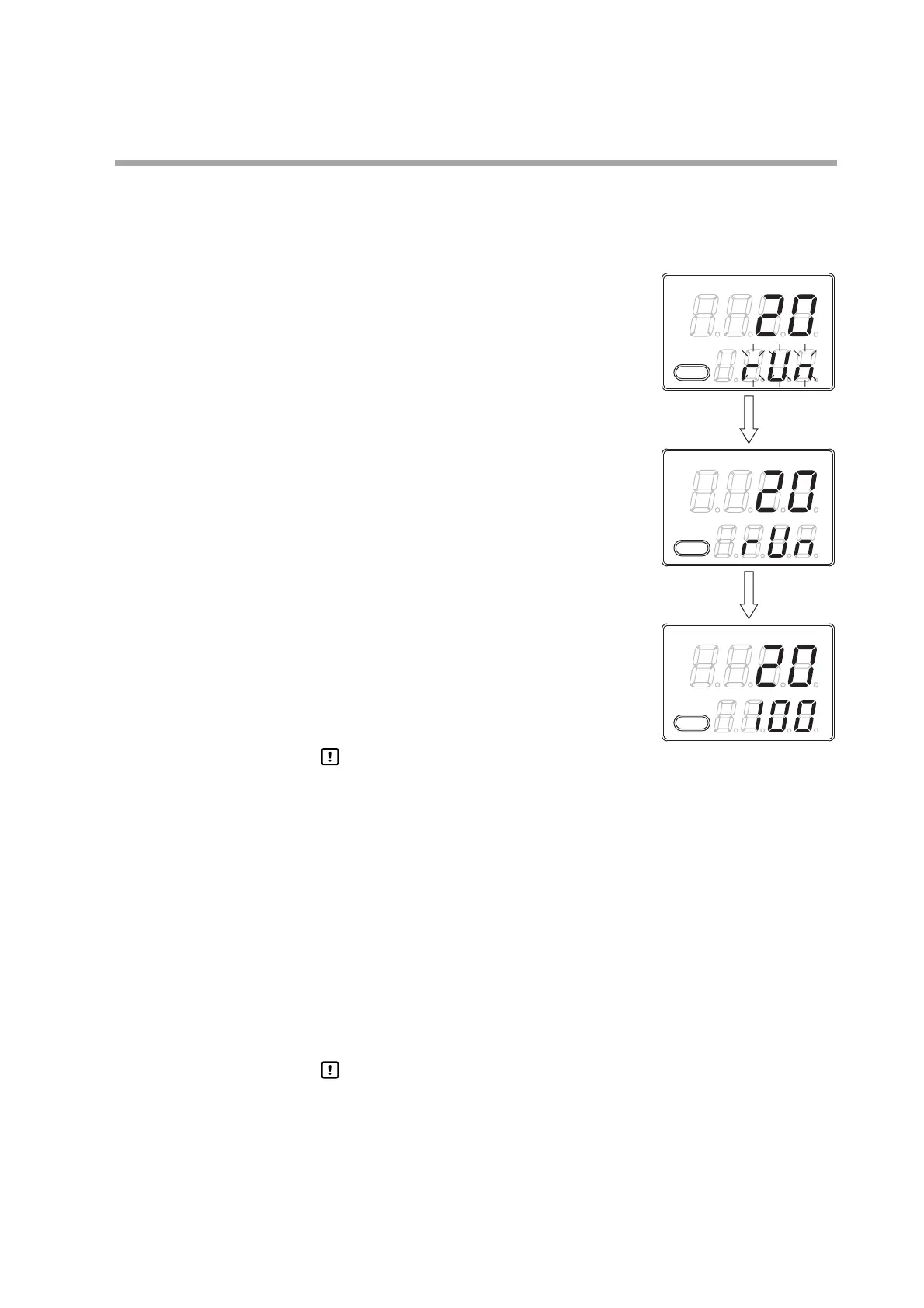

The Figure on the right shows an example that the
[mode] key is pressed in the RUN/READY
selection ([C72] = 2) setting.
(1) If the current mode is the READY mode when
the PV/SP is shown on the operation display, the
character string "rUn" on the display No. 2 starts
flashing.
(2) When the [mode] key is kept pressed for 1 sec.
or longer, the READY mode is changed to the
RUN mode and the flashing of the character
string "rUn" is stopped.
(3) When pressing of the [mode] key is stopped, the
display is returned to the PV/SP display.
Handling Precautions
• If the MODE key function of the setup setting is set disabled ([C72] =
0) or if the set selection operation is invalid, the selection operation
cannot be performed using the [mode] key.
• When pressing the [mode] key on the parameter setting display or
setup setting display instead of the operation display, the display is
returned to the operation display. However, even though the [mode]
key is kept pressed continually, the selection operation cannot be
performed. In this case, stop pressing the key once, and then press
the [mode] key.
The user level of this unit can be selected from three levels, "Simple
configuration", "Standard configuration", and "High function configuration".
Handling Precautions
Even though the user level is changed, the functions other than setting
display cannot be changed. The user level is set to "Standard
configuration" or "High function configuration" and more advanced
functions are set. After that, when the setup is returned to "Simple
configuration", this function setup cannot be displayed, but the function
itself is operated.
Chapter 2. OUTLINE OF FUNCTIONS
