Azbil SDC15 - Page 37

4-5

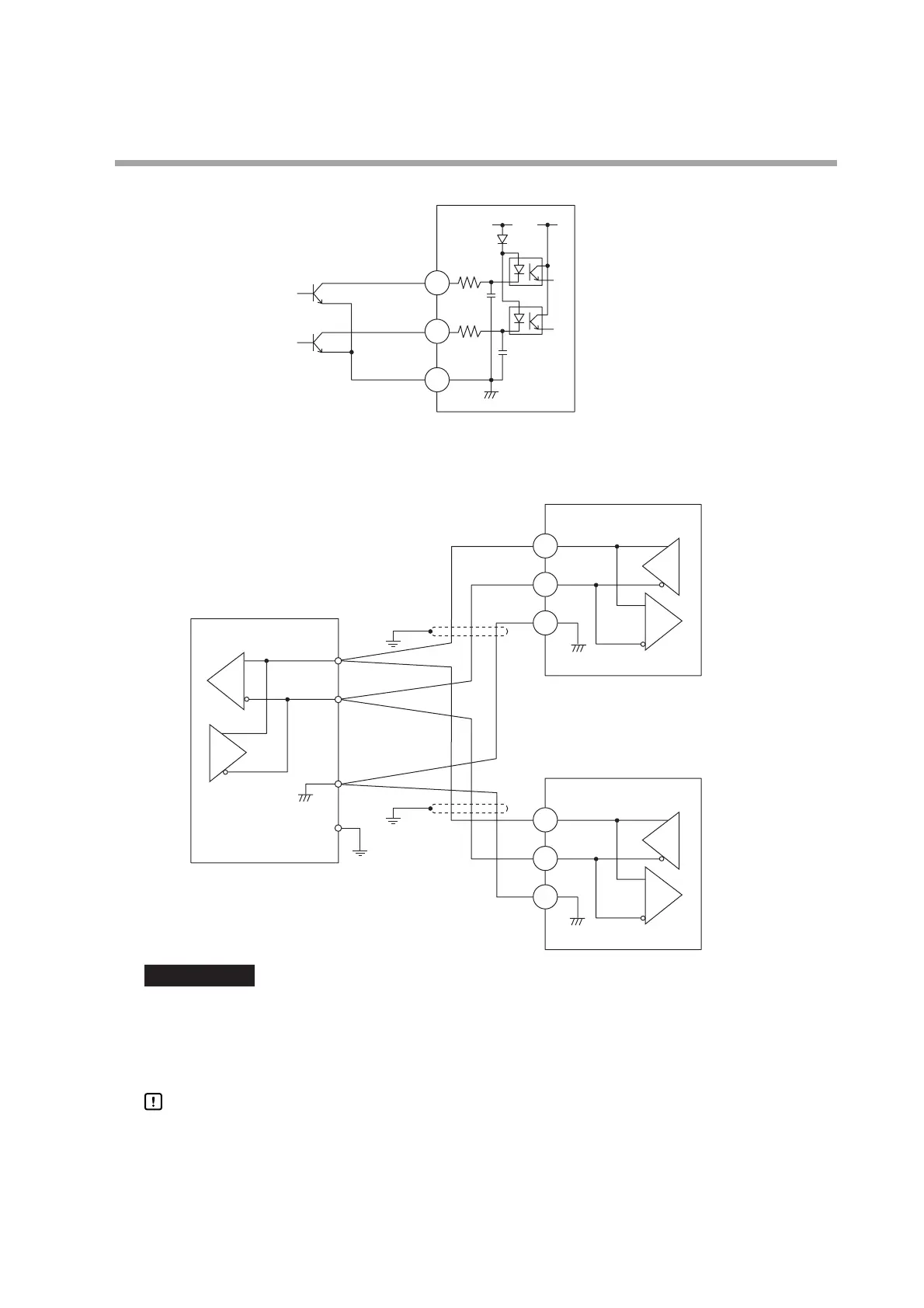

■ Connection of open collector output to digital input
■ Connection of (RS-485) communication cable
● 3-wire system
• Do not connect any terminating resistor to both ends of the
communication path. Doing so might cause the communication to
fail.
• Even though any units requiring the terminating resistor exist in the
communication path, do not connect any terminating resistor.
Handling Precautions
• Do not connect DA and DB. Doing so might cause damage to this
unit.
• Ground the shield line to one point on one side of the cable.
• Be sure to connect SG terminals each other.
Failure to do so might cause unstable communications.
Important
16
17
18
16
Master station
DA
DA
DB
DB
SG
SG
SG
FG
+
-
This unit (slave station)
This unit (slave station)
Shield
Shield
17
18
16
17
18
5V
Chapter 4. WIRING
