■ Event Direct/Reverse, standby, and Event state at READY setup

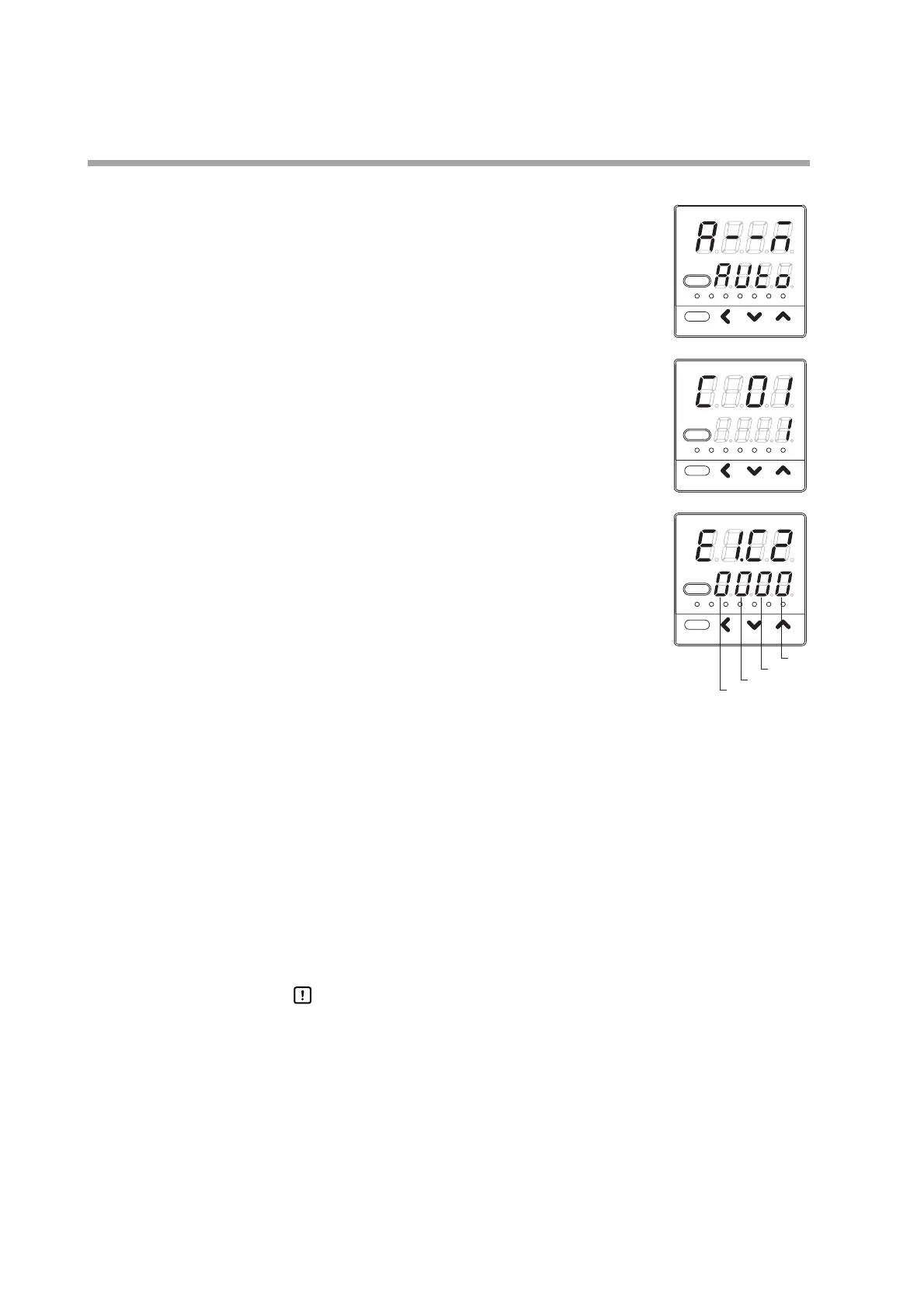

(1) In the operation display mode, keep the [para] key
pressed for 2 sec. or longer.
>> The unit then enters the parameter setting mode.
(2) In the parameter setting display mode, keep the [para]
key pressed for 2 sec. or longer.
>> The display is then changed to the setup setting
display.
(3) Press the [para] key several times.
>> Display the setup setting [E1.C2:Internal Event 1
Direct/Reverse].
(4) Press the [<], [], or []key to set the value you have
selected from the following in [E1.C1].
1st digit Reverse
0: Not reversed.
1: Reversed.
2nd digit Standby
0: Standby not provided
1: Standby provided
2: Standby + Standby at SP change
3rd digit Event state at READY
0: Continue
1: Forced OFF
4th digit Undefined
>> When no keys are pressed for 2 sec. or longer, the flashing of the numeric
value is stopped to set the currently displayed value.
(5) Press the [mode] key.
>> The display is returned to the operation display.
Handling Precautions
• The standby is a function that disables to turn ON the event even
though the event in operation satisfies the ON conditions (before
reverse) when the instrument power is turned ON or when the mode
is changed from READY to RUN. The event is turned ON when the
OFF conditions are satisfied once, and then the ON conditions are
satisfied again.
• The standby + standby at SP change means that the standby is set
again if the SP (SP value or SP group No.) is changed in addition to
the normal standby.
• The internal event 2 to 5 direct/reverse, standby, and Event state at
READY displays are [E2.C2], [E3.C2], [E4.C2], and [E5.C2].
• When the internal event operation type is [0: No event], the internal
event direct/reverse is not displayed.
