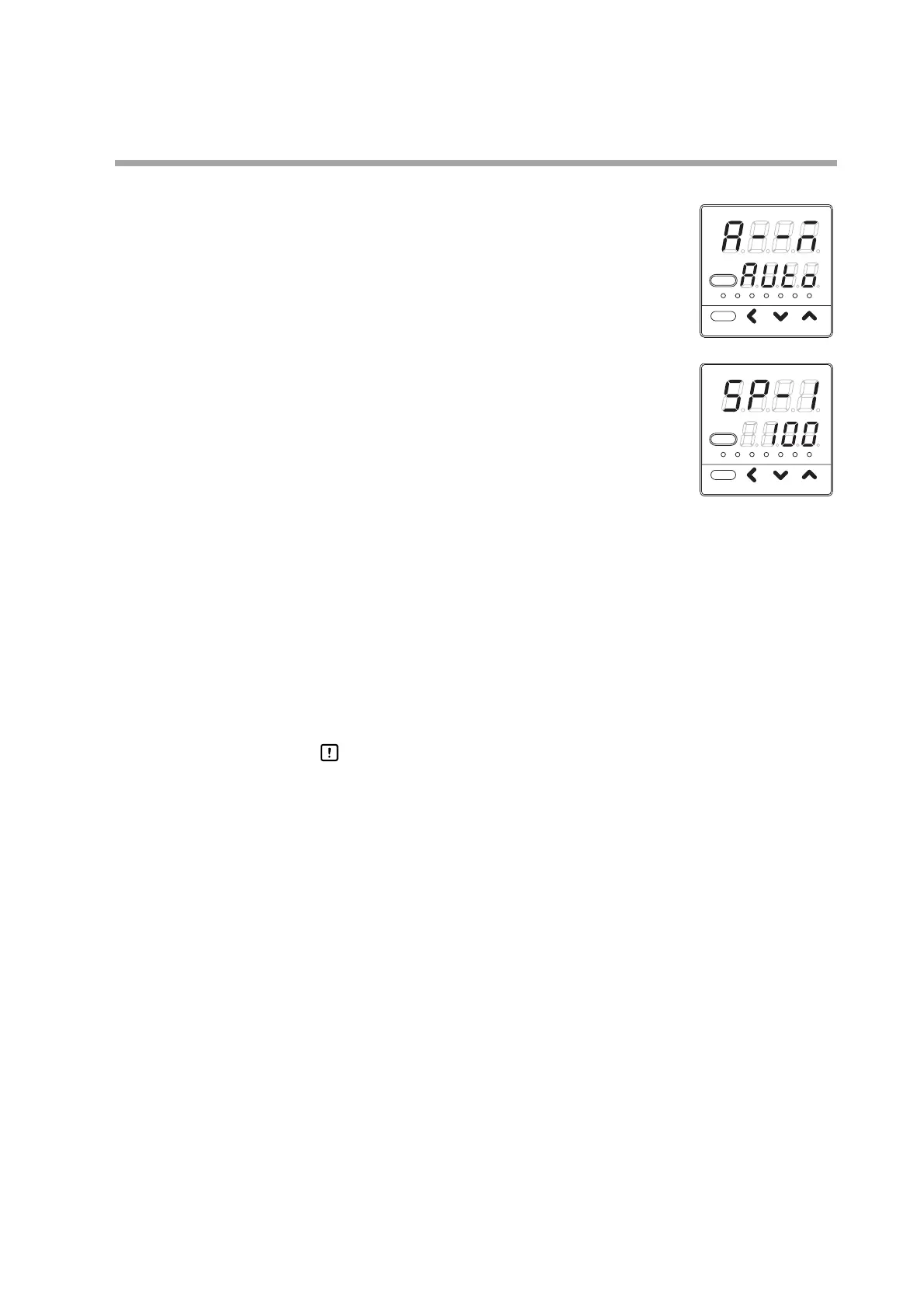

■ SP setup in parameter setting display mode
(1) In the operation display mode, keep the [para] key
pressed for 2 sec. or longer.
>> The unit then enters the parameter setting mode.
(2) Press the [para] key several times.
>> Display the setup setting [SP-1: SP of SP1 group].
(3) Press the [<], [], or []key to change the set value
in [SP-1].
Setting range: SP low limit to SP high limit
However, the PV input range low limit/high limit have
already been set for the SP low limit/high limit.
>> When no keys are pressed for 2 sec. or longer, the flashing of the numeric
value is stopped to set the currently displayed value.
(4) Press the [mode] key.
>> The display is returned to the operation display.
Handling Precautions
When the LSP groups are set up with the setup setting [C30: LSP
system group], up to four groups, [SP-1], [SP-2], [SP-3], and [SP-4]
can be used.
<
<
Chapter 6. SETTINGS DURING OPERATION
rdy
man
ev1 ev2 ev3 ot1 ot2
para
mode
pv
sp
rdy
man
ev1 ev2 ev3 ot1 ot2
para
mode
pv
sp
