Badger Meter ModMAG M2000 Installation And Operation Manual

Power connections Page 11/44
MID_M2000_BA_02_1004
BA17MID
weiß (45)
braun (46)
pink (40)
schwarz (44)
schwarz (44)
gelb/grün (13)
gelb (12)
grün (11)
5 bis 300 m
grün (11)
gelb (12)
pink (40)
weiß (45)
braun (46)
schwarz (44)
schwarz (44)
gelb/grün (13)
5 to 300 m
pink

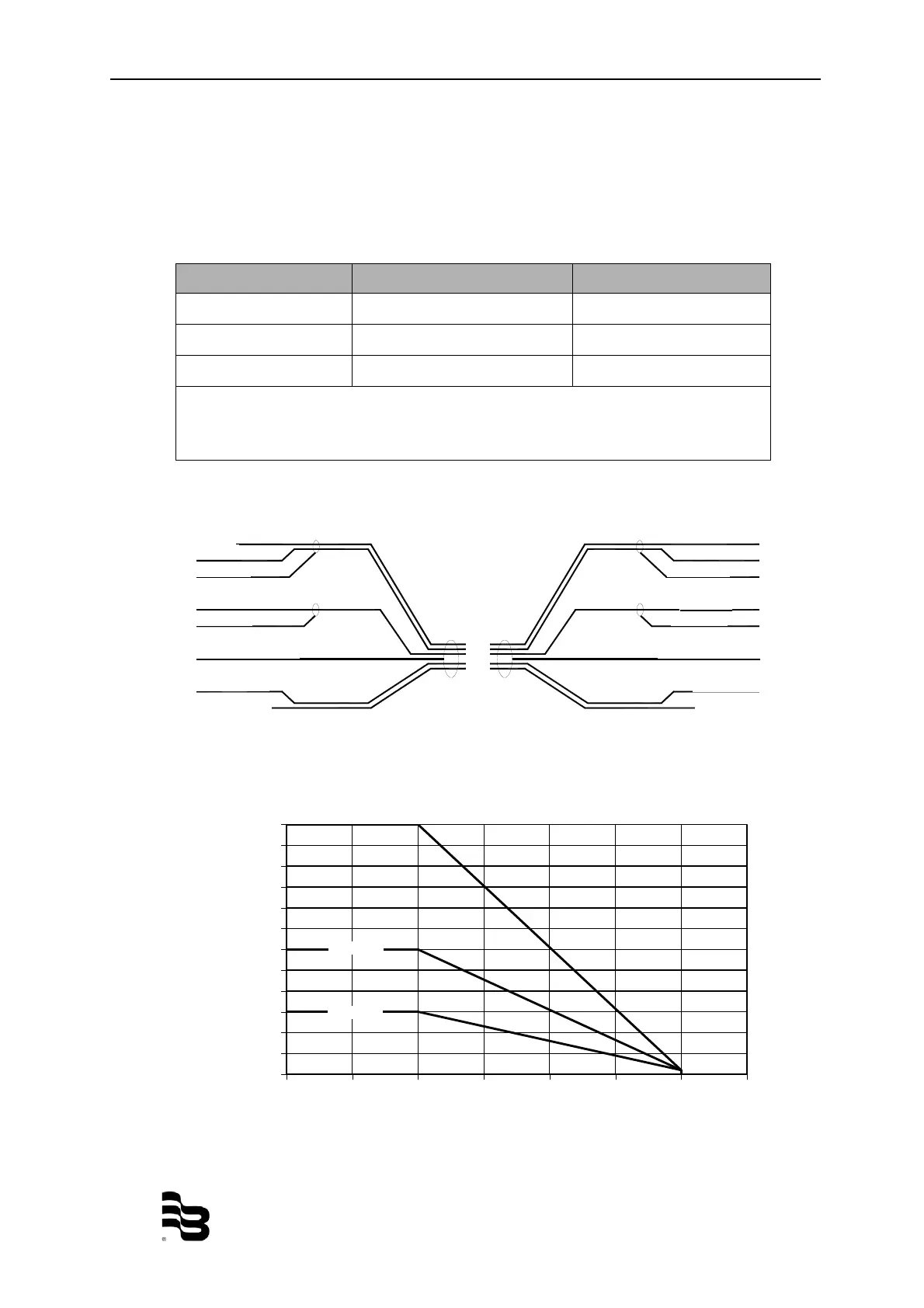

4.2.1 Signal cable specification
Note: • Only use signal cables delivered by Badger Meter or corresponding
cable in accordance with the following specification.
• Take max. signal cable length between detector and amplifier into
account (keep distance as low as possible).
Distance With electrode idle Loop resistance
0 – 75 m 3 x (2 x 0,25 mm²)
=< 160 Ω/km
> 75 – 150 m 3 x (2 x 0,50 mm²)
=< 80 Ω/km
> 150 – 300 m 3 x (2 x 0,75 mm²)
=< 40 Ω/km
PVC cable with pair and total shield
Capacity: wire/wire < 120 nF/km, wire/shield < 160 nF/km
Temperature range –30 to +70 °C
Maximum cable length at different fluid temperatures
0
25
50
75
100
125
150
175
200
225
250
275
300
0 25 50 75 100 125 150 175
Temperature [°C]
Cable length [m]
0
,
25 mm²
0
,
5 mm²
0
,
75 mm²
BA17MID
white
white
brown
brown
black black
black black
yellow/green (13) yellow/green (13)
yellow (12)
yellow (12)
green (11) green (11)

Badger Meter ModMAG M2000 Specifications

General

Flow Measurement Technology	Electromagnetic
Enclosure Rating	NEMA 4X (IP66)
Repeatability	±0.1% of rate
Output	4-20 mA, pulse, frequency
Display	LCD with backlight
Power Supply	100 to 240 VAC or 24 VDC
Communication Protocols	HART, Modbus
Process Connection	Flanged, Threaded
Electrode Material	316 Stainless Steel, Hastelloy, Tantalum
Liner Material	PTFE, PFA, Polyurethane
Accuracy	±0.2% of rate
Temperature Range	-40°...160°F (-40°...71°C)
Fluid Temperature	-4°...302°F (-20°...150°C)
Materials	Stainless Steel, Carbon Steel
