Badger Meter ModMAG M2000 Installation And Operation Manual

Programming Page 19/44
MID_M2000_BA_02_1004

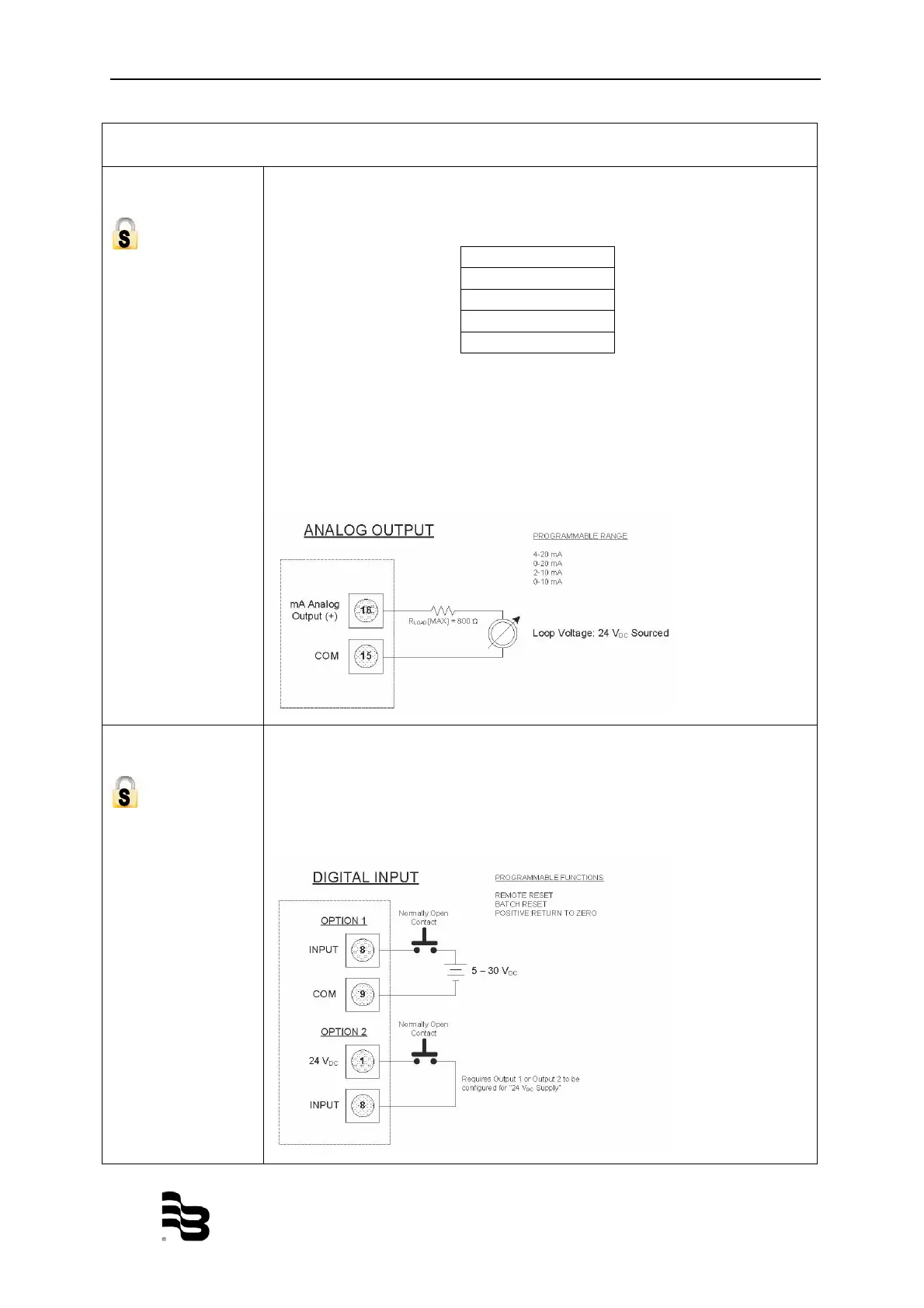

5.2.3 Inputs and Outputs
Analog Output
This parameter establishes the range of the analog output signal: 0 to
100% (= full scale). The following current ranges are available to you:
Note:
In case that an error message is displayed, set current to 22 mA. In
case that you select bidirectional operation, you can signal flow
direction via digital outputs.
Also see full scale setting.
Digital Input
Digital input lets you reset totalizers, preselections or interrupt flow
measurement.
Input switching is provided by applying an external potential of 5 to 30
VDC or by an internal voltage source of 24 VDC.
Current output
0 to 20 mA
4 to 20 mA
0 to 10 mA
2 to 10 mA

Badger Meter ModMAG M2000 Specifications

General

Flow Measurement Technology	Electromagnetic
Enclosure Rating	NEMA 4X (IP66)
Repeatability	±0.1% of rate
Output	4-20 mA, pulse, frequency
Display	LCD with backlight
Power Supply	100 to 240 VAC or 24 VDC
Communication Protocols	HART, Modbus
Process Connection	Flanged, Threaded
Electrode Material	316 Stainless Steel, Hastelloy, Tantalum
Liner Material	PTFE, PFA, Polyurethane
Accuracy	±0.2% of rate
Temperature Range	-40°...160°F (-40°...71°C)
Fluid Temperature	-4°...302°F (-20°...150°C)
Materials	Stainless Steel, Carbon Steel
