7.5 Error limits
Measuring range : 0,03 m/sec. to 12 m/sec.
Pulse output : ≥ 0,5 m/sec. ±0,25%
< 0,5 m/sec. ± 1,25 mm/sec.
Analog output : Similar to pulse output plus ±0,01 mA
Reproducibility : ±0,1%
Fehlerkurve MID M2000
0%
1%
2%
3%
4%
5%
012345678910
Mediumsgeschwindigkeit v[m/s]
Meßfehler in % v.M.
Reference conditions:
Ambient and
fluid temperature : 20°C
Electr. conductivity : > 300 μS/cm
Warm-up period : 60 min
Mounting conditions : > 10 DN inlet pipe
> 5 DN outlet pipe
Detector properly grounded and centered.

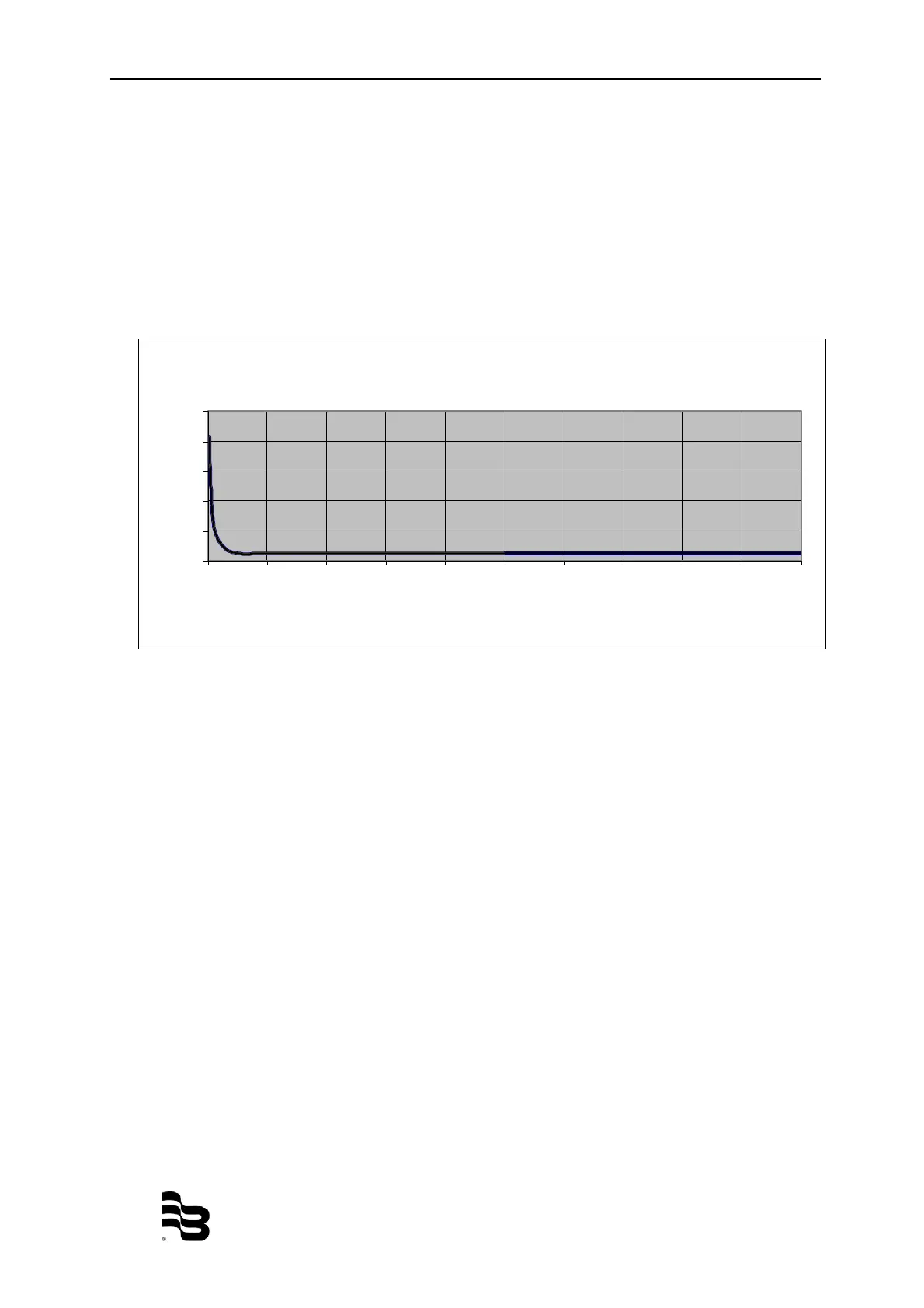

Error curve MAG meter M2000
Fluid velocity v[m/sec.]
Measurement errors in %
