Badger Meter ModMAG M2000 Installation And Operation Manual

Technical data Page 38/44
MID_M2000_BA_02_1004
B1
122
120
80
DN
M2000-5
D
A
99180
180
M20 (x3)
281
60
Ø
5
.
2
65
A
B2
DN
M2000-4
D
180
180
M20 (x3)
8
3

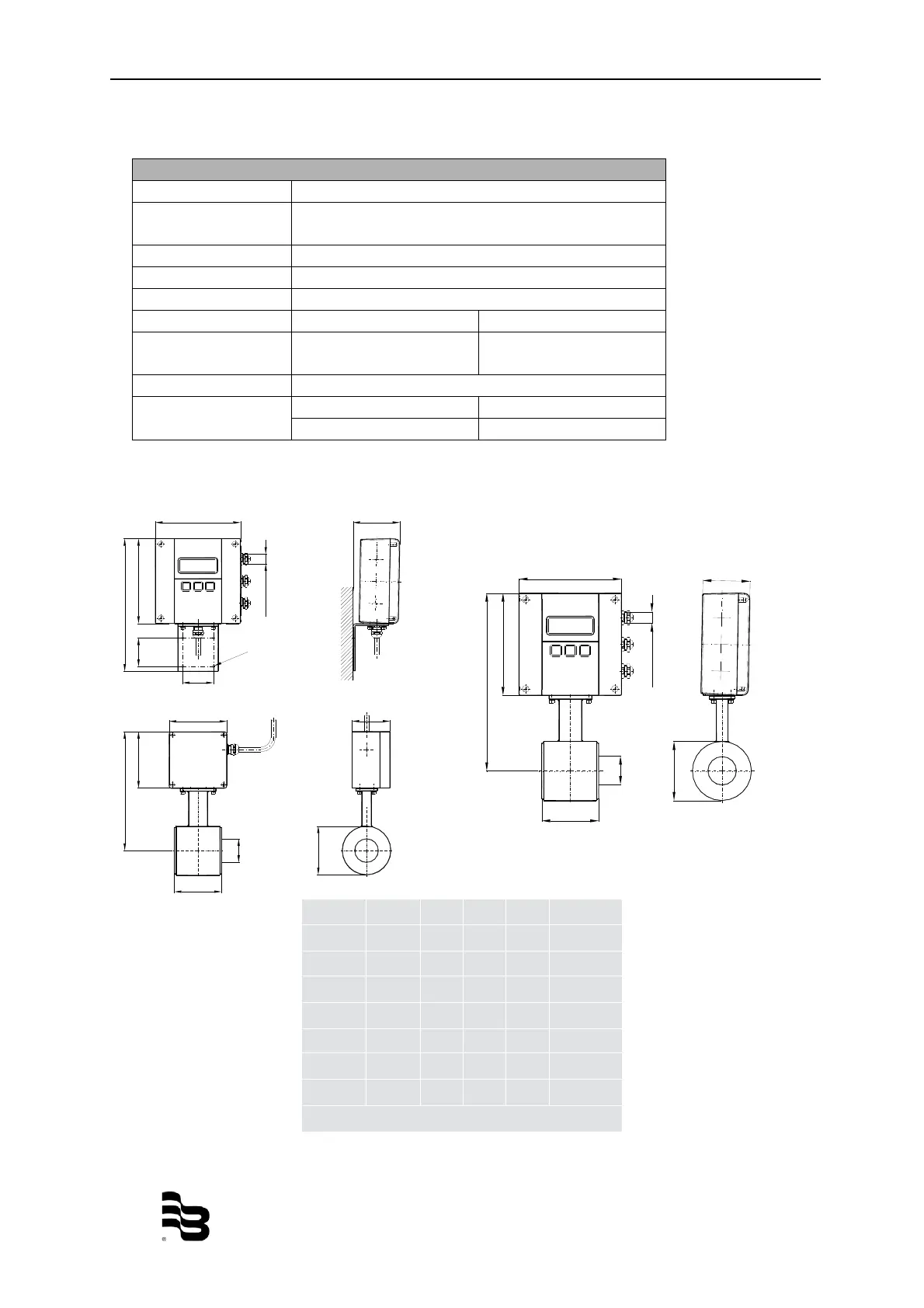

7.3 Detector Type III
Technical Data
Size DN 25 – 100 (1“...4“)
Process connections Sandwich connection,
(intermediate flange mounting)
Nominal pressure PN 40
Protective class IP 67, IP 68 optional
Min. conductivity 5 µS/cm (20 µS/cm demineralized water)
Liner PTFE -40 to +150°C
Electrodes Hastelloy C (Standard)
Tantalum
Platinum/Gold platinized
Platinum/Rhodium
Body Steel/stainless steel optional
Overall length DN 25 – 50 100 mm
DN 65 – 100 150 mm
Sandwich connection Sandwich connection
M2000
®
wall mounting M2000
®
mounted version
DN A B1 B2 D
25 1” 100 238 184 74
32 1 ¼“ 100 243 189 84
40 1 ½“ 100 248 194 94
50 2” 100 253 199 104
65 2 ½“” 150 266 212 129
80 3” 150 271 217 140
100 4” 150 279 225 156
Pressure PN 40

Badger Meter ModMAG M2000 Specifications

General

Flow Measurement Technology	Electromagnetic
Enclosure Rating	NEMA 4X (IP66)
Repeatability	±0.1% of rate
Output	4-20 mA, pulse, frequency
Display	LCD with backlight
Power Supply	100 to 240 VAC or 24 VDC
Communication Protocols	HART, Modbus
Process Connection	Flanged, Threaded
Electrode Material	316 Stainless Steel, Hastelloy, Tantalum
Liner Material	PTFE, PFA, Polyurethane
Accuracy	±0.2% of rate
Temperature Range	-40°...160°F (-40°...71°C)
Fluid Temperature	-4°...302°F (-20°...150°C)
Materials	Stainless Steel, Carbon Steel
