Technical data Page 37/44
MID_M2000_BA_02_1004
B2
A
180
D
DN
M2000-8
M20 (x3)
8
3
180
A
B2
D
DN
M2000-9
M20 (x3)
8
3
180
180

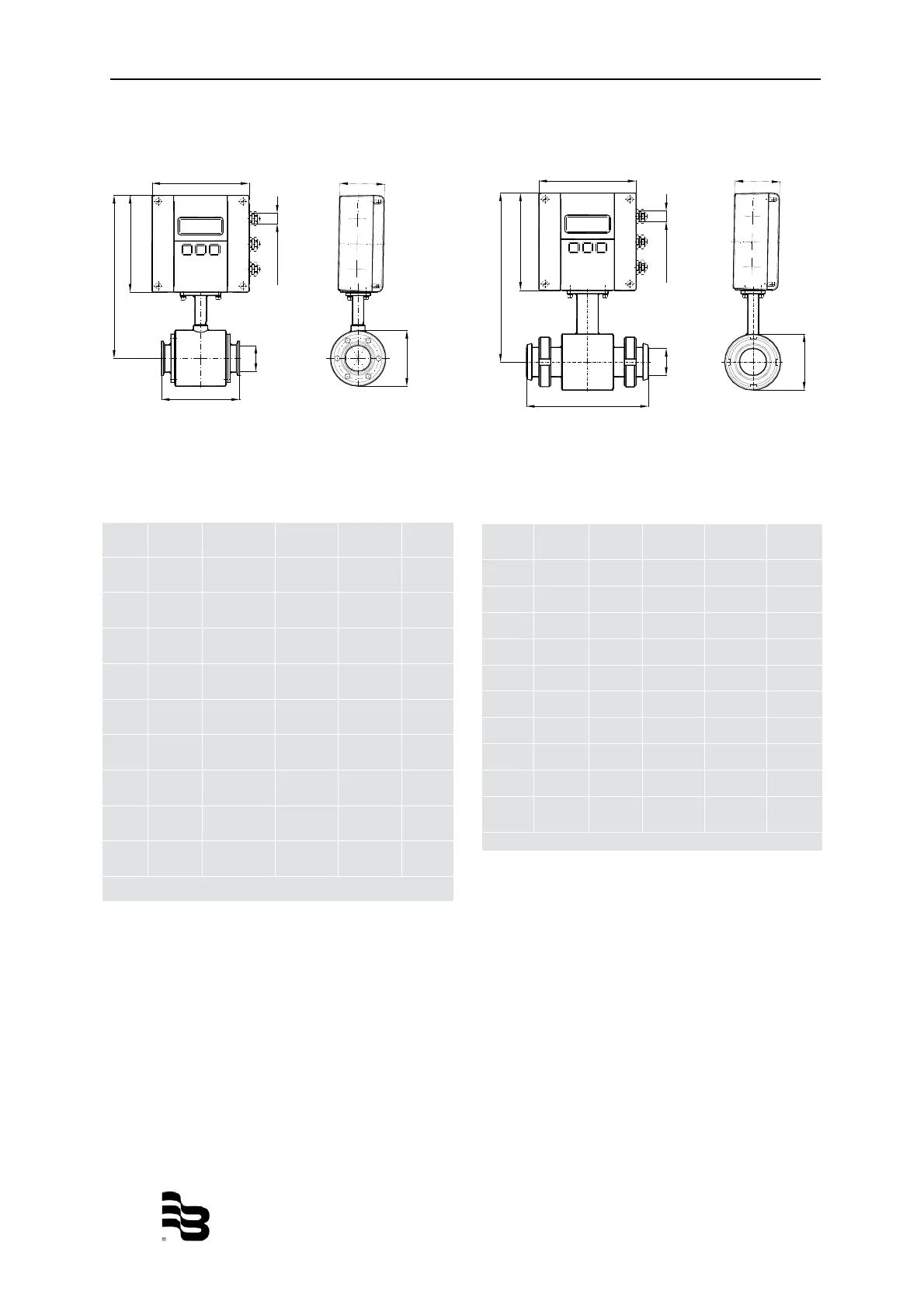

Process connection Tri-Clamp
®
Process connection DIN 11851
M2000
®
mounted version M2000
®
mounted version
Type Food Tri-Clamp
®
Type Food Milk Pipe DIN 11851
DN A B1 B2 D
10 3/8” 145 228 174 74
15 1/2” 145 228 174 74
20 3/4” 145 228 174 74
25 1” 145 228 174 74
40 1 ½“ 145 238 184 94
50 2” 145 243 189 104
65 2 ½“ 200 256 202 129
80 3” 200 261 207 140
100 4” 200 269 215 156
Pressure PN 10 Dimensions (mm)
DN A B1 B2 D
10 3/8” 170 238 184 74
15 1/2” 170 238 184 74
20 3/4” 170 238 184 74
25 1” 225 238 184 74
32 1 ¼“ 225 243 189 84
40 1 ½“ 225 248 194 94
50 2” 225 253 199 104
65 2 ½“ 280 266 212 129
80 3” 280 271 217 140
100 4” 280 279 225 156
Pressure PN 16 Dimensions (mm)
