Badger Meter ModMAG M2000 - Meter Location

Installation Page 5/44
MID_M2000_BA_02_1004
BA2000-11-MID
h > 2 x DN
BA2000-12-MID
>
3
-
5
x
D
N
>
2
x
D
N
BA2000-13-MID
BA2000-14-MID

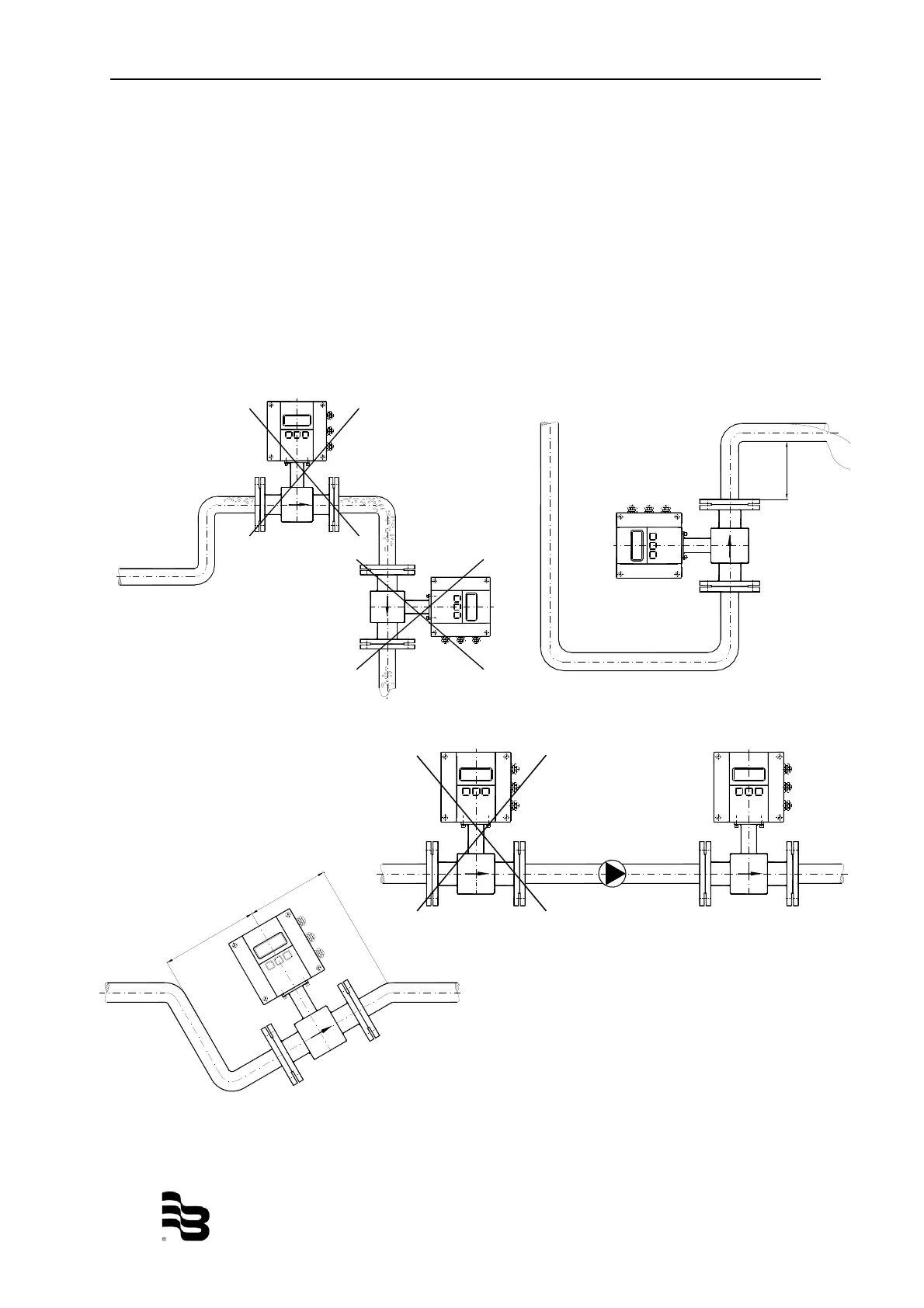

3.2.3 Meter location
Caution: • Do not install the detector on the suction sides of pumps. This could
damage the liner (in particular PTFE liners).
• Verify that the pipeline is always filled on the measuring point, if not - a
correct or accurate measurement is not possible.
• Do not install the detector on the highest point of a pipeline system.
Gas accumulation may follow.
• Do not install the detector in downcomer pipes with free outlet.
• Do not install the detector on pipes with vibrations. If pipes are strongly
vibrating, make sure that detector and amplifier are separated
(separate version).
