Badger Meter ModMAG M2000 Installation And Operation Manual

Technical data Page 34/44
MID_M2000_BA_02_1004
A
122
80
B1
120
K
D
d
2 x n
M2000-3
DN
99180
180
M20 (x3)
281
60
Ø
5
.
2
65
A
B2
K
D
d2
x
n
DN
M2000-2
180
180
M20 (x3)
8
3

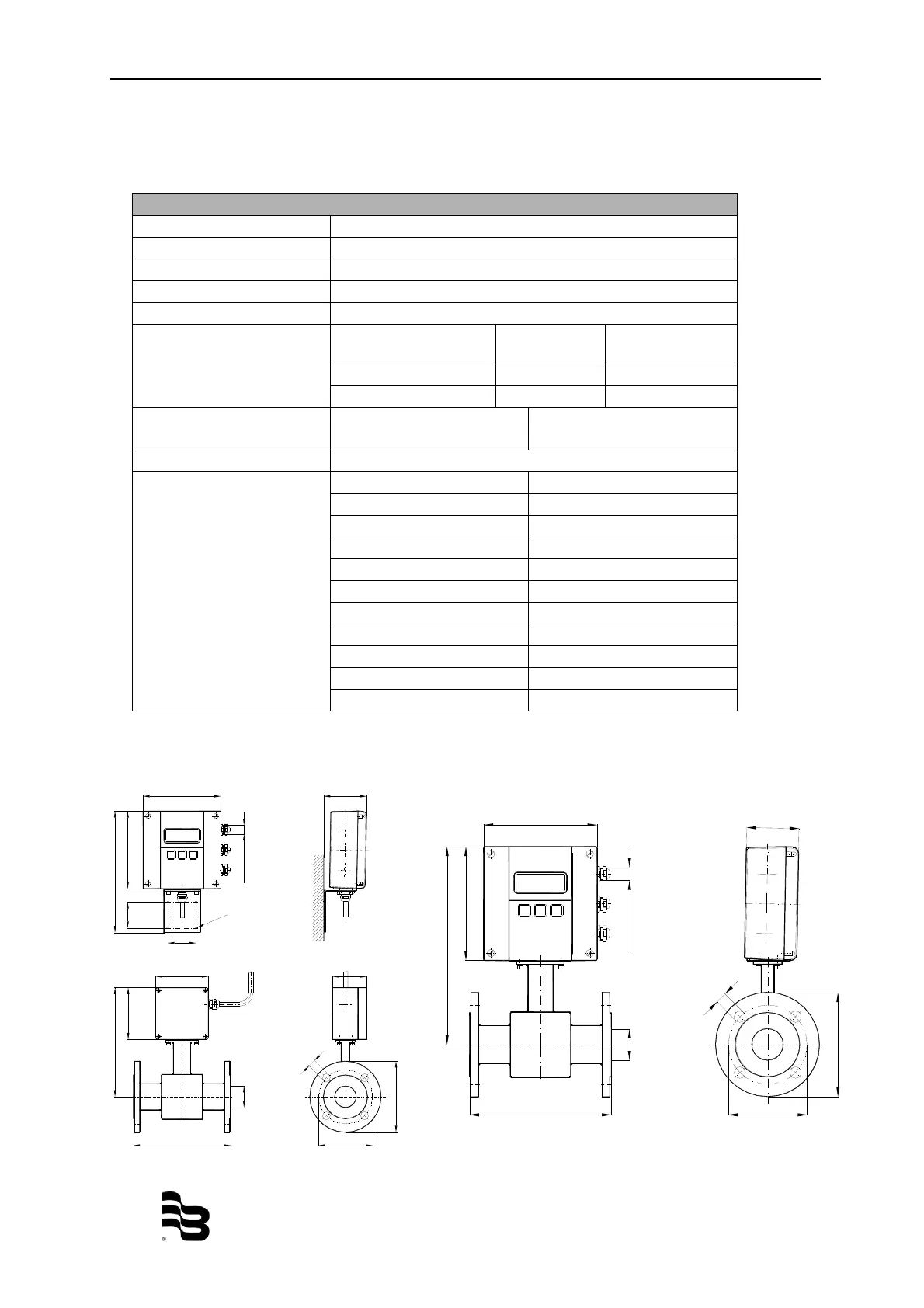

7. Technical data
7.1 Detector Type II
Technical data
Size DN 6 – 2000 (1/4“...80“)
Process connections Flange: DIN, ANSI, JIS, AWWA etc.
Nominal pressure Up to PN 100
Protection class IP 67, IP 68 optional
Min. conductivity 5 µS/cm (20 µS/cm demineralized water)
Liners Hard/soft rubber
from DN 25
onward
0 to +80°C
PTFE DN 6 - 600 -40 to +150°C
Halar (ECTFE) ab DN 300 -40 to +150°C
Electrodes Hastelloy C (Standard)
Tantalum
Platinum/Gold platinized
Platinum/Rhodium
Body Steel/stainless steel optional
Overall length DN 6 – 20 170 mm
DN 25 – 50 225 mm
DN 65 – 100 280 mm
DN 125 – 200 400 mm
DN 250 – 350 500 mm
DN 400 – 750 600 mm
DN 800 – 1000 800 mm
DN 1200 – 1400 1000 mm
DN 1600 1600 mm
DN 1800 1800 mm
DN 2000 2000 mm
Process connection flange Process connection flange
M2000
®
wall mounting M2000
®
mounted version

Badger Meter ModMAG M2000 Specifications

General

Flow Measurement Technology	Electromagnetic
Enclosure Rating	NEMA 4X (IP66)
Repeatability	±0.1% of rate
Output	4-20 mA, pulse, frequency
Display	LCD with backlight
Power Supply	100 to 240 VAC or 24 VDC
Communication Protocols	HART, Modbus
Process Connection	Flanged, Threaded
Electrode Material	316 Stainless Steel, Hastelloy, Tantalum
Liner Material	PTFE, PFA, Polyurethane
Accuracy	±0.2% of rate
Temperature Range	-40°...160°F (-40°...71°C)
Fluid Temperature	-4°...302°F (-20°...150°C)
Materials	Stainless Steel, Carbon Steel
