Badger Meter ModMAG M2000 Installation And Operation Manual

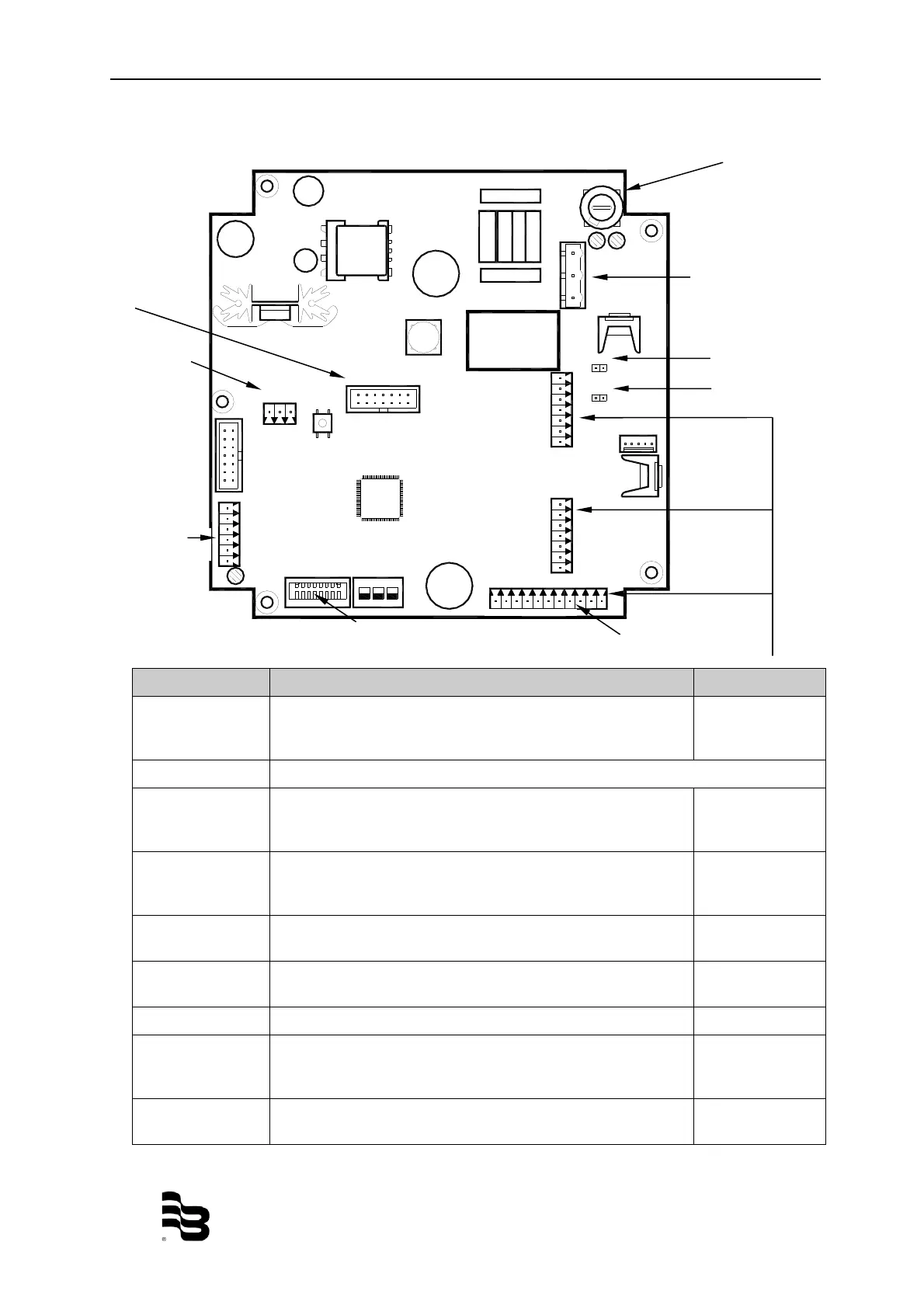

Power connections Page 12/44
MID_M2000_BA_02_1004
BA2000-22MID
LNPE
JP1
JP2
COMMUNICATION
DISPLAY
CS C2 C1
E1
ES
E2
RS
EP
ES
15 16
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Communication
4.3 Configuring input/output (I/O)
Displ
Input/Output Description Terminal
Analog output 0 - 20 mA
4 - 20 mA RL < 800 Ohm
0 - 10 mA
16 (+)
15 (-)
Digital output
1 Open collector max. 10 kHz
* Passive max. 30 VDC, 100 mA
* Active 24 VDC, 50 mA (Jumper JP1 placed)
1 (+) and 2 (-)
2 Open collector max. 10 kHz
* Passive max. 30 VDC, 100 mA
* Active 24 VDC, 50 mA (Jumper JP2 placed)
3 (+) and 4 (-)
3 Open collector passive max. 30 VDC, 100 mA, max. 10 kHz
or Solid State Relais max. 48 VAC, 500 mA, max 1 kHz
10 (+) and 11 (-)
4 Open collector passive max. 30 VDC, 100 mA, max. 10 kHz
or Solid State Relais max. 48 VAC, 500 mA, max 1 kHz
13 (+) and 14 (-)
Digital input 5 - 30 VDC 8 (+) and 9 (-)
RS 232 Remote display information or
Modbus RTU
7 GND
6 RxD
5 TxD
Communication Optional communication ports like
HART, Profibus DP, Modbus
Communication
A
uxiliary powe
r
Fuse
Display
Coil detector
Electrodes
detector
Jumper JP1
Jumper JP2
Memory token

Badger Meter ModMAG M2000 Specifications

General

Flow Measurement Technology	Electromagnetic
Enclosure Rating	NEMA 4X (IP66)
Repeatability	±0.1% of rate
Output	4-20 mA, pulse, frequency
Display	LCD with backlight
Power Supply	100 to 240 VAC or 24 VDC
Communication Protocols	HART, Modbus
Process Connection	Flanged, Threaded
Electrode Material	316 Stainless Steel, Hastelloy, Tantalum
Liner Material	PTFE, PFA, Polyurethane
Accuracy	±0.2% of rate
Temperature Range	-40°...160°F (-40°...71°C)
Fluid Temperature	-4°...302°F (-20°...150°C)
Materials	Stainless Steel, Carbon Steel
