Badger Meter ModMAG M2000 Installation And Operation Manual

Technical data Page 39/44
MID_M2000_BA_02_1004
99180
180
M20 (x3)
281
M2000-1
60
Ø
5
.
2
65

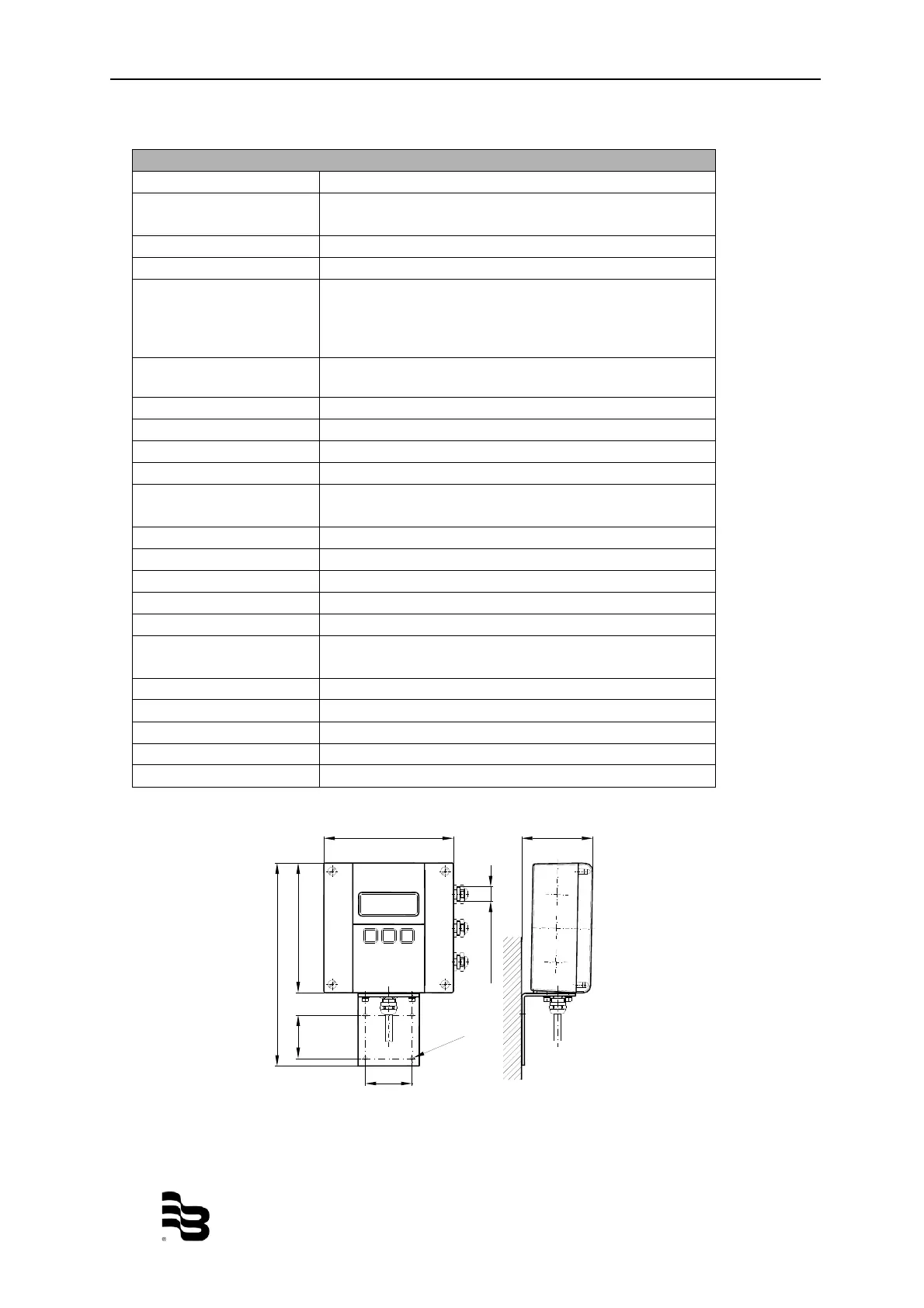

7.4 Meter type M2000
®
Technical data
Type M2000
®
Auxiliary power 85 – 265 VAC, 45 – 65 Hz
Optional 24 VDC (-10% … +20%), 900 mA
Analog output 0/4 – 20 mA, ≤ 800 Ohm
Flow direction is displayed via separate status output
Digital outputs
4 freely configurable open collector outputs
Active 24 V, 50 mA or Passiv 30 VDC, 100 mA
max. frequency of 10 kHz
Pulse, limit, preselector, statur, error messages
Digital inputs
Totalizers and preselectors reset
Positive Zero Return
Fluid monitoring Separate electrode
Configuration 3 buttons
Ports RS 232 – Remote display or Modbus RTU
Measuring range 0,03 to 12 m/s
Measuring accuracy ≥ 0,5 m/sec. better ±0,25%
< 0,5 m/sec. ±1,25 mm/sec.
Reproducibility 0,1%
Flow direction Bidirectional
Pulse length Configurable up to 2000 msec.
Outputs Short-circuit-proof and galvanically separated
Low flow cutoff 0 – 10%
Display LCD, 4 lines/20 digits, backlight,
actual flow rate, totalizers, status display
Body Powder-coated alu die casting
Protective class IP 67
Cable inlet Supply and signal cables 3 x M20
Signal cable From meter M20
Ambient temperature -20 to + 60°C
Dimensions
M2000
®

Badger Meter ModMAG M2000 Specifications

General

Flow Measurement Technology	Electromagnetic
Enclosure Rating	NEMA 4X (IP66)
Repeatability	±0.1% of rate
Output	4-20 mA, pulse, frequency
Display	LCD with backlight
Power Supply	100 to 240 VAC or 24 VDC
Communication Protocols	HART, Modbus
Process Connection	Flanged, Threaded
Electrode Material	316 Stainless Steel, Hastelloy, Tantalum
Liner Material	PTFE, PFA, Polyurethane
Accuracy	±0.2% of rate
Temperature Range	-40°...160°F (-40°...71°C)
Fluid Temperature	-4°...302°F (-20°...150°C)
Materials	Stainless Steel, Carbon Steel
