Installation Page 7/44
MID_M2000_BA_02_1004
BA2000-16-MID

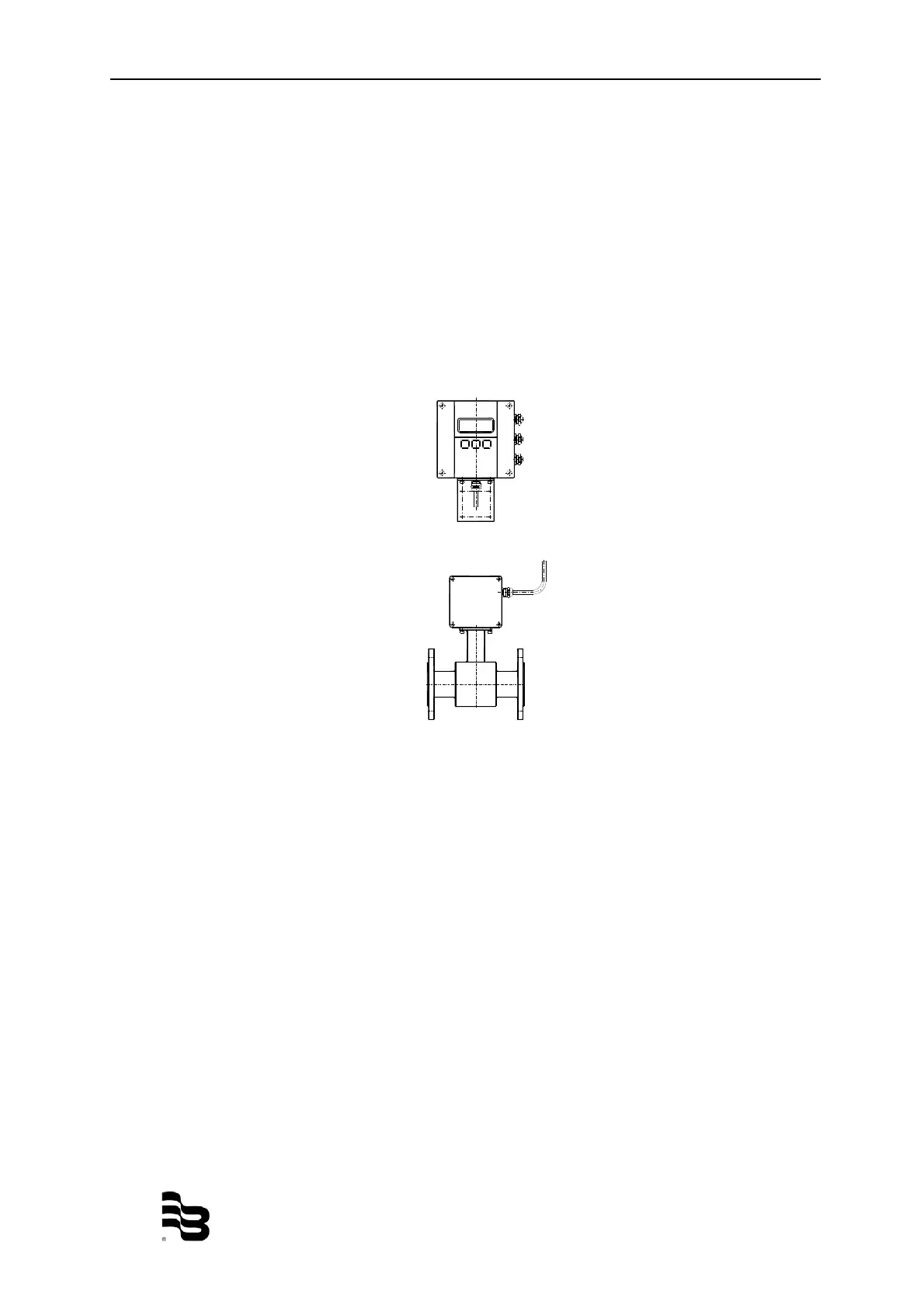

3.2.5 Separate version
Provide a separate version in the following cases:
Note: • Detector protection class IP 68
• Fluid temperature > 100 °C
• Strong vibrations
Caution: • Do not install the signal cable close to power cables, electric machines,
etc.
• Fix signal cables. Due to capacity changes, cable movements may
result in incorrect measurements.
3.2.6 Grounding and potential equalization
In order to obtain an accurate measurement, detector and fluid need to be on the
same electric potential.
If flange or intermediate flange versions with additional grounding electrode are used,
grounding is provided by the connected pipeline.
Caution: • In case of a type with flange a connection cable (min. 4 mm²) between
grounding screw on the meter’s flange to the counterflange is to be
used in addition to the fixing screws. Verify that a perfect electric
connection is provided.
• Color or corrosion on the counterflange may have a negative effect on
the electric connection.
• In case of types with intermediate flanges, the electric connection to
the detector is done via two ¼ AMP plugs installed on detector’s neck.

Badger Meter ModMAG M2000 Specifications

General

Flow Measurement Technology	Electromagnetic
Enclosure Rating	NEMA 4X (IP66)
Repeatability	±0.1% of rate
Output	4-20 mA, pulse, frequency
Display	LCD with backlight
Power Supply	100 to 240 VAC or 24 VDC
Communication Protocols	HART, Modbus
Process Connection	Flanged, Threaded
Electrode Material	316 Stainless Steel, Hastelloy, Tantalum
Liner Material	PTFE, PFA, Polyurethane
Accuracy	±0.2% of rate
Temperature Range	-40°...160°F (-40°...71°C)
Fluid Temperature	-4°...302°F (-20°...150°C)
Materials	Stainless Steel, Carbon Steel
