64394-031 Wall Bracket Install Kit - ORION Cellular LTE
ORI-UM-00025-EN-19
Outdoor Installation for Endpoint with In-line Connector

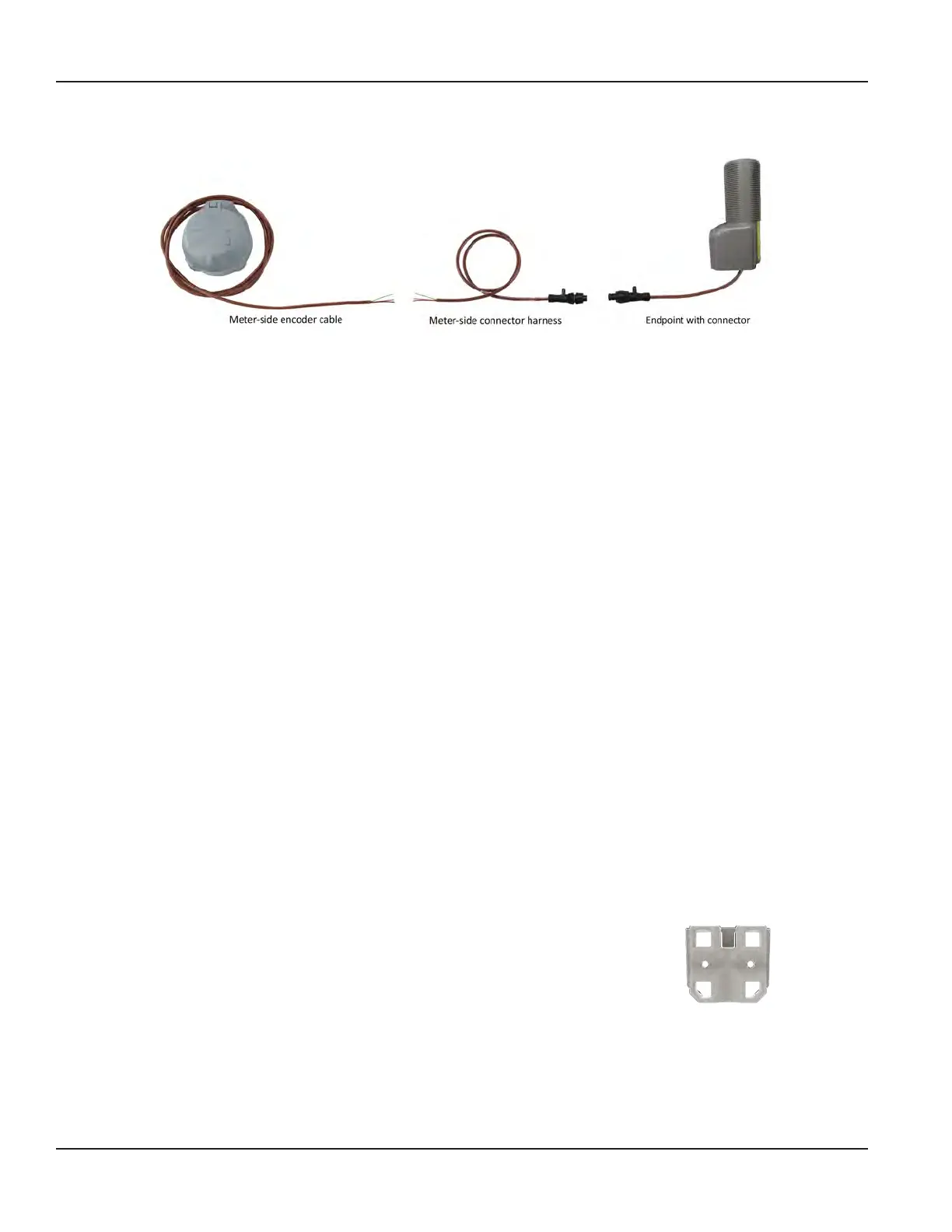

Figure 15: Outdoor endpoint installation
Meter-side connector harnesses are available with Twist Tight and Nicor connectors in the following lengths.
Harness with Twist Tight Connector Harness with Nicor Connector
Part Number Harness Lead Length Part Number Harness Lead Length
68307-006 10 ft harness 66488-006 10 ft harness
68307-003 25 ft harness 66488-003 25 ft harness
Follow these recommended installation steps for an outdoor endpoint installation and refer to the image in Figure 15.
OTE:N The Twist Tight connector is pictured above. The installation steps also apply to endpoints with Nicor and 308
connectors as well. See "In-line Connectors" on page 29 for more information.
1. Choose an appropriate outdoor location, within the limits of the connector harness, and mount the endpoint.
OTE:N If using a wall cover enclosure, see "64394-032 Wall Cover Install Kit" on page 14 for additional information
on mounting.
2. Join the endpoint connector with the connector mate of the encoder cable.
If you are using a wall cover enclosure, place the in-line connector inside the enclosure.
3. Drill a small hole in the wall of the house/structure to accommodate the endpoint/encoder cable.
4. Pass the cable end with the ying leads through the wall of the house.
5. Inside the house, connect the encoder wires. Depending on the encoder connection, use a eld splice kit or connect
the wires directly to the encoder terminal screws. See the appropriate wiring charts in this manual if you need help.
OTE:N Refer to the Field Splice Kit Application Data Sheet, available in the Resource Library at www.badgermeter.com, for
eld splice instructions.
When the meter, encoder and endpoint are installed and connected, installation is complete.
64394031 WALL BRACKET INSTALL KIT ORION CELLULAR LTE
Wall Bracket Kit PN: 64394-031 (Figure 16) is available for mounting an
ORION Cellular LTE-M or LTE endpoint.
For use with: ORION Cellular LTE-M, LTE endpoints only
The bracket clips into the slot on the endpoint and can be used to attach
the endpoint to a wall. A screwdriver and two (2) customer-supplied screws
are required. Drill pilot holes for the screws (recommended) before attaching the
wall bracket and endpoint.
The bracket can also be used to mount the endpoint to a pole with cable ties
(customer supplied) threaded through the bracket openings.
Figure 16: 64394-031
Page 16 February 2019
