64394-003 Pipe Install Kit
ORI-UM-00025-EN-19
64394003 PIPE INSTALL KIT

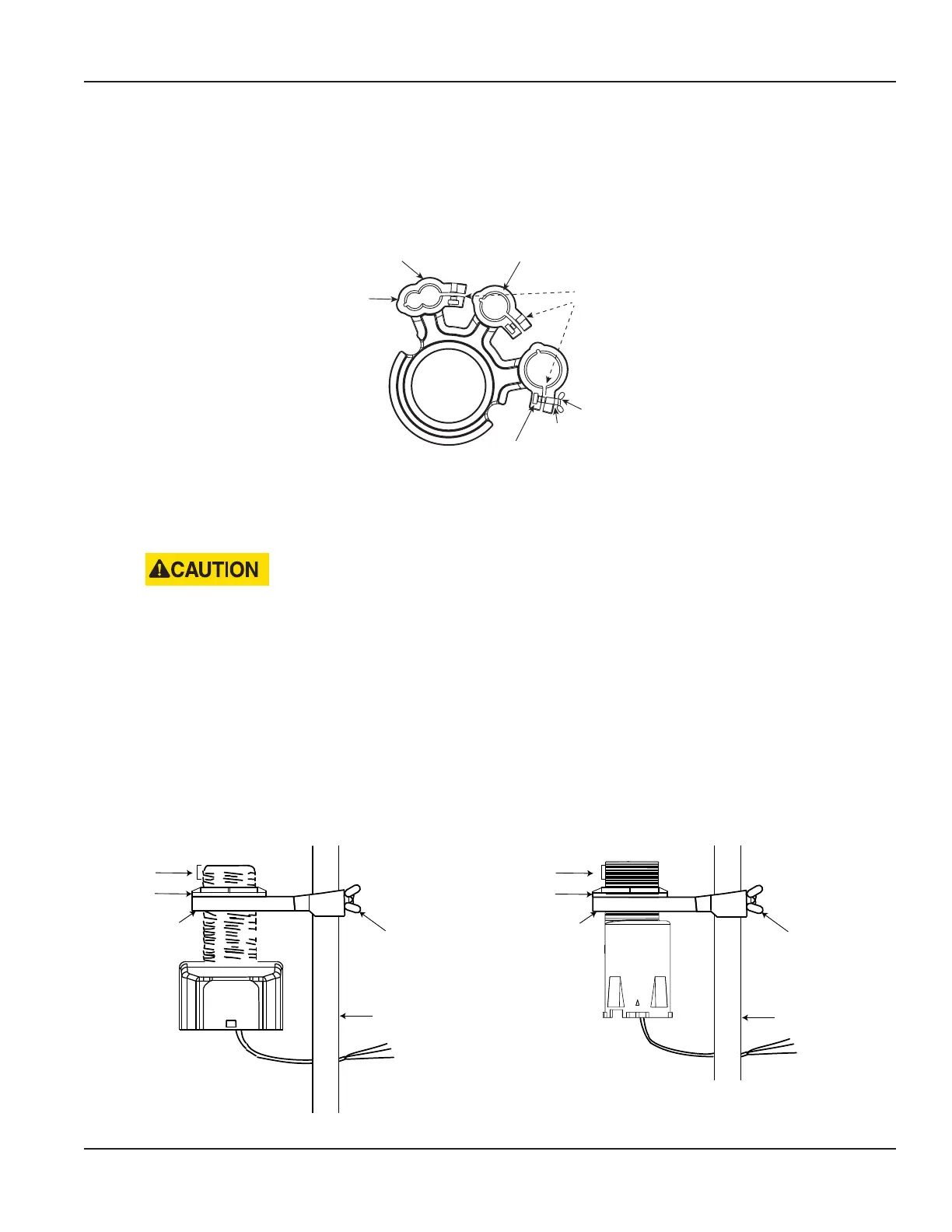

Pipe Install Kit (PN: 64394-003) with mounting support bracket (Figure 25) is designed for pipe installations on a 3/8, 5/8
and 1/2 inch rebar or 1/2 inch schedule 40 PVC pipe.
For use with: All ORION endpoints. For ORION Cellular endpoints, the kit can be used for indoor and remote installations, but
should NOT be used under a pit lid.
3/8 in. Rebar
1/2 in. Rebar
5/8 in. Rebar
1/2 in. schedule 40
PVC pipe
Hex head bolt
can be used in
any slot,
as needed
#6-32 wing nut
#6 washer
#6-32 x 3/4 hex head bolt
Figure 25: Support bracket (knuckles)
To install an ORION endpoint using the mounting support bracket, follow these steps.
1. Drive rebar or stake into the ground, or use a free-standing pipe or rebar.
DRIVE REBAR OR STAKE INTO THE GROUND PRIOR TO ATTACHING THE ENDPOINT TO AVOID DAMAGE.
2. Slide the mounting support bracket on the rebar/stake/pipe and secure using the enclosed washer, wing nut and hex
head bolt provided with the bracket. The hex head bolt ts in any slot.
OTE:N The bracket can be installed with either side up, but installing with the smooth side up is recommended if
installed outdoors to avoid potential rainwater build up.
3. Insert the threaded end of the endpoint up through the bottom of the bracket opening. Then thread the lock nut
onto the endpoint and tighten the lock nut to secure the bracket (Figure 26).
For pit installations, mount the endpoint a maximum of 1…2 inches (25…51 mm) below the pit lid. (NOT for ORION
Cellular endpoints!)
4. Install the bracket anywhere along the length of the endpoint threaded end, as long as it is at least 0.5 in. (13 mm)
below the top where the antenna is located. Installation is complete.
Pipe/Stake/Rebar
Lock Nut
Support Bracket
Wing Nut
Endpoint Antenna
Figure 26: Pipe installation kit with ORION Cellular LTE-M, LTE endpoints
Pipe/Stake/Rebar
Lock Nut
Support Bracket
Wing Nut
Endpoint Antenna
Figure 27: Pipe installation kit with ORION SE, ME, CE endpoints
