64394-030 Thru-the-Lid Install Kit
ORI-UM-00025-EN-19
Meter Ft-lb Meter Ft-lb
2-inch Turbo Series Meter
10.9 2-inch Compound Series Meter 16.7
3-inch Turbo Series Meter 37.5 3-inch Compound Series Meter 33.3
4-inch Turbo Series Meter 37.5 4-inch Compound Series Meter 33.3
6-inch Turbo Series Meter 37.5 6-inch Compound Series Meter 33.3
Heavy Duty Bypass M70 21.0
Heavy Duty Bypass M170 50.0
Installation is complete. Turn the water back on.
64394030 THRUTHELID INSTALL KIT
The ADA-compliant Thru-the-Lid Install Kit (PN: 64394-030) is designed for use with a NON-METAL PIT LID, 2 inches
(51 mm) maximum thickness, with a standard hole diameter of 1-7/8 inches (48 mm).
For use with: All ORION endpoints
To install an endpoint through a non-metal pit lid,
follow these steps and refer to Figure 34.
1. Screw the lock nut (large diameter side up)
onto the endpoint tube threads as shown.
2. Insert the endpoint tube through the
bottom of the pit lid.
3. Screw the top nut onto the endpoint
tube threads.
4. Tighten the lock nut and top nut to make
sure the endpoint is secure.
Installation is complete.

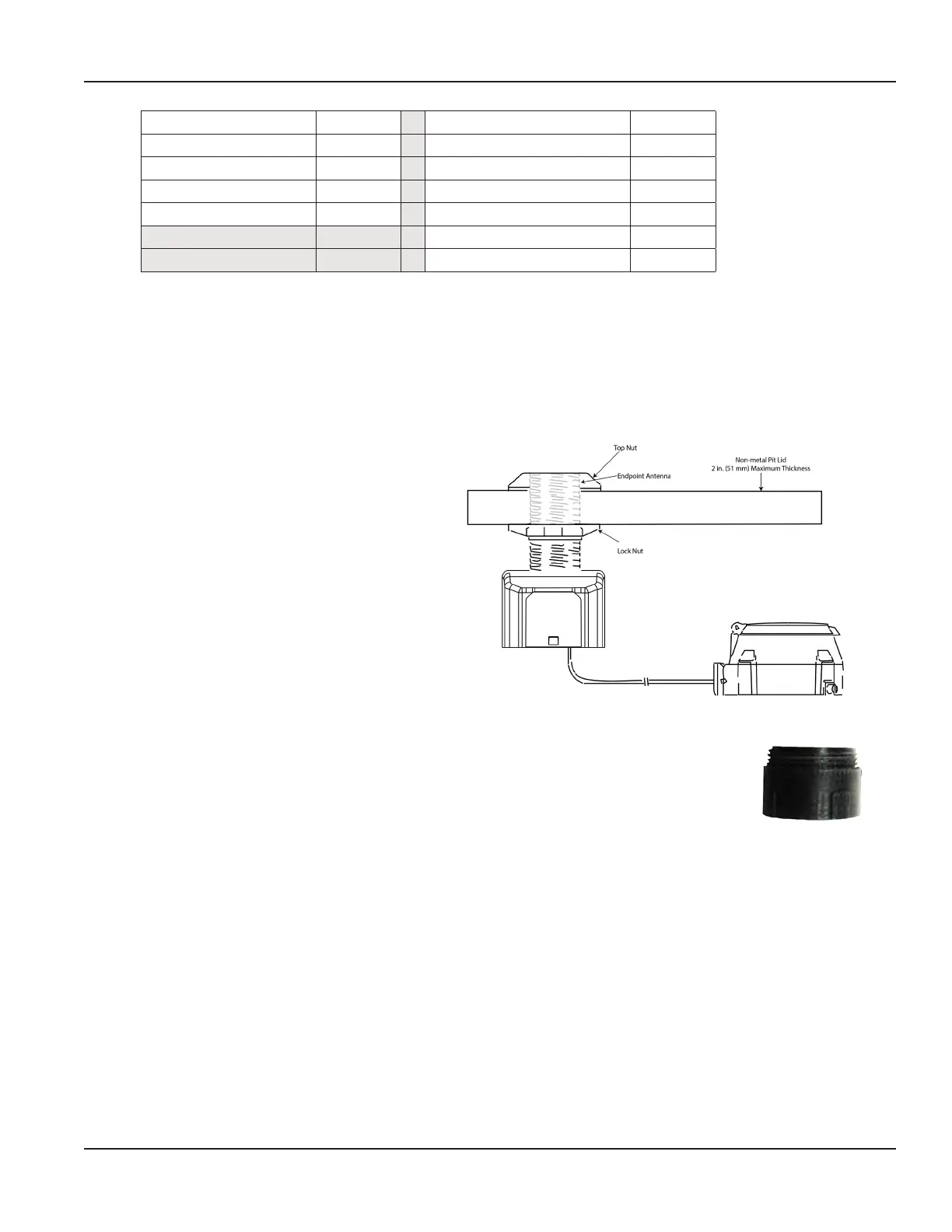

Figure 34: ORION LTE-M endpoint thru non-metal pit lid
OTE:N When installing an endpoint through a thick lid, you can use a Pit Tube
Extender (PN: 67025-001). The Extender requires a 2 inch (51 mm) diameter
hole. It screws onto the threaded portion of the endpoint. Radio frequency (RF)
performance may be reduced when using the Pit Tube Extender.
Do not use Pit Tube Extender with ORION Cellular endpoints.
Figure 35: Endpoint pit tube extender –
NOT for ORION Cellular endpoints
Page 21 February 2019
