Badger Meter ORION Cellular LTE-M User Manual

Identication
ORI-UM-00025-EN-19
IDENTIFICATION
Endpoints
The ORION water endpoint is a
three-wire metering device (Figure 1)
for indoor/outdoor use. Each endpoint
has a unique numeric serial number
on the tag attached to the cable
harness (wire) and etched on the
endpoint housing.
Endpoints require connection to an
encoder to complete the assembly.
Badger Meter encoders are shown in
Figure 4.
Cellular LTE-M
(charcoal gray)
Cellular LTE
(medium gray)
Fixed Network (SE),
Migratable (ME)
(medium gray)
Classic (CE)
(light gray)
Classic (CE)
(black)

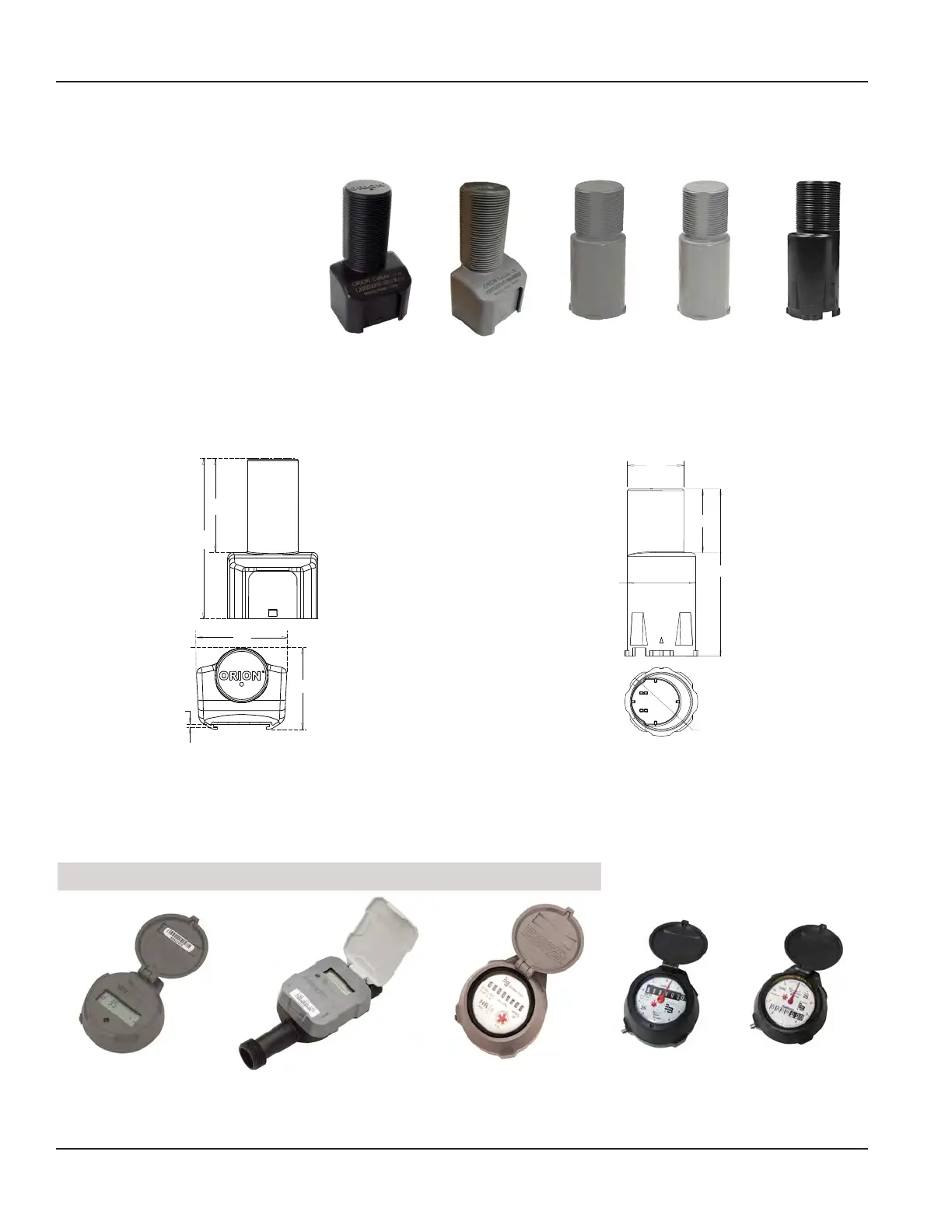

Figure 1: ORION endpoints
Endpoint Dimensions
3.00 in.
5.13 in.
1 3/4-12 THREAD
2.90 in.
(76 mm)
(130 mm)
(74 mm)
2.625 in.
(67 mm)
.090 in.
(2 mm)
Figure 2: ORION Cellular LTE-M, LTE endpoint dimensions
2.0 in.
(51 mm)
2.0 in.
51 mm
1.75 in.
(45 mm)
5.13 in.
130 mm
2.11 in.
54 mm
1 3/4-12 THREAD
Figure 3: ORION endpoint dimensions (all except ORION Cellular LTE-M, LTE)
Encoders/Register
The encoder connects to the endpoint to complete the assembly. Each Badger Meter encoder is identified on the face of the
register with an assembly number, unit of measure and meter model. Current and legacy products are shown in Figure 4.
Current Products Legacy Products
High Resolution LCD Encoder
(HR-E® LCD)
E-Series® Ultrasonic Meter with High
Resolution LCD Encoder
High Resolution 8-Dial Encoder
(HR-E®)
Absolute Digital Encoder
(ADE®)
Recordall® Transmitter
Register (RTR®)
Figure 4: Encoders and register
Page 4 February 2019
