64394-023 Commercial Meter Mounting Bracket Install Kit
ORI-UM-00025-EN-19
64394023 COMMERCIAL METER MOUNTING BRACKET INSTALL KIT
Commercial Meter Mounting Bracket Install Kit (PN: 64394-023) is designed for use with most Badger Meter Turbo,
Compound Series and Fire Service Disc bypass meter lines. Use the kit to securely mount an ORION endpoint to a meter.
For use with: All ORION endpoints
You will need a torque wrench set for installation. The
kit components are:
• Stainless steel mounting bracket PN: 66360-001
• Lock nut PN: 62825-001
To install the bracket, follow these steps:

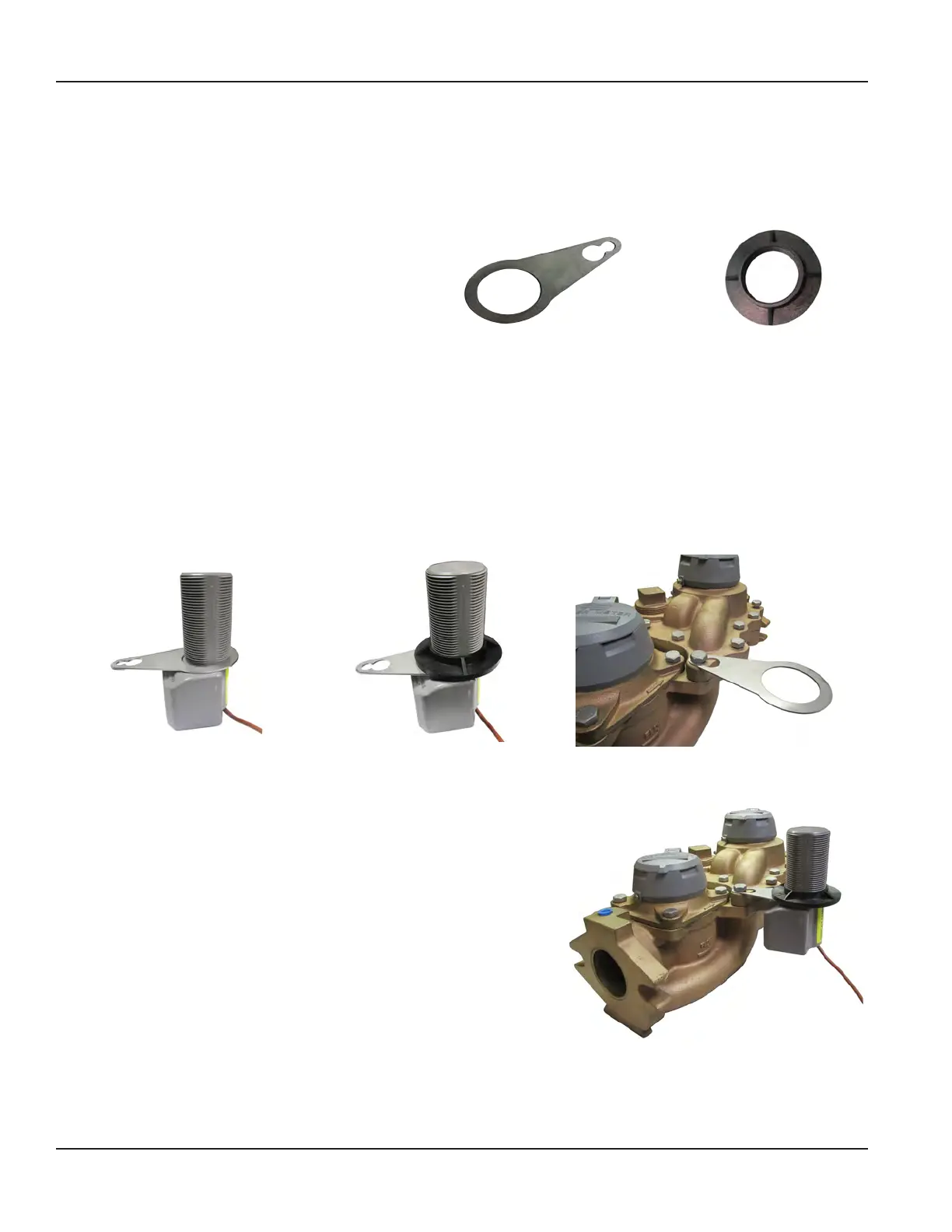

Figure 28: Stainless steel mounting bracket
Figure 29: Lock nut with gussets
1. Verify that the water is turned o.
2. Slip the mounting bracket over the top of the ORION endpoint, as shown.
3. Screw the lock nut from the kit onto the threaded section of the endpoint. Hand tighten the lock nut to secure
the bracket.
4. At the meter, unscrew the head assembly bolt at the location where you plan to mount the endpoint.
5. Position the bracket, reinsert the bolt and hand tighten it.
OTE:N For visual clarity, the photo in Figure 32 shows the bracket without the endpoint attached.
Figure 30: Mounting bracket over endpoint
Figure 31: Tighten lock nut
Figure 32: Bracket attached with bolt
6. Position the bracket so the endpoint is as far from the meter as
possible to provide adequate space for the endpoint signal to
propagate (Figure 33).
MPORTANTI
If two ORION endpoints are required for a fire series assembly or a
compound meter application, mount the endpoints on OPPOSITE sides
of the meter head assembly.
7. With the torque wrench, tighten the bolt as indicated in the
chart that follows.
Figure 33: Endpoint connected to meter with bracket
Page 20 February 2019
