ORION Fixed Network and Migratable Endpoints
ORI-UM-00025-EN-19
ORION FIXED NETWORK AND MIGRATABLE ENDPOINTS
This section includes configuration, encoder compatibility and installation
information for ORION Fixed Network (SE) and ORION Migratable (ME) endpoints.
The serial number is engraved on the endpoint body. Serial numbers range from
30000000 to 59999999.
Endpoint Congurations
The following configuration options are available.

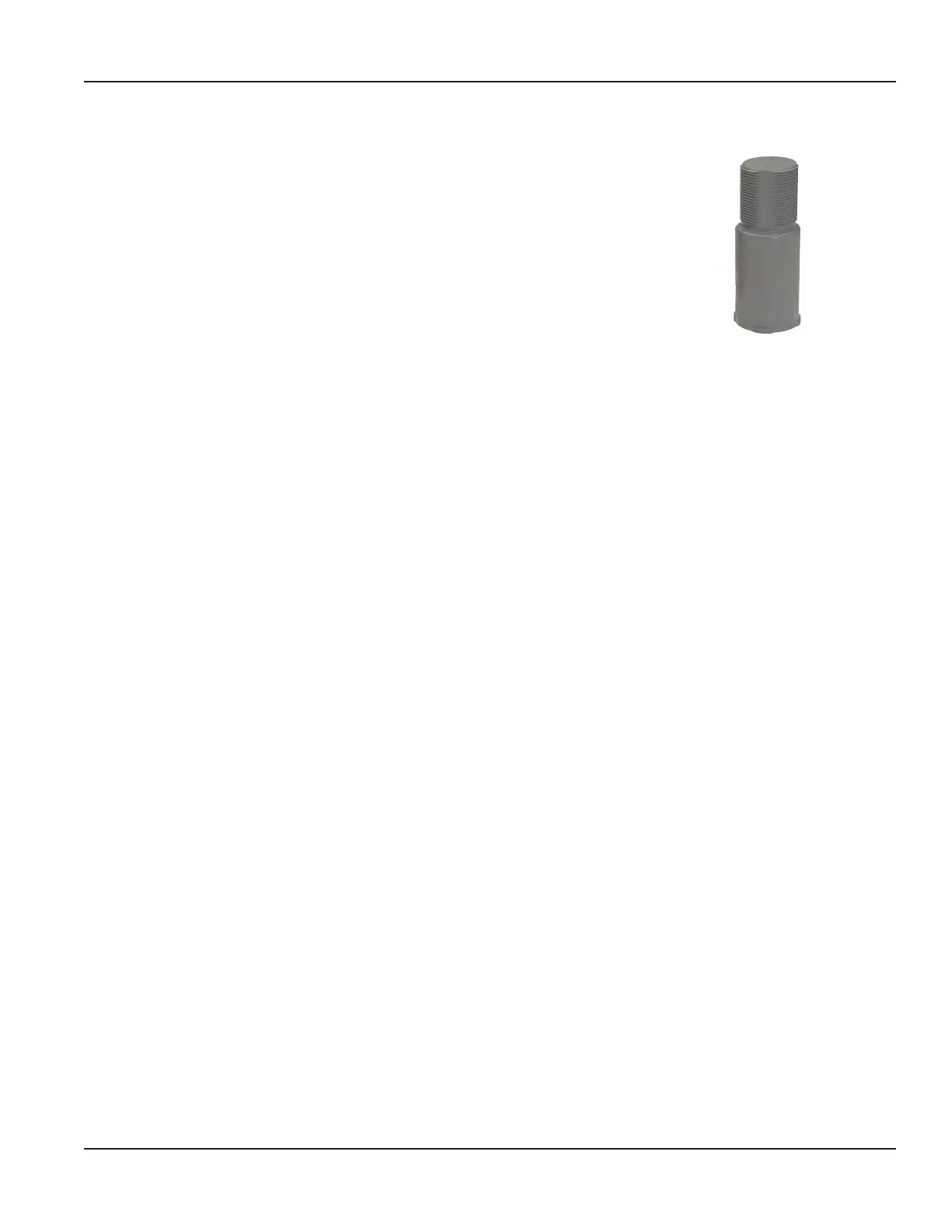

Figure 6: ORION Fixed Network (SE) and
ORION Migratable (ME) endpoint
Endpoint Configurations Encoder Connection
Endpoint only with in-line connector
(Twist Tight, Nicor, 308)
Connect the endpoint to an encoder using the in-line connector.
See "In-line Connectors" on page 29.
Endpoint only with flying lead for field splice See Field Wiring, Encoder Connectivity and Read Resolution
below.
Endpoint/encoder assembly with
in-line connector
Endpoint/encoder assemblies (endpoints connected by an in-line connector to a
Badger Meter encoder) are shipped from the factory, ready for installation.
Prewired integral endpoint/encoder assembly
Mount the assembly on the bayonet of the meter. See "Integral Endpoint Installation" on
page 23 for details.
Field Wiring, Encoder Connectivity and Read Resolution
ORION SE and ME endpoints with flying leads are shipped from the factory pre-programmed. Connect all three wires to an
encoder to complete installation. The endpoint connection can be made to existing wires from the encoder or directly to the
encoder terminal screws, depending on the application and manufacturer. Endpoints can be connected to Badger Meter high
resolution encoders and E-Series Ultrasonic meters as well as a number of competitive encoders.
See the wiring chart on the next page.
OTE:N For instructions on field wiring using gel connectors, see "Using Gel Caps to Connect an Encoder" on page 31. Follow
the manufacturer’s instructions provided with the gel cap/field splice kit you are using.
Page 7 February 2019
