Using Gel Caps to Connect an Encoder
ORI-UM-00025-EN-19
308 Connector
To use the 308 connector, follow these steps and refer to Figure 55.
1. Squeeze the notched area and pull to remove the cap(s).
2. Align the notches inside each connector and push the ends together. You
will hear a “click“ when the connector ends are firmly seated and secure.

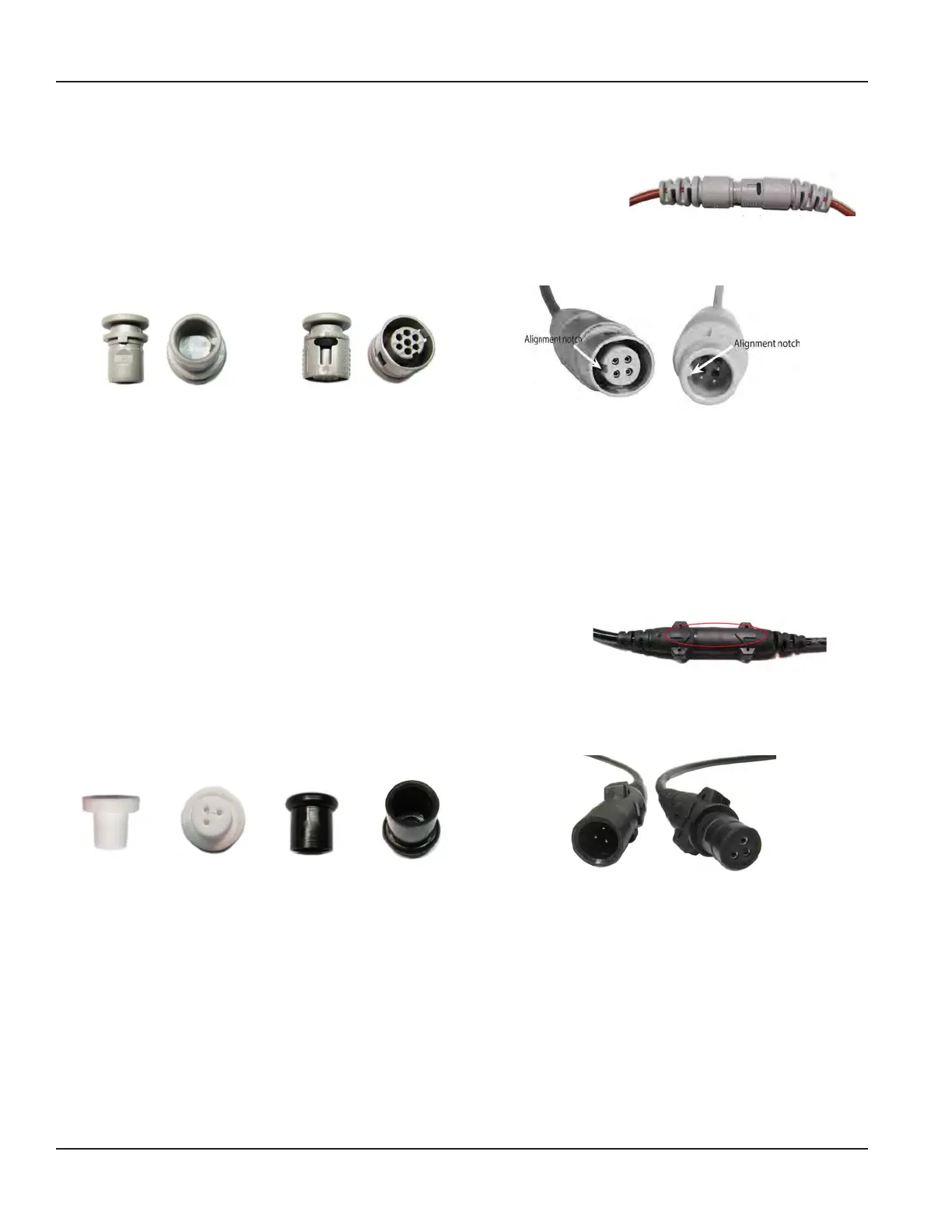

Figure 54: 308 in-line connector
Protective cap endpoint-side
PN: 66233-005
Protective cap encoder-side
PN: 66233-006
Endpoint-side Encoder-side
Figure 55: 308 connector ends and caps - close up view
OTE:N For additional information, refer to the 308 In-line Connector Assembly Application Data Sheet, available in the
Resource Library at www.badgermeter.com.
Nicor Connector
To use the Nicor connector, follow these steps and refer to Figure 57.
1. Pull the cap(s) straight o to remove.
2. Locate the arrow on each connector.
With the arrows pointed toward each other, push the ends
together until the encoder-side connector is fully seated into the
endpoint-side connector. There should be no visible gap.
Figure 56: Nicor in-line connector
Dust cap endpoint-side
PN: 66488-014
Dust cap encoder-side
PN: 66488-004
Endpoint-side Encoder-side
Figure 57: Nicor connector ends and caps - close up view
Nicor Extension Harness
An extension harness connects in-line between the meter- and endpoint-side connectors. An extension harness in this lead
length is available with the Nicor connector.
Part Number Extension Harness Length
66488-024 10 ft extension
Page 30 February 2019
