DEALER MANUAL MAX DRIVE SYSTEM

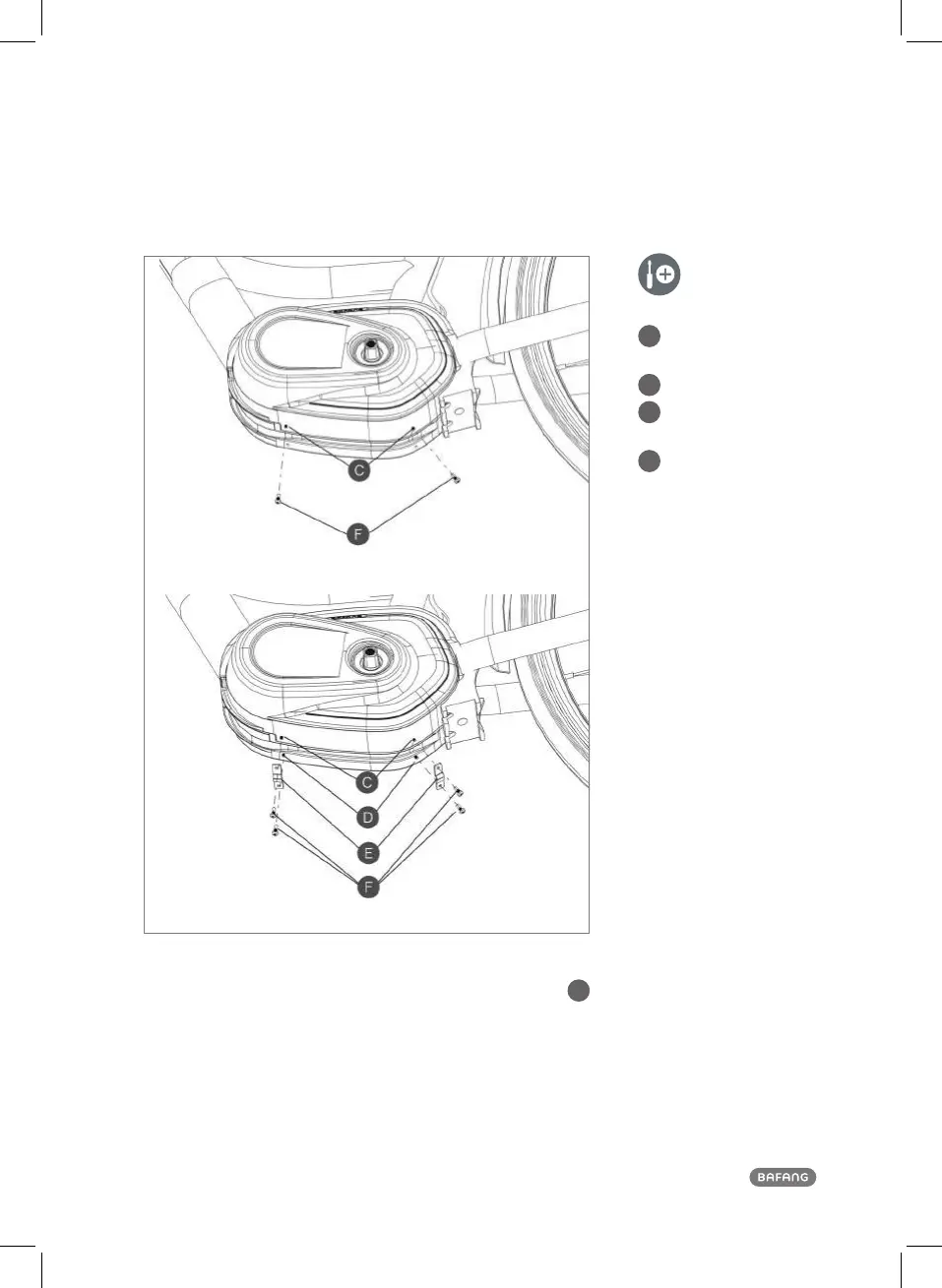

Figure 1
Figure 2
C
screw holes on the drive
unit’s cover
D
end cover on the right
E
cable gatherer
1401150100005
F
cross head screw assem-
bly M3×8
1401020000127
Make sure that the cover is securely clicked into place. Screw the cover tightly onto the drive unit (see Figure 1).
If brake cables and gear cables are to be routed under the drive unit, bind
E
together with a cable gatherer,
see Figure 2).
Tightening torque: 1 Nm
